CRL 90Β° Hold-Open Concealed Overhead Closer, Medium Duty S-Side-Load
CRL 90Β° Hold-Open Concealed Overhead Closer, Medium Duty S-Side-Load
Regular price
$194.55 CAD
Regular price
Sale price
$194.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8160S
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Case Quantity
6
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
90Β°
Includes
CRL7160, CRL8010FS, CRL8010S, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
Package Type
Side Load S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8760S
Spindle
1/2
Spring Size
Medium
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- For doors with 1/2" (13 mm) top rail depth
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- Includes all necessary parts
- 5 Year Limited Warranty
- UL Listed

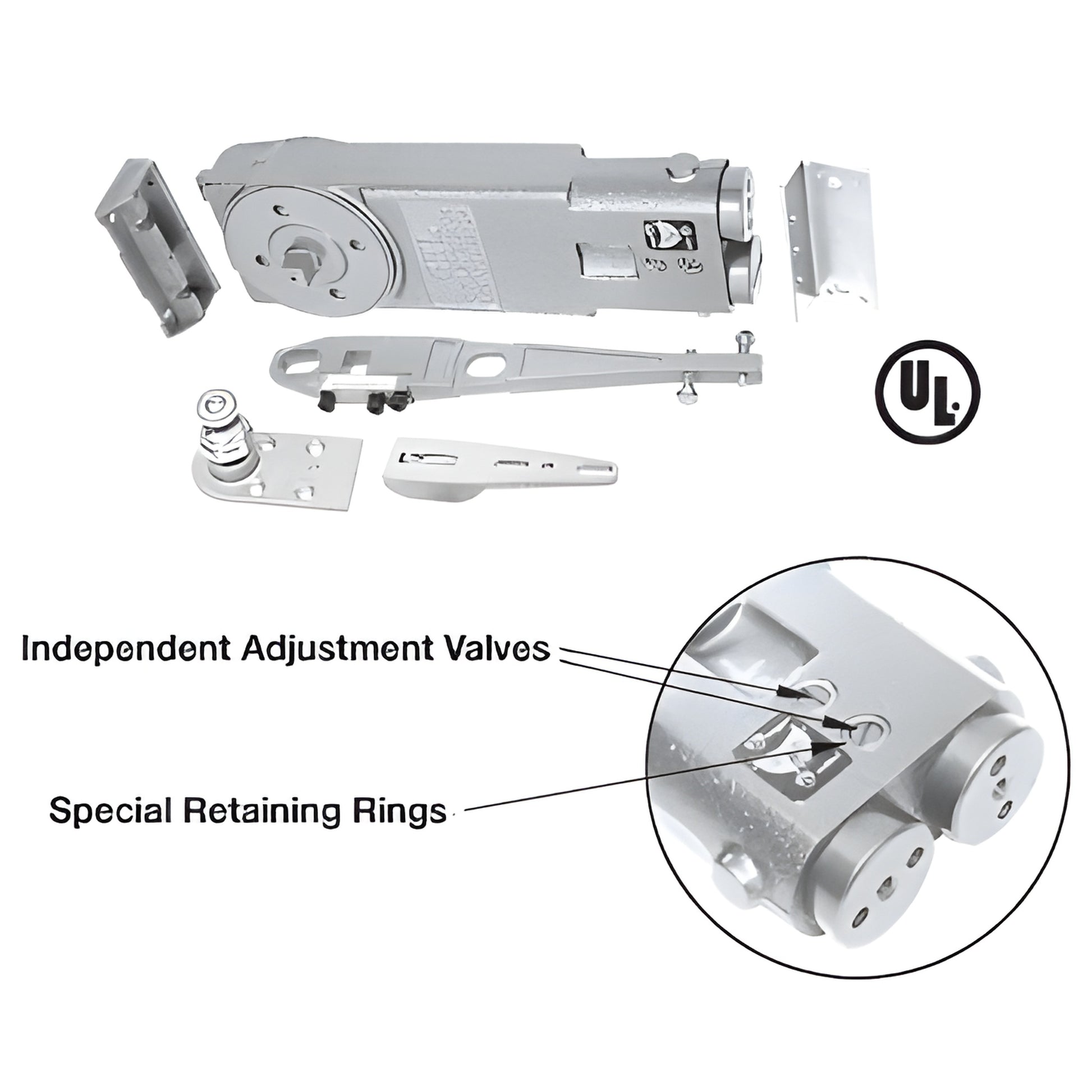

These CRL Overhead Door Closer Kits (SKU: CRL8160S) include a medium spring size door closer, mounting clips, a Type S side-load arm, and your choice of a DP-adjustable dual-purpose bottom pivot set or GE bottom pivot set. The closer features independent, dual-action valves for precise control of both closing and latching speeds. Available in both 90Β° and 105Β° hold-open or no hold-open models, the closer body fits standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Additional spring sizes, hardware options, mounting clips, and overhead concealed door closer accessories are also available.
Independent Adjustment Valves
Non-critical valve control allows separate adjustment of closing speed and latching speed for consistent performance and ADA-compliant door operation.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed out of the door closer body, improving durability and on-site serviceability.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of maximum allowable door swing.
Product Warning:
This closer is not to be used for doors weighing in excess of 200 lbs.
