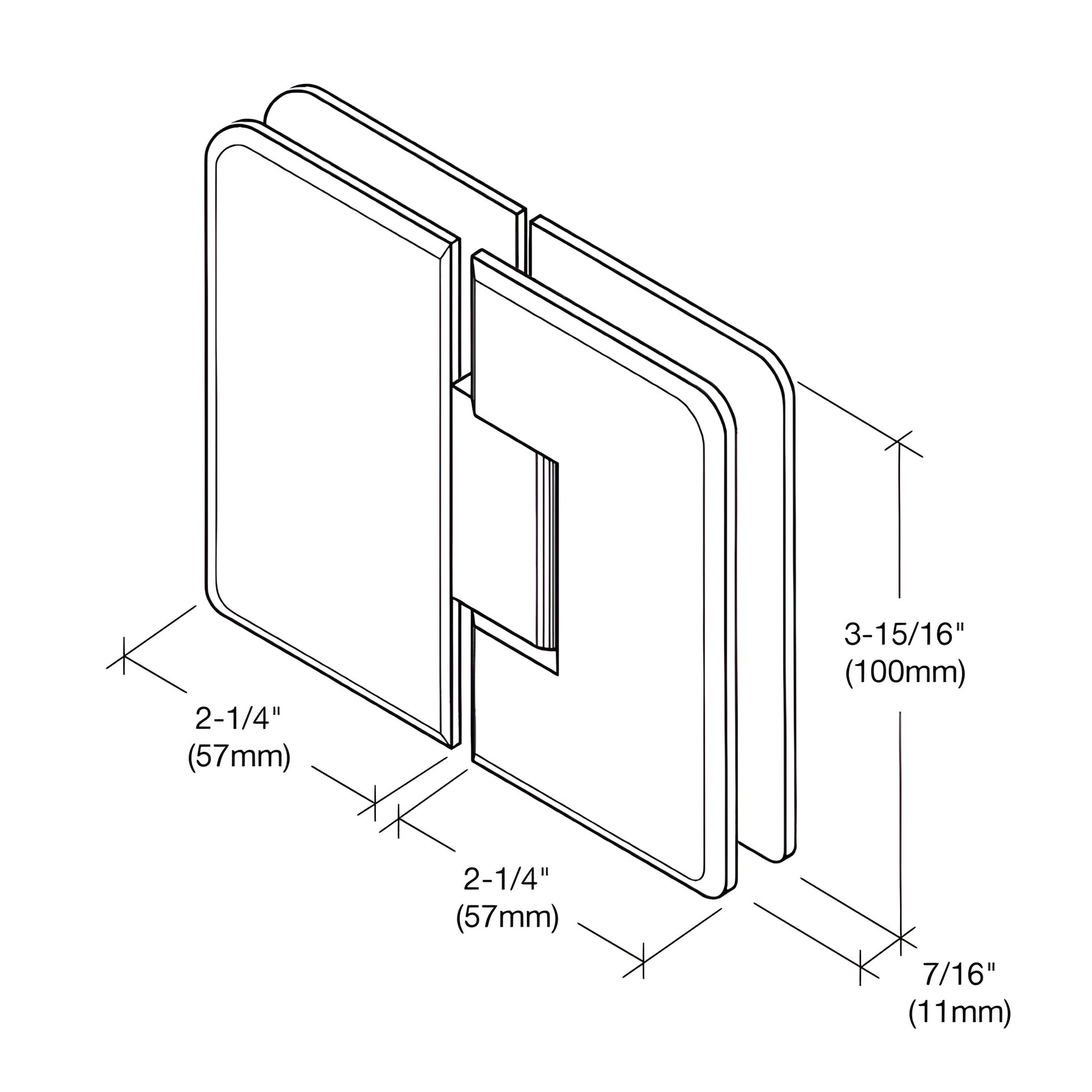

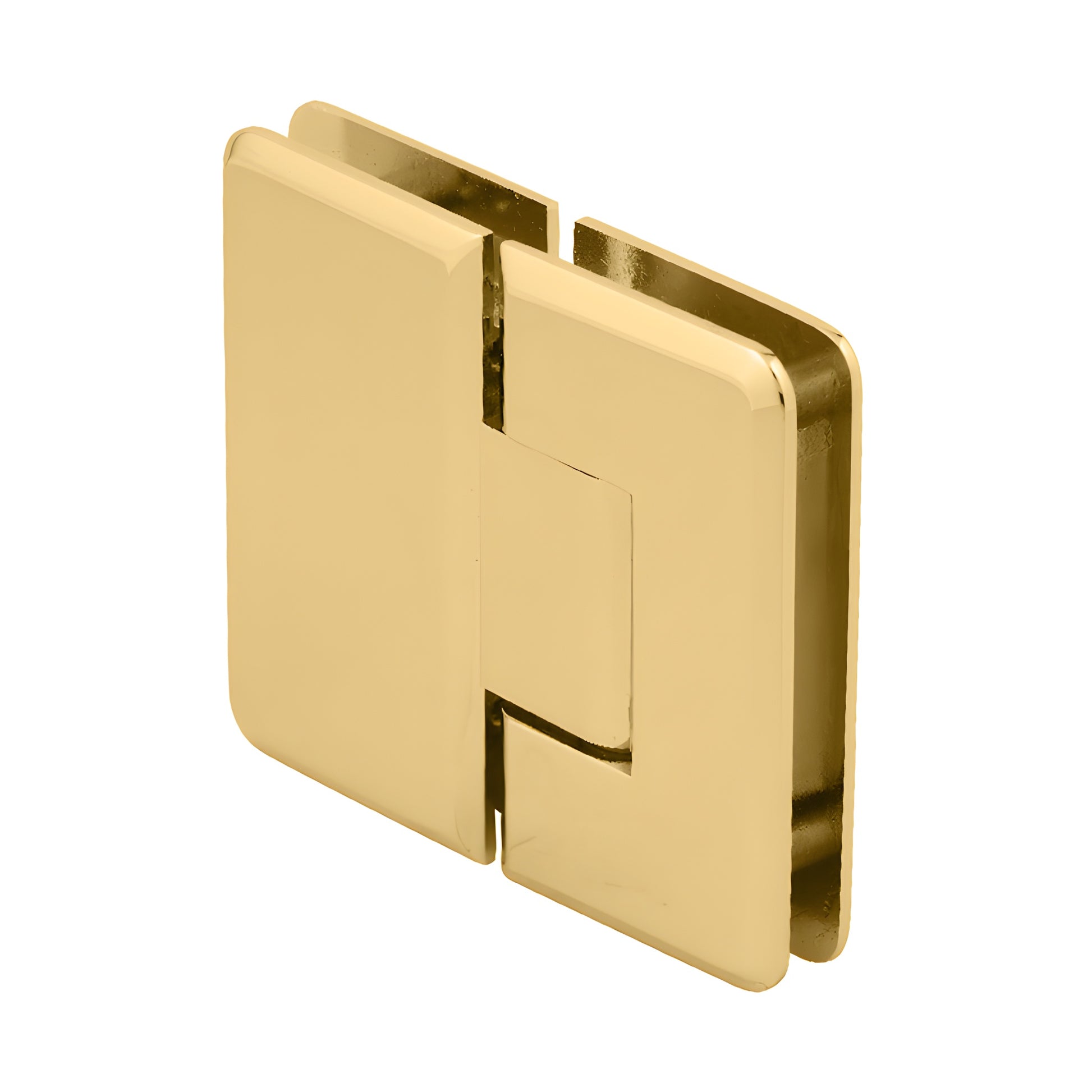

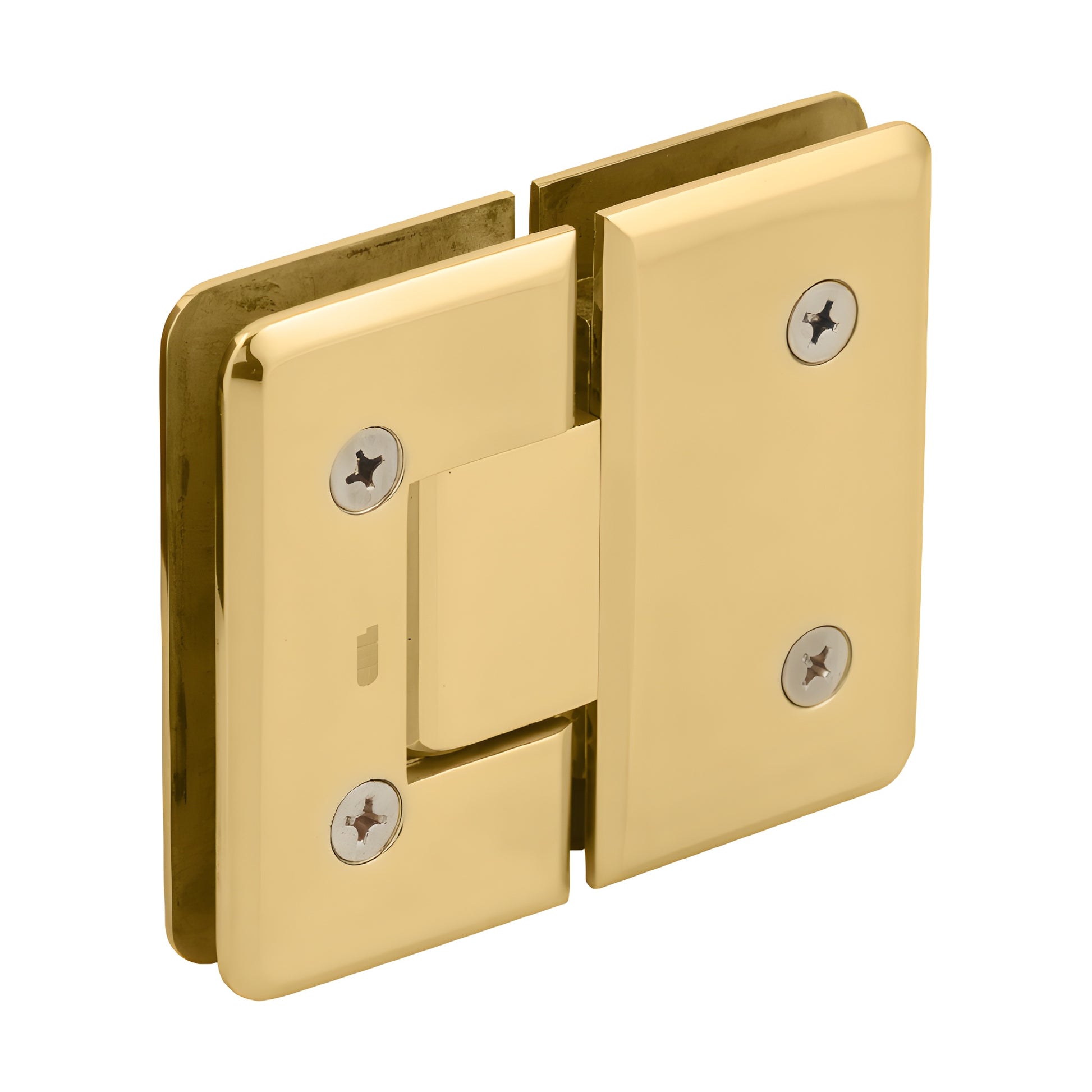

CRL Cologne 180 Series Polished Brass Glass-to-Glass 180° Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes (including custom finishes on request)
• 180º glass-to-glass hinge for frameless shower doors
• Use with monolithic tempered safety glass

CRL Cologne Hinges combine radius corners and beveled edges for a sleek brass shower door hinge appearance that stands out from standard Vienna-style hinges. Designed for wider, heavier frameless shower doors, Cologne Hinges use two internal steel pins to give installers template options: leave pins in for CRL "mouse-ears" cut-outs, or remove pins for increased adjustability and compatibility with rectangular, square-corner cut-outs (including some competitive patterns).

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side active; Pre-Set models ship at 85º for a 5º tighter closure into the shower interior. Rotate (do not flip) the pin to select the angle.

CUSTOM PIVOT PIN: Custom pivot pins (up to 45º) are available for off-angle walls when the standard 5º adjustment is insufficient.

LOAD CAPACITY:
Two hinges: Holds up to 110 lbs. (50 kg) using 3/8"–1/2" (10–12 mm) glass. Maximum door width: 36" (914 mm).

Three hinges: Holds up to 140 lbs. (63 kg) using 3/8"–1/2" (10–12 mm) glass. Maximum door width: 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass—durable, premium shower hinge material
Hinge Swings: 90º in and 90º out (self-centering when within 15º of closed)
Cut-Out Required: Except C0L092 (requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available—contact CRL Technical Sales Department to request plated or specialty finishes.

Product Warning:

CRL shower door hinges are intended for residential and hotel shower use only. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—CRL
