CRL Polished SS 1/2" Glass 6in Square Door Rail - No Lock, Custom

• Custom length door rail for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian, European patents)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

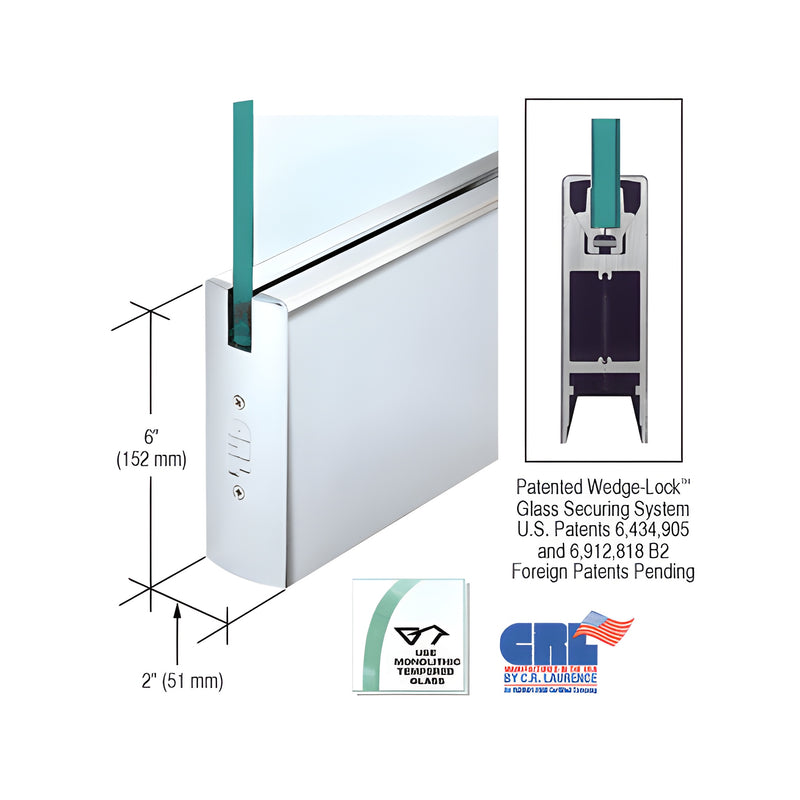

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System uses the exclusive Wedge-Lock® Securing System to clamp the glass from the bottom with two aluminum retaining extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions engage an angled groove in the rail and force the retaining extrusions together. Combined with the door retaining gasket, the 9" (228.6 mm) corner rail creates more than 900 lbs. of clamping force (approximately 100 lbs. per inch); full-length rails generate proportionally greater holding force. This design delivers a secure glass attachment plus exceptionally fast installation for contractors and glazing professionals.

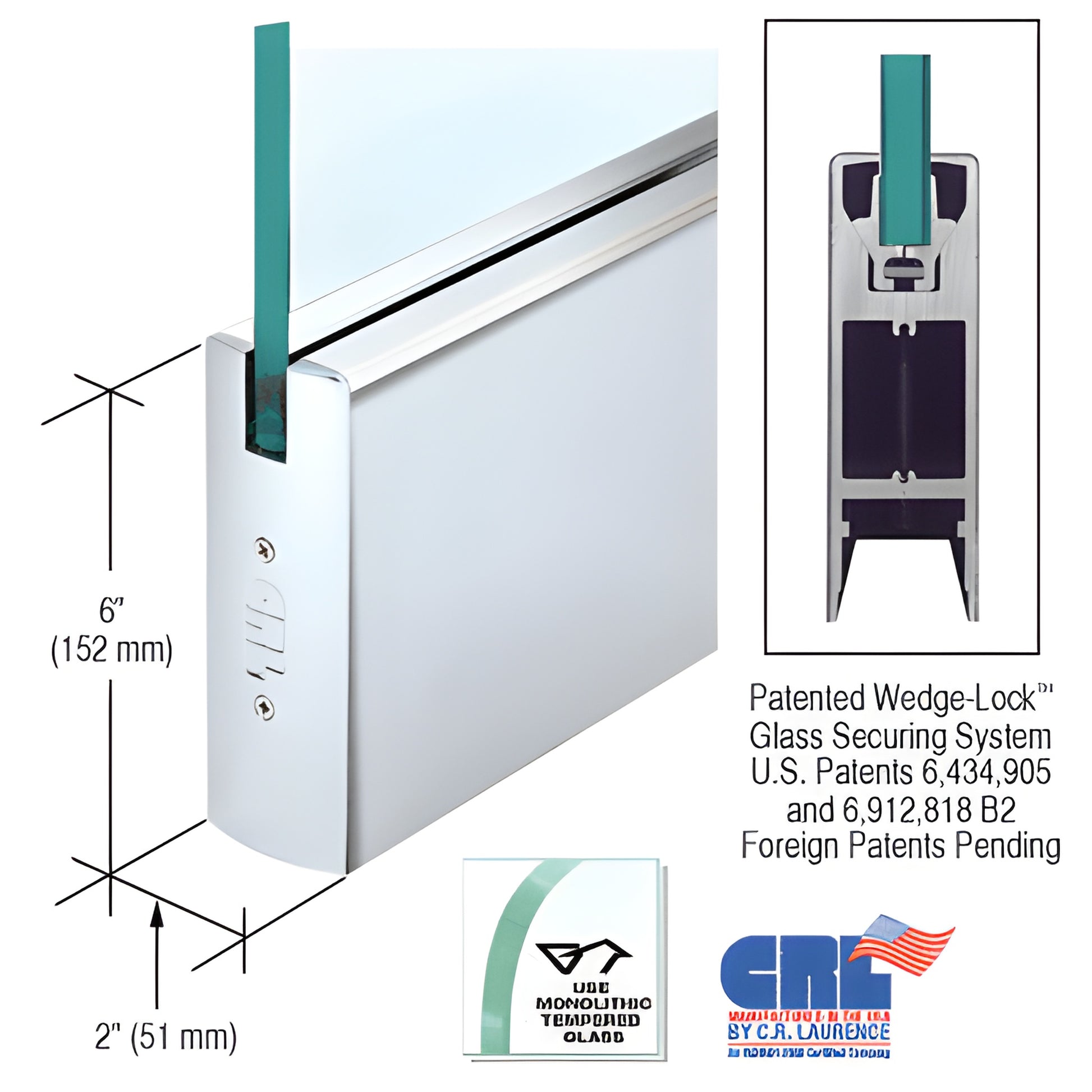

NOTE: Actual product height: 6" (152 mm).

CRL Wedge-Lock® Door Rails ship completely fabricated and ready-to-install with end caps installed. After rail installation, attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide. The adjustable door alignment system lets you shift the door 1/8" (3.2 mm) toward or away from the jamb without removing the door—standard on both top and bottom rails.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts adjust the slide 1/8" (3.2 mm) in or out. The low-profile adjustable slide allows pivots with slotted grooves to be positioned off the American Standard Setback of 2-3/4" (69.8 mm), enabling fabrication for vertically out-of-square openings.

Other advantages of the CRL Wedge-Lock® Door Rail System: available for 3/8" or 1/2" (10 or 12 mm) glass; rigid single-component housing that resists shifting over time; internal components remain in place during installation; glass securing pads designed for longevity in extreme environments.

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

Wedge-Lock® Door Rails come in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware
