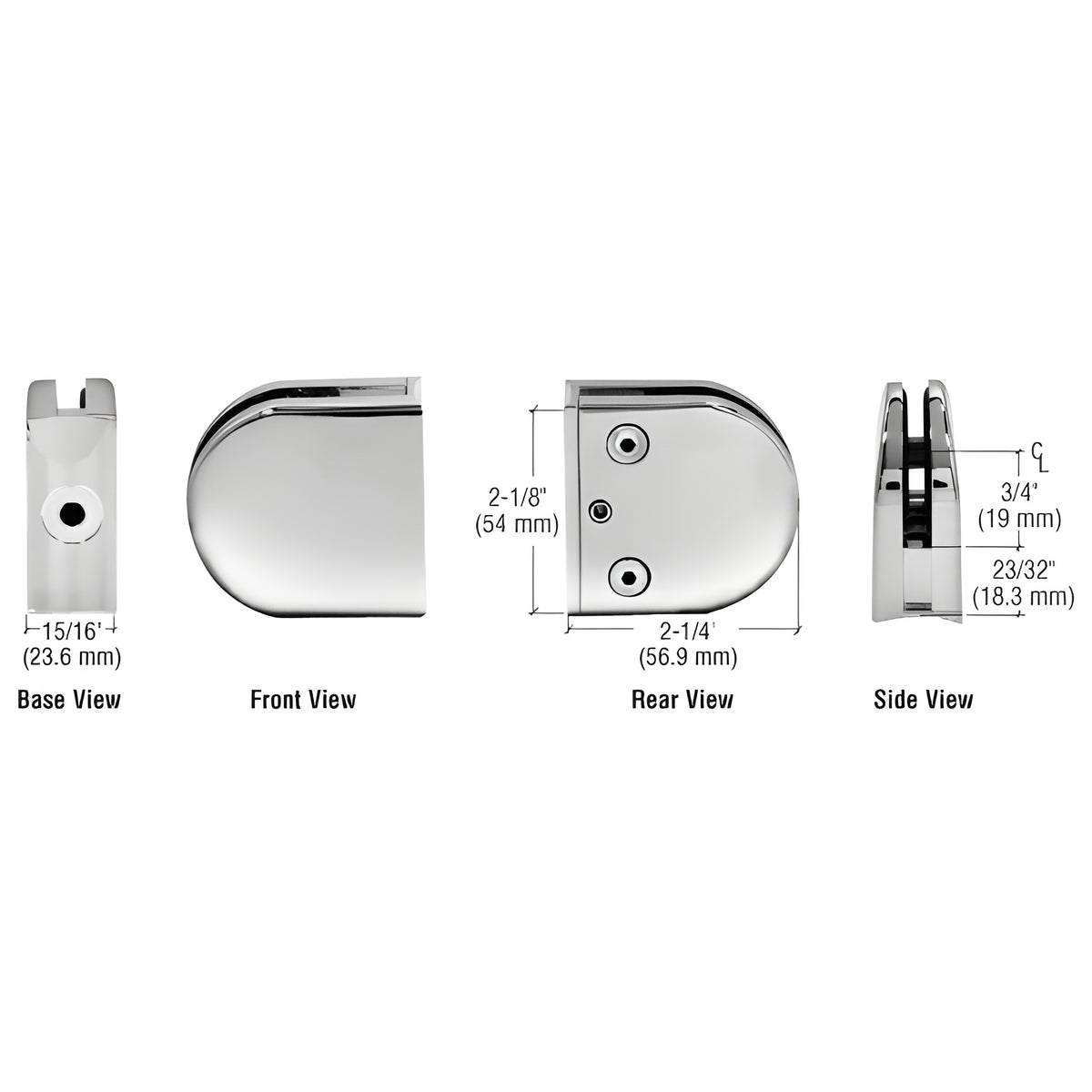

CRL Polished Stainless Z-Series Round Type 2" Radius Base Stainless Steel Clamp for 1/4" and 5/16" Glass
Item # Z306PS
$46.11
CAD
Finish (8)
-
Brushed Nickel -
Polished Brass -
Chrome -
Gold Plated -
Satin Chrome -
White -
Brushed Stainless Steel -
Polished Stainless Steel
Profile (2)
- Round
- Square
Base Type (2)
- Flat
- Radius
Overview

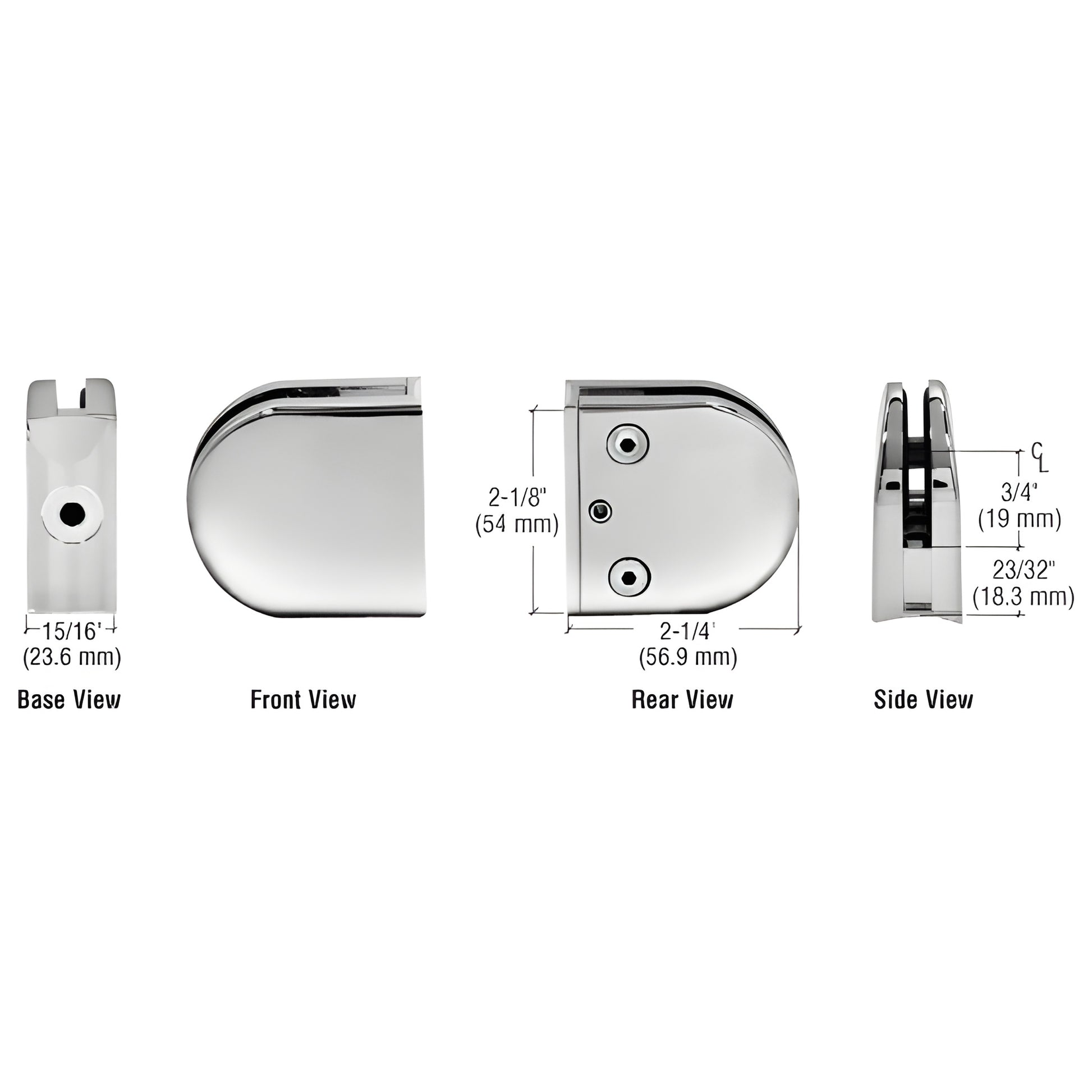

| SKU | Z306PS |
|---|---|
| Sold As | 1 Each |
| Base Type | Radius |
| Depth | 15/16 in. (24 mm) |
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 1/4 in. To 5/16 in. (6 mm To 8 mm) |
| Height | 2-1/4 in. (57 mm) |
| Material | Stainless Steel |
| Profile | Round |
| Width | 2-1/8 in. (54 mm) |
Description
- For 1/4" and 5/16" (6 and 8 mm) Glass
- Use on Mezzanines, Partitions, Railings and Windbreaks
- Use Monolithic Tempered Glass
- Steel Pin Available for Additional Glass Support
- Custom Painted Finishes Available Upon Request
Our CRL Z-Series Round Type Radius Base Glass Clamps are designed to be used on glass thickness of 1/4" to 1/2" (6 to 12 mm), and are available in either zinc or stainless steel. The clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For securing the Z-Clamp to thin wall tubing (less than 1/8”), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32” (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16” Mandrel and Nosepiece.
NOTE: 1/2" (12 mm) notch is required using the steel pin (included with the clamp) for additional glass support. Replacement gaskets are available by ordering CRL Cat. No. Z14RG.
SPECIFICATIONS:
Glass Thicknesses: Model for 1/4" to 5/16" (6 to 8 mm)
Base Design: Radius Back
For Use With: 2" (50.8 mm) Diameter Round Tubing.
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication: 1/2" (12 mm) notch required if using provided steel pin for glass support. Please click on Technical Details above for glass fabrication template.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet.
Replacement Hardware : CRL ZCS5X15SS for Replacement Screws
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
