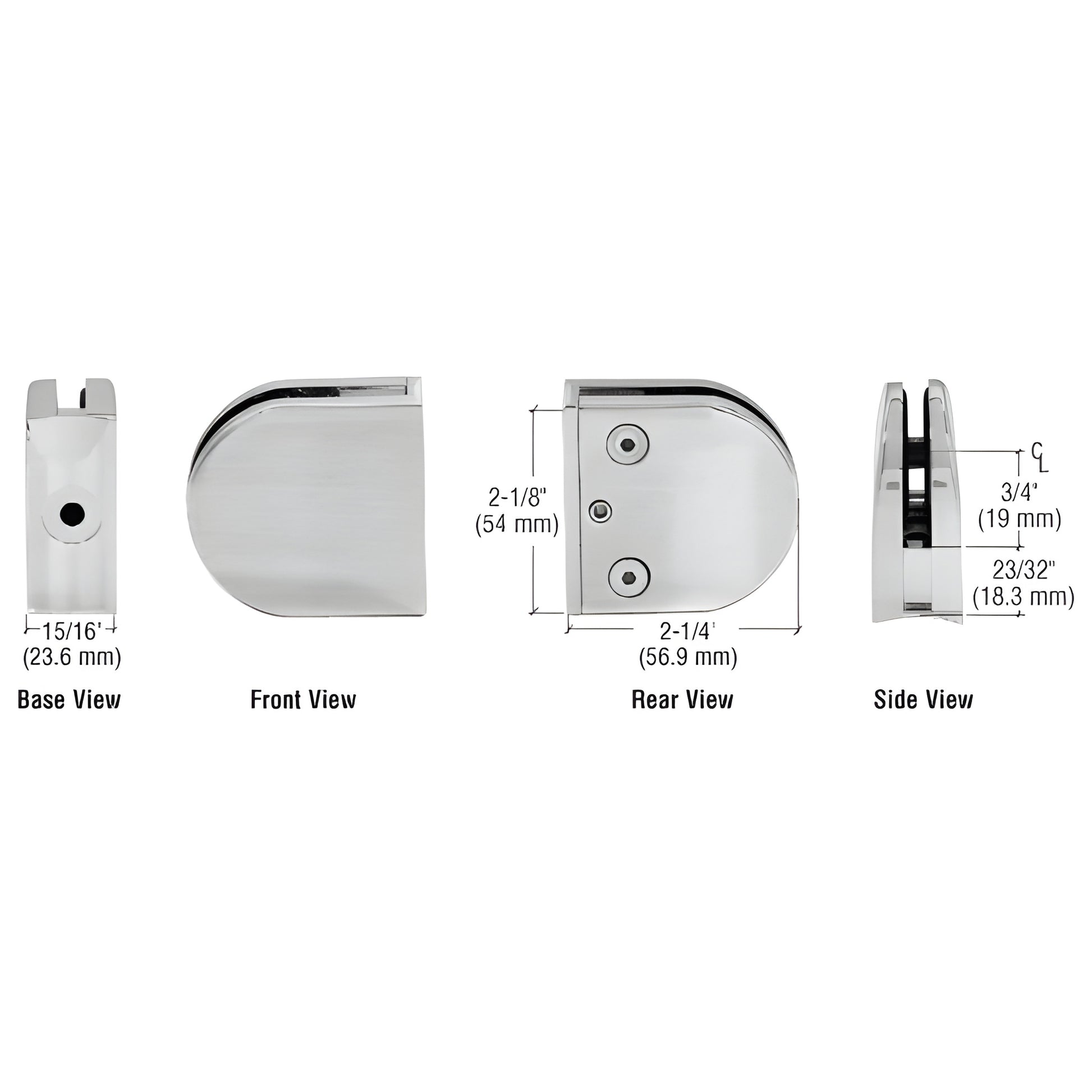

CRL Z-Series Brushed Stainless Glass Clamp 2in Radius Fits 1/4"/5/16"

• For 1/4" and 5/16" (6 and 8 mm) glass
• Use on mezzanines, partitions, railings and windbreaks
• Use monolithic tempered glass
• Steel pin available for additional glass support
• Custom painted finishes available upon request

Our CRL Z-Series Round Type Radius Base Glass Clamps (SKU: Z306BS) are engineered for 1/4" to 1/2" (6 to 12 mm) glass and fit 2" (50.8 mm) diameter round tubing. Available in zinc or stainless steel, these radius-back glass clamps are ideal for partitions, railings, mezzanines and exterior windbreaks where a low-profile, durable round clamp for glass panels is required.

For securing the Z-clamp to thin-wall tubing (less than 1/8”), use CRL’s ZB0LT socket head cap bolt and ZRNUT rivet-nut. Drill a 17/32” (13.5 mm) hole, then install the rivet-nut using the 34604 heavy-duty thread insert tool with 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) notch is required when using the included steel pin for added glass support. Replacement gaskets: CRL Cat. No. Z14RG.

SPECIFICATIONS:
Glass Thicknesses: Model for 1/4" to 5/16" (6 to 8 mm)
Base Design: Radius back
For Use With: 2" (50.8 mm) diameter round tubing
Material: Zinc or stainless steel. Stainless steel or powder-painted zinc recommended for exterior durability
Glass Fabrication: 1/2" (12 mm) notch required if using provided steel pin for support. See Technical Details for glass fabrication template.
Includes: Rubber gaskets and steel pin (optional use) with grommet
Replacement Hardware: CRL ZCS5X15SS replacement screws

Product Warning:

For interior and exterior applications, CRL recommends pinning each glass panel when the bottom edge is not supported to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.
