CRL

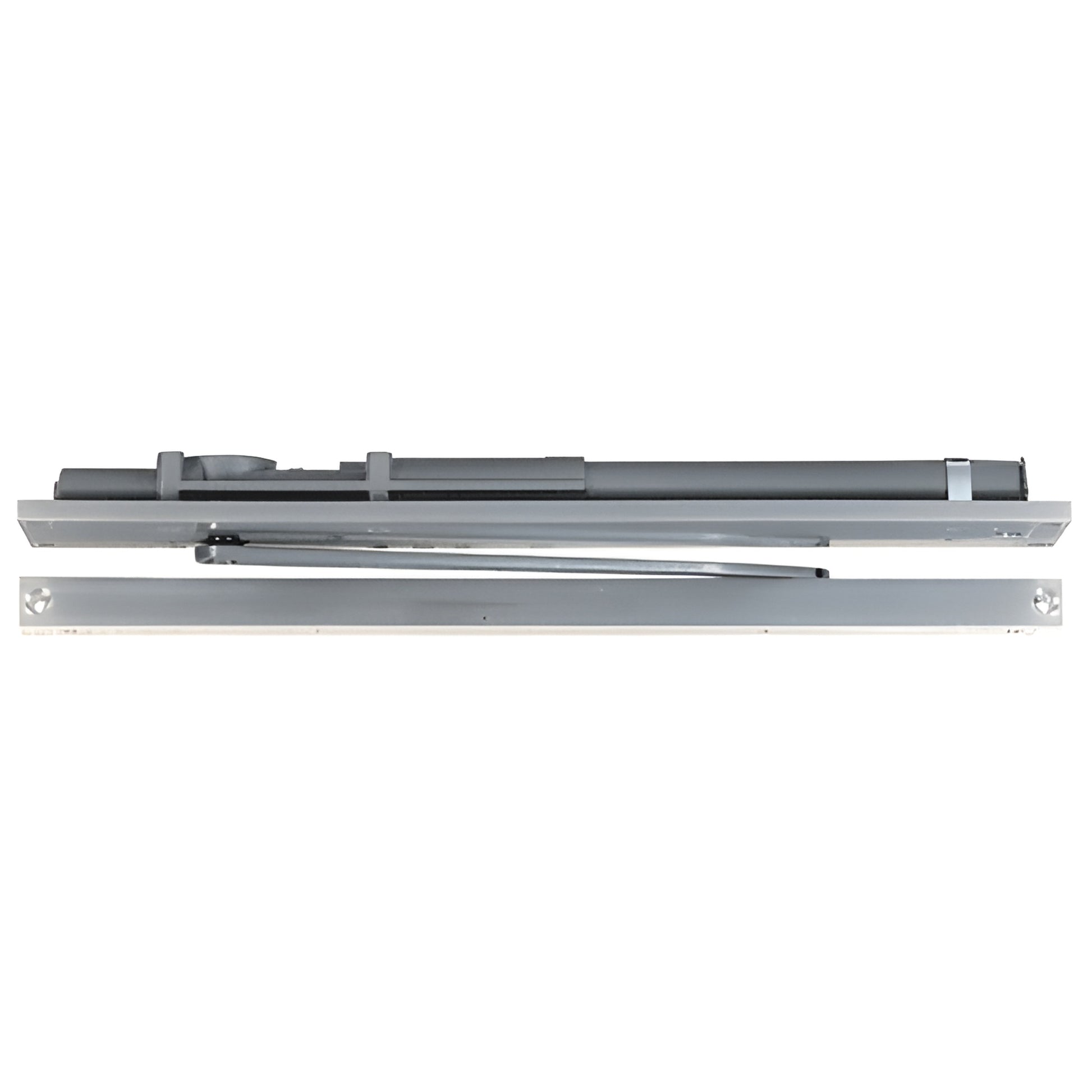

LCN Overhead Concealed Door Closer Size 3 LH No Hold-Open Aluminum
LCN Overhead Concealed Door Closer Size 3 LH No Hold-Open Aluminum
Regular price
$2,790.57 CAD
Regular price
Sale price
$2,790.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2033LAL
Shipping Weight: 10.855 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.855 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-5/8 in. (41.3 mm)
Body Length
20-5/8 in. (523.9 mm)
Body Width
3-23/32 in. (94.5 mm)
Case Quantity
2
Closer Type
Overhead Concealed
Cover Plate Length
21-7/8 in. (555.6 mm)
Cover Plate Width
4 in. (101.6 mm)
Door Height
96 in. (2438.4 mm)
Finish/Color
Aluminum
Handing
Left Hand
Hold Open Option Available
Yes
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-3/8 in. (34.9 mm)
Slide Track Length
22-1/2 in. (571.5 mm)
UL Listed
Yes
Overview
- Requires minimum 1-3/4" (44.5 mm) x 4" (102 mm) wide transom
- Certified to ANSI Standard A156.4, Grade 1
- UL and cUL listed for self-closing doors (without hold open)
- Fixed spring sizes available: interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m)
The LCN 2030 Series Pacer® Overhead Concealed Closer (SKU: 2033LAL) is a heavy-duty overhead concealed door closer engineered for a shallow 1-3/4" x 4" transom. Its single lever arm and roller assembly deliver smooth, quiet door control, while multiple finishes and track functions meet architectural and ADA requirements. Handed for right or left swing doors, the closer includes fixed spring sizes suitable for interior and exterior applications and is UL/cUL listed for self-closing doors without hold-open.
Highlights: shallow-transom overhead concealed closer, Grade 1 commercial hardware, ADA-compliant fixed springs, UL/cUL listed — ideal for storefronts, offices, and institutional doors. Order the LCN 2030 Series (SKU: 2033LAL) or contact us for specifications and shipping details.
