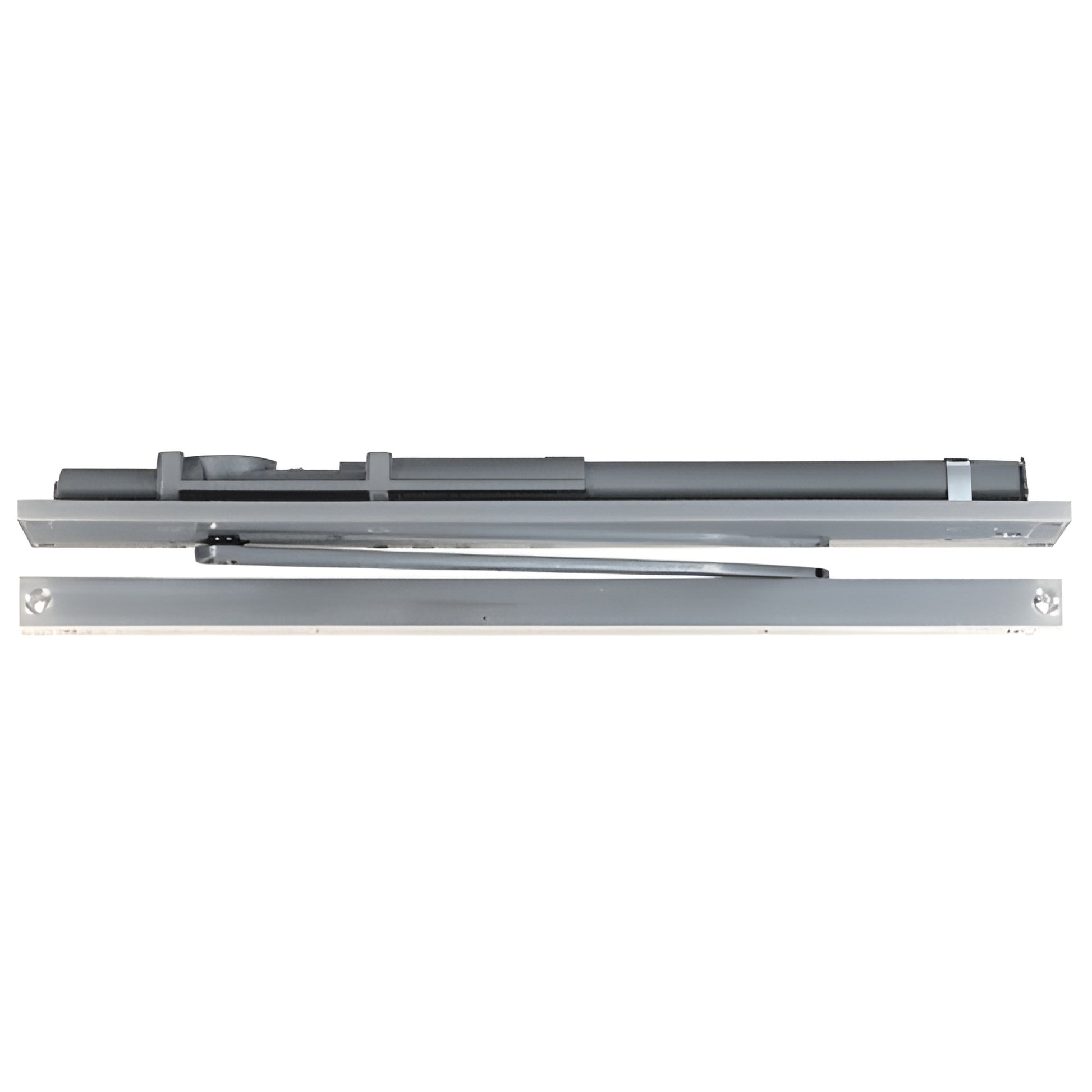

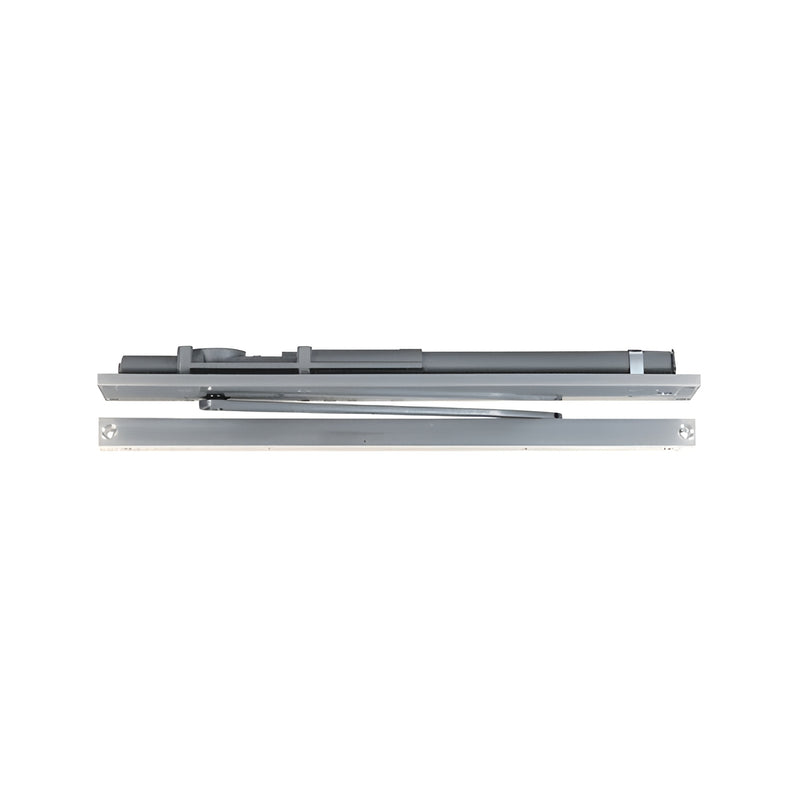

LCN Concealed Overhead Door Closer Size 4 LH Aluminum No Hold-Open
LCN Concealed Overhead Door Closer Size 4 LH Aluminum No Hold-Open
Regular price
$2,790.57 CAD
Regular price
Sale price
$2,790.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2034LAL
Shipping Weight: 10.9 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.9 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-5/8 in. (41.3 mm)
Body Length
20-5/8 in. (523.9 mm)
Body Width
3-23/32 in. (94.5 mm)
Case Quantity
2
Closer Type
Overhead Concealed
Cover Plate Length
21-7/8 in. (555.6 mm)
Cover Plate Width
4 in. (101.6 mm)
Door Height
96 in. (2438.4 mm)
Finish/Color
Aluminum
Handing
Left Hand
Hold Open Option Available
Yes
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-3/8 in. (34.9 mm)
Slide Track Length
22-1/2 in. (571.5 mm)
UL Listed
Yes
Overview
- Requires minimum 1-3/4" (44.5 mm) x 4" (102 mm) wide transom — fits shallow transom installations
- Certified to ANSI Standard A156.4, Grade 1 high-performance closer
- UL and cUL listed for self-closing doors, without hold-open
- Fixed spring sizes available: interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m)
The LCN 2030 Series Pacer® Overhead Concealed Closer is a heavy-duty, overhead concealed door closer engineered for shallow transom applications. Its single lever arm and roller assembly deliver smooth, quiet door control ideal for commercial and institutional settings. Available in multiple finishes and track functions to meet architectural requirements, the closer is handed for right or left swing doors and offers fixed spring sizes that meet ADA door force considerations for interior and exterior doors. Certified ANSI A156.4 Grade 1 and UL/cUL listed for self-closing doors without hold-open, this model provides reliable, code-compliant performance for demanding installations. SKU: 2034LAL
