Norton® 5700 Dark Bronze LEO® ADA Low-Energy Automatic Door Operator

• Complies with A.D.A. accessibility guidelines
• Retains proper closing force while providing A.D.A. mandated opening force
• Meets ANSI/BHMA A156.19 and A.D.A. A156.4
• Easy-to-install and set up
• Non-handed design for push or pull side applications
• UL Listed

Norton® 5700 Series — LEO® Low-Energy Power Door Operator (SKU: LE05741DU)

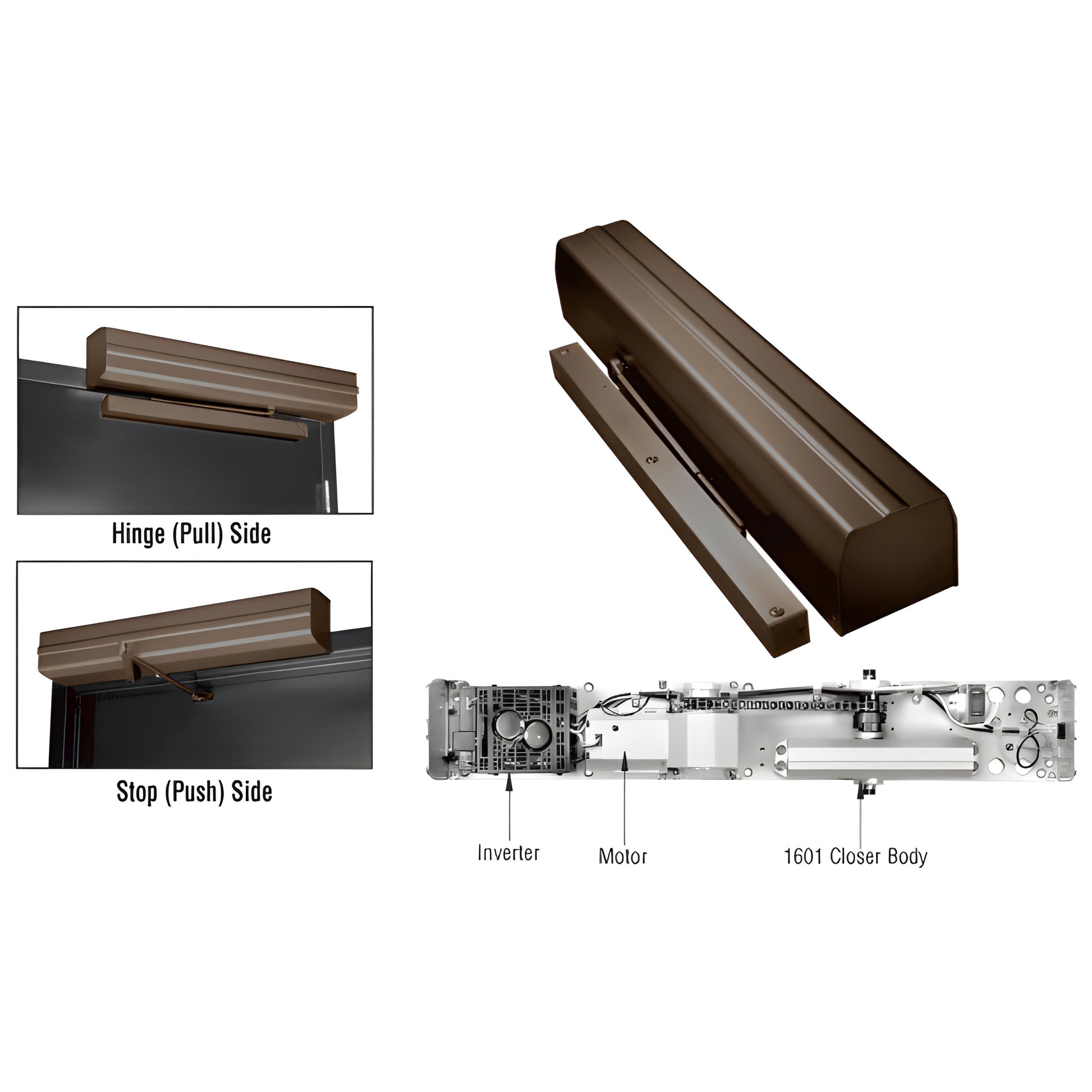

LEO® is a next-generation low-energy ADA power door operator designed for fast installation and quiet, reliable operation. The patented LEO® system installs in minutes and uses three main components: inverter, motor, and Norton 1601 closer body. Ideal for offices, retirement facilities, schools, and churches where ADA-assist openings and low noise are priorities.

Key differentiators: LEO® functions as a standard door closer when opened manually—providing minimal resistance and preventing motor back-drive—so the 1601 closer maintains closing efficiency. In a power outage the door still closes by the closer's spring force. LEO® supports wall switch, radio frequency device, or motion sensor activation and is available for both push- and pull-side mounting.

Important: This is a low-energy power operator intended for ADA assist openings only; not for full-time automatic operation.

SPECIFICATIONS
Power Input: 120V AC, 60Hz
Current Draw: 0.6 A
Relay Output: DPDT - N.O./N.C. (jumper selectable)
External On/Off Switch
Adjustable Hydraulic Backcheck
Adjustable Hold Open: 0 to 30 seconds
Warranty: 2-year limited
Finish: Sprayed combination of waterborne acrylic and polyester powder coat
Dimensions:
Body with Cover: 29" (737 mm) x 5-1/4" (133 mm)
Body Projection: 4-5/8" (117 mm)
Track Assembly: 23" (584 mm)

Notes: Contact CRL Technical Sales for doors exceeding 250 lb (113 kg). Door switches and sensors are not included and must be ordered separately. This operator can be wired to work with electric strikes or magnetic locks; strikes/locks require their own power supply.

Product Warning:

This product is a low-energy operator intended for ADA assist openings only. It is not intended for full-time automatic opener applications.
