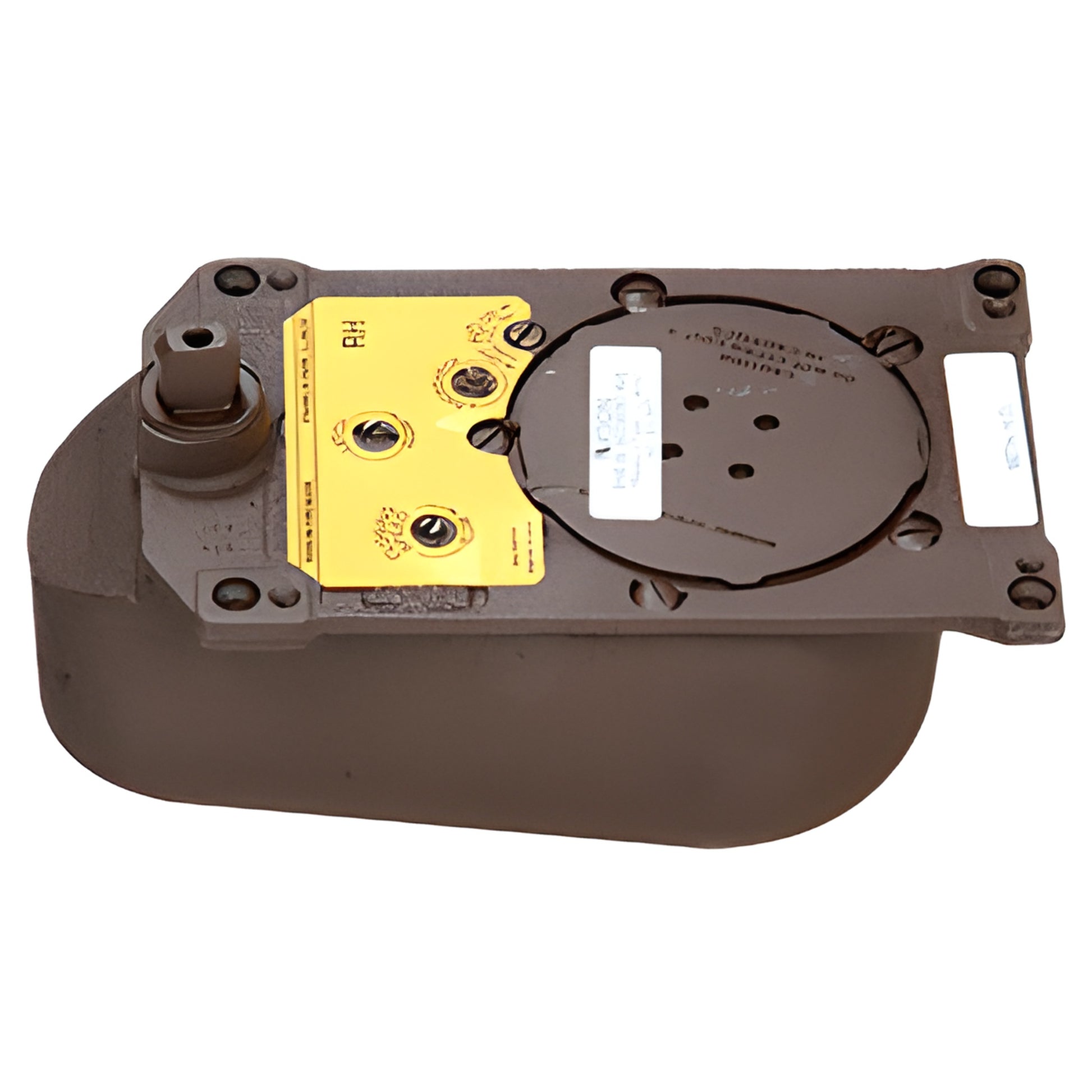

Rixson 28 Center-Hung Right-Hand Floor Closer Body 105° Hold-Open
Rixson 28 Center-Hung Right-Hand Floor Closer Body 105° Hold-Open
Regular price
$2,659.92 CAD
Regular price
Sale price
$2,659.92 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 28105SH0RHB0DY
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height
102 in. (2590.8 mm)
Door Opening
105 °
Handing
Right Hand
Hold Open
105
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 in. (1219.2 mm)
Maximum Door Width - Interior
48 in. (1219.2 mm)
Maximum Weight Center Hung
350 lbs. (158.8 kg)
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Selective Hold Open
Yes
Series
28
Similar
CRL8370, CRL8372, J993HOD, J994HOD, J990NHOD
UL Listed
Yes
Overview
- For exterior or interior doors weighing up to 350 lbs (158 kg) and 48" (1.22 m) wide
- Selective on/off hold-open
- Built-in positive dead stop
This Rixson® Model 28 center-hung floor mounted door closer delivers durable, high-efficiency door control for heavy commercial doors. Because the bottom arm links directly to the floor closer spindle, this center-hung design increases closing efficiency compared with surface or overhead concealed closers. Ideal as a center-hung floor closer for 350 lb doors and 48" wide openings, it supports both exterior and interior applications.
Standard features include selective on/off hold-open, built-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments—making it a reliable choice for commercial door control and heavy-duty door closing solutions.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. For product availability or technical assistance with Rixson® closers, contact our Technical Sales Department.
Optional accessories that may be needed are: 253000 Floor Closer Cement Case 284720RH Closer Cover 282026 Bottom Center-Hung Arm 340 Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
SKU: 28105SH0RHB0DY
Order or request a quote today to get pricing and lead times for this Rixson Model 28 center-hung floor mounted door closer.
