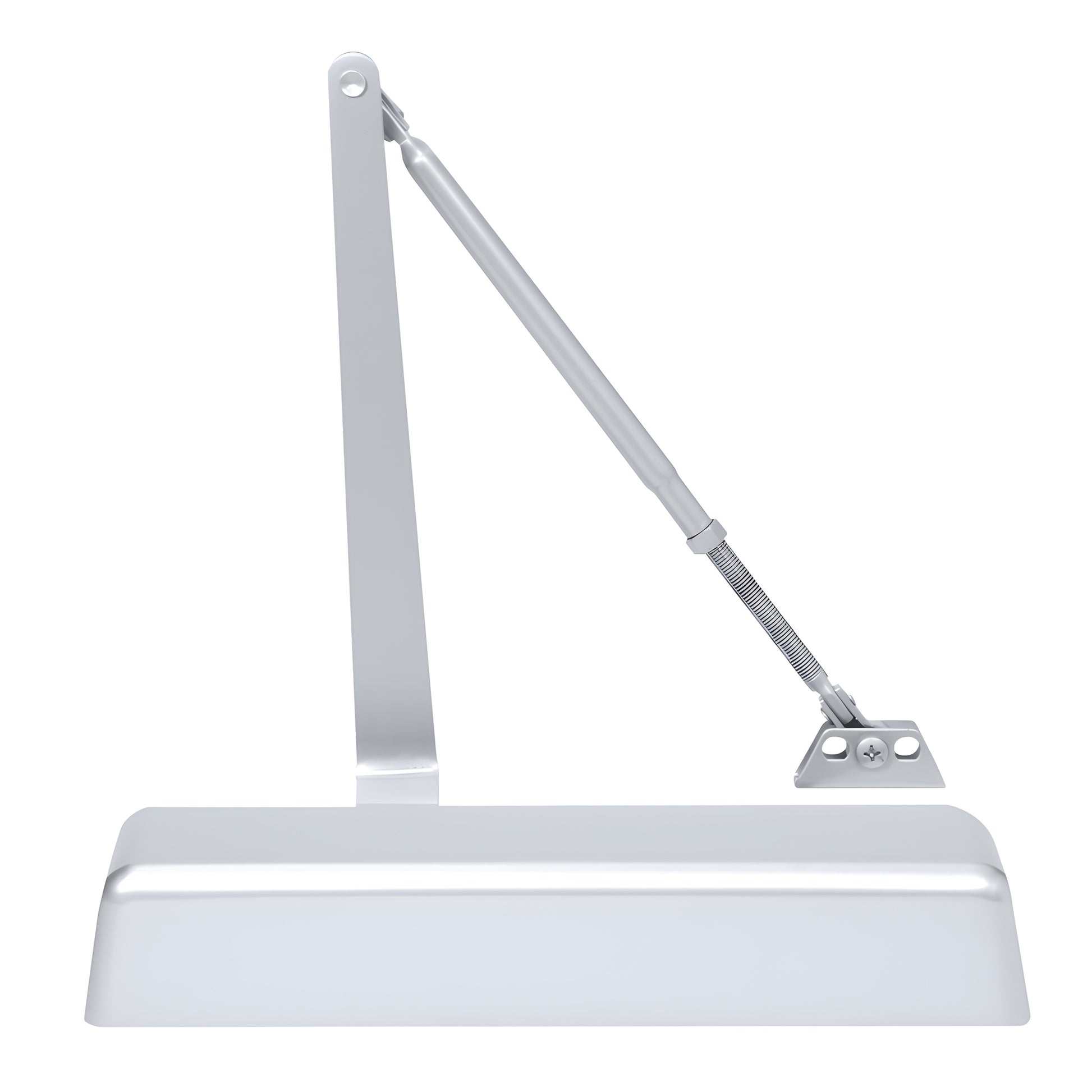

CRL Aluminum Delayed-Action Surface Mount Door Closer, Adjustable 2-5

• ANSI A156.4 - Grade 1 surface mounted door closer
• Adjustable spring power, multi-size range: 1 to 5
• Larger footprint matches or covers existing hole patterns
• UL Listed

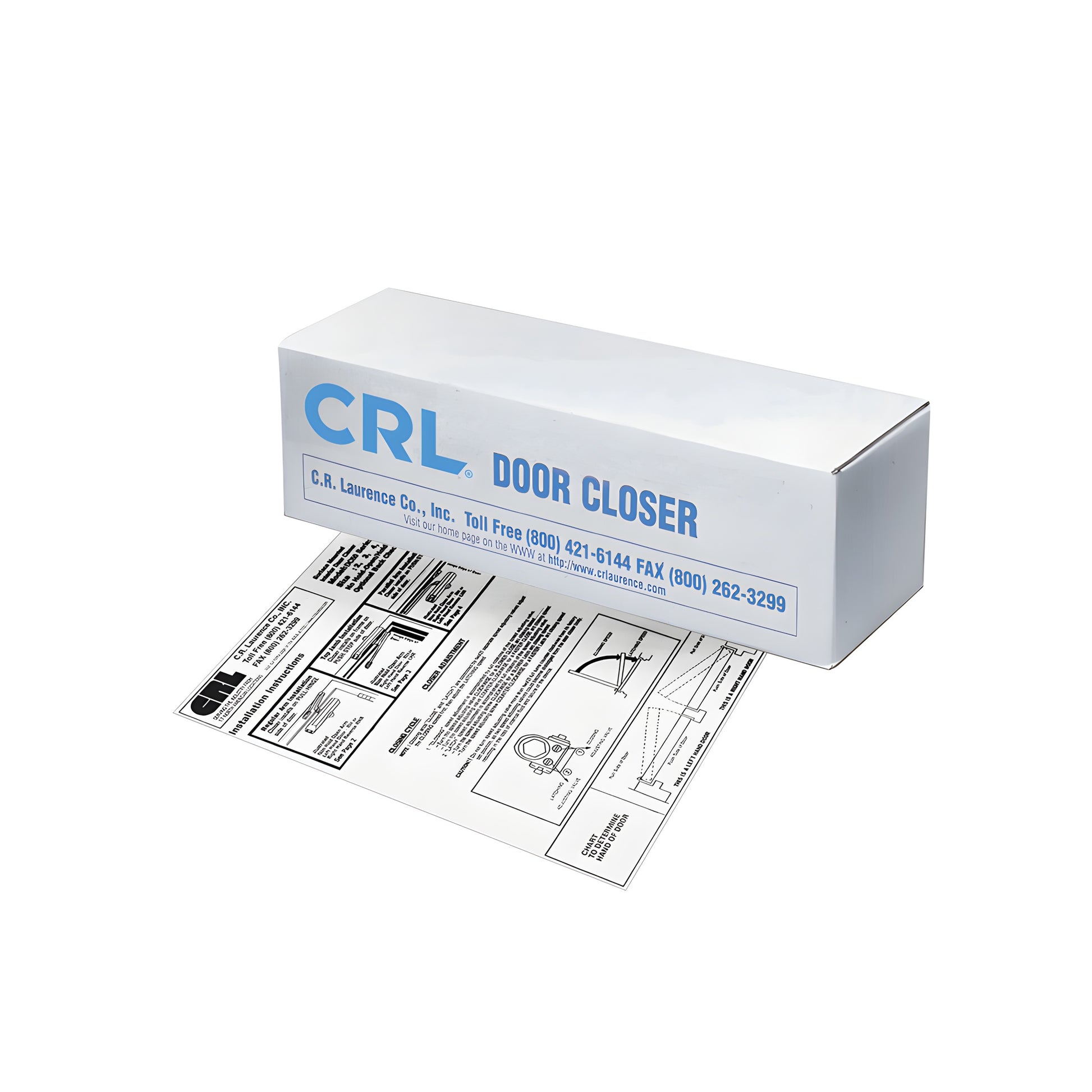

• Each PR50 Series closer includes installation instructions and mounting hardware

For demanding commercial applications, consider the CRL PR50 Series Surface Mounted Door Closer (reference SKU PR54DAA). This ANSI Grade 1, multi-size adjustable closer fits doors 24" to 54" (0.61 to 1.37 m) and doors weighing 33 to 264 lbs. (15 to 120 kg), offering a durable, high-performance solution for airports, shopping centers, public buildings, healthcare, and other high-traffic environments.

The PR50 (barrier-free) model uses a lighter spring for adjustable control from Size 1 through 4 and helps meet A.D.A. opening force accessibility requirements. The PR52 adjusts Size 2 through 5 for heavier doors and higher traffic areas. The PR54DA model adds an adjustable Delayed Action feature to hold the door open briefly—useful in hospitals, nursing homes, and public facilities where momentary hold-open improves accessibility and traffic flow.

Independent closing and latching speed controls plus an adjustable backcheck help prevent damage from wind or heavy pedestrian traffic. Parallel arm brackets and mounting hardware are included for regular, top-jamb, or parallel-arm installations. Optional accessories—Drop Plates and Hold-Open Arms—are available for special installations.

PR50 Series closers are UL Listed and backed by a 10-year warranty.

Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door under all site conditions and door sizes. Verify suitability for your installation.

Shop the PR50 Series surface mounted door closers now or contact CRL for assistance with specifications and installation options.
