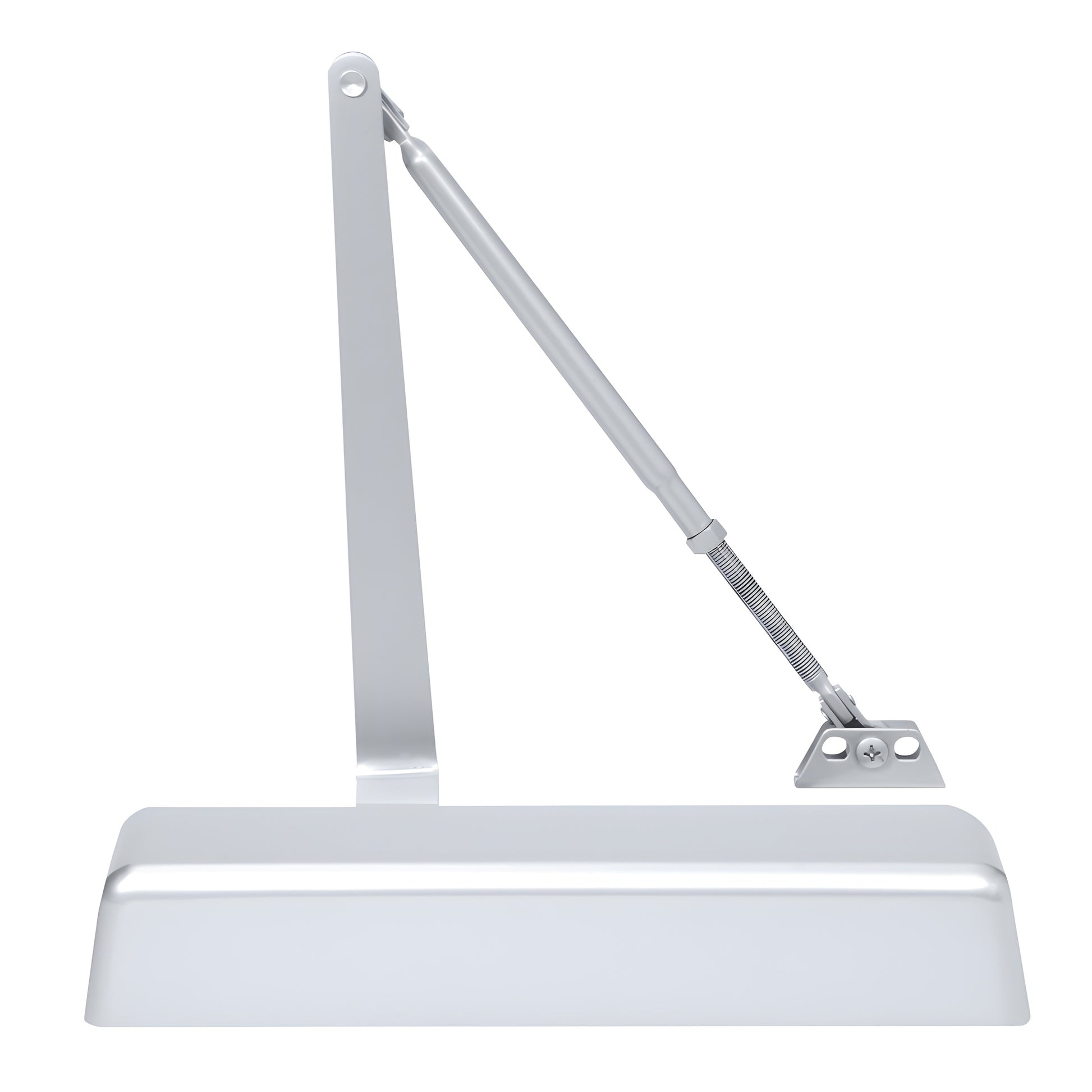

CRL Aluminum Door Closer, Adjustable Spring Size 2-5, Surface Mount

• ANSI A156.4 - Grade 1 surface-mounted door closer
• Adjustable spring power, multi-size range: Size 1 to 5
• Larger footprint to match or cover existing hole patterns
• UL Listed

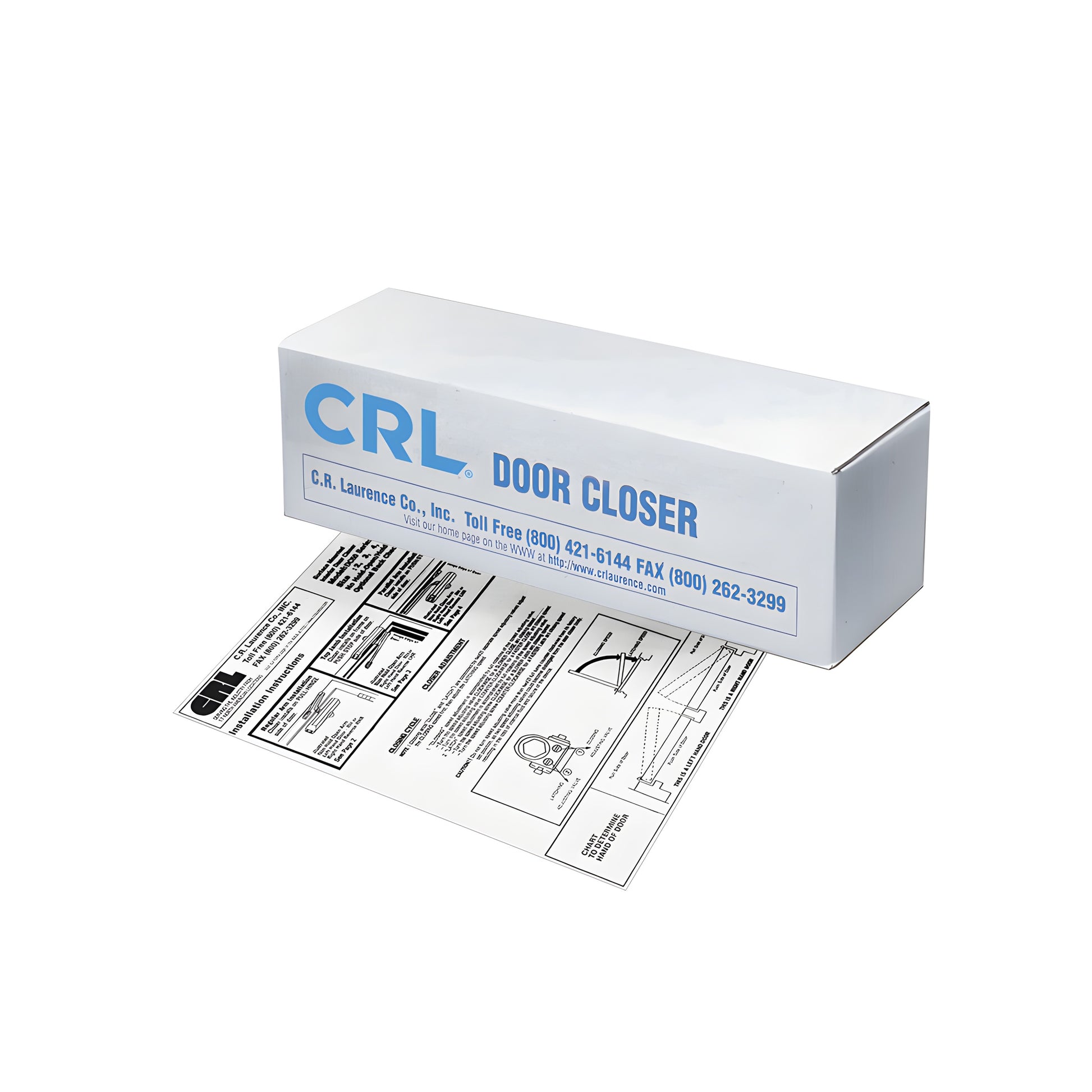

• Each PR50 Series closer packaged with installation instructions and mounting hardware

To meet demanding commercial specifications and simplify retrofit projects, consider the CRL PR50 Series Surface Mounted Door Closer. The PR50 Series is an ANSI Grade 1, multi-size adjustable spring power closer suitable for doors 24" to 54" (0.61 to 1.37 m) and weighing 33 to 264 lbs. (15 to 120 kg). Its larger footprint is a key differentiator for matching or covering existing hole patterns during replacement installs.

The barrier‑free, low‑opening-resistance Model PR50 (Size 1–4) is recommended for public buildings, airports, and shopping centers to help meet A.D.A. opening force requirements. The PR52 Model (SKU PR52A) adjusts from Size 2–5 for heavier doors and higher traffic areas. The PR54DA offers an adjustable Delayed Action feature to hold the door open briefly—useful in health care facilities, nursing homes, and other public buildings that need momentary open time for accessibility.

Independent closing and latching speed controls plus an adjustable backcheck help protect the closer, door, and adjacent surfaces from damage caused by violent or high‑traffic swings. Parallel arm brackets and universal mounting hardware are included for regular, top‑jamb, or parallel‑arm installations. Optional accessories such as drop plates and hold‑open arms are available for special installs.

PR50 Series closers are UL Listed and carry a ten‑year warranty.

Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door under all site conditions and door sizes.

Find the PR52A PR50 Series door closer to upgrade commercial and ADA-compliant entrances—order or contact sales for a quote today.
