CRL Dark Bronze Adjustable Spring Door Closer Size 2-5 Surface Mount

• ANSI A156.4 - Grade 1 door closer
• Adjustable spring power, multi-size range 1 to 5
• Larger footprint matches or covers existing hole patterns
• UL Listed

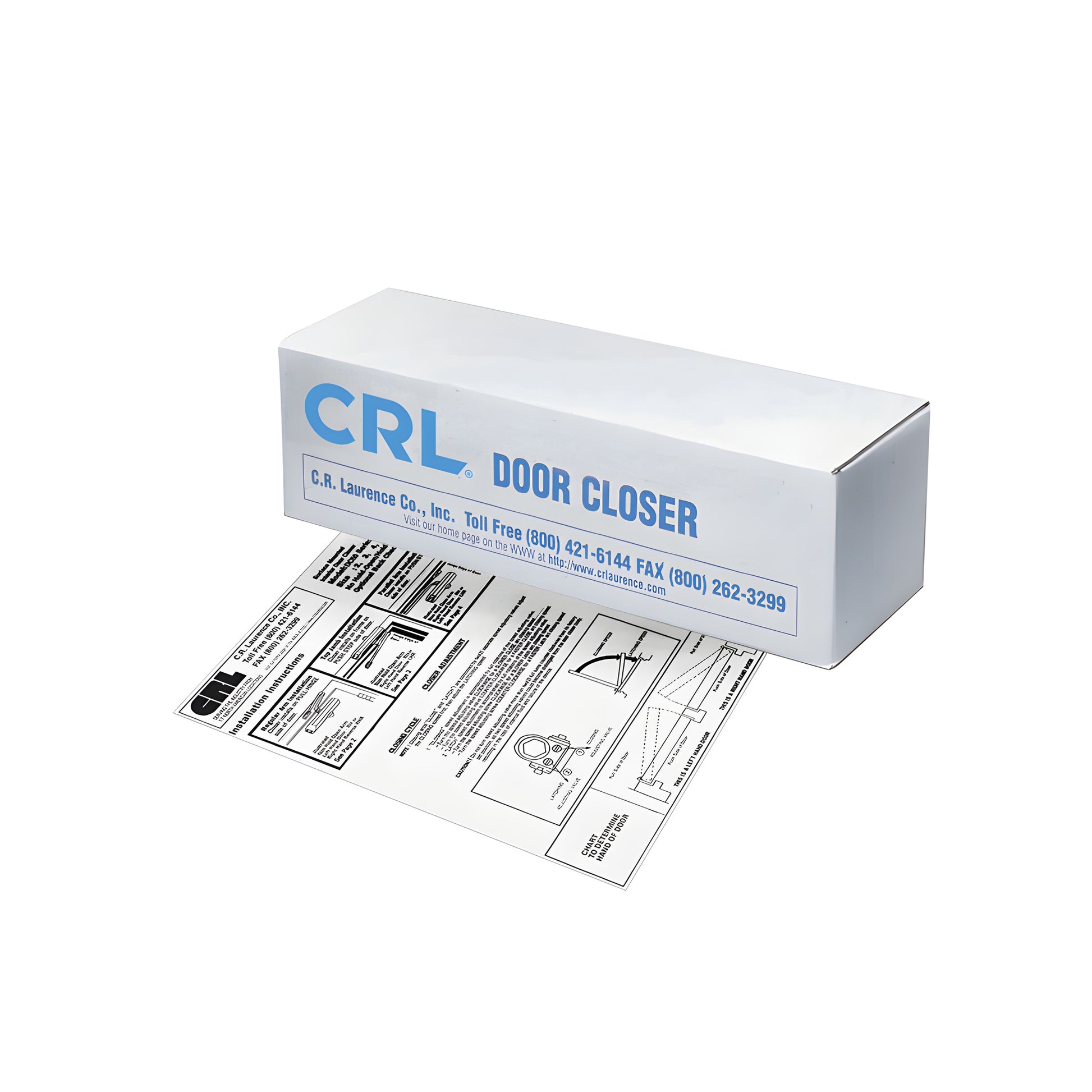

• Each PR50 Series closer includes installation instructions

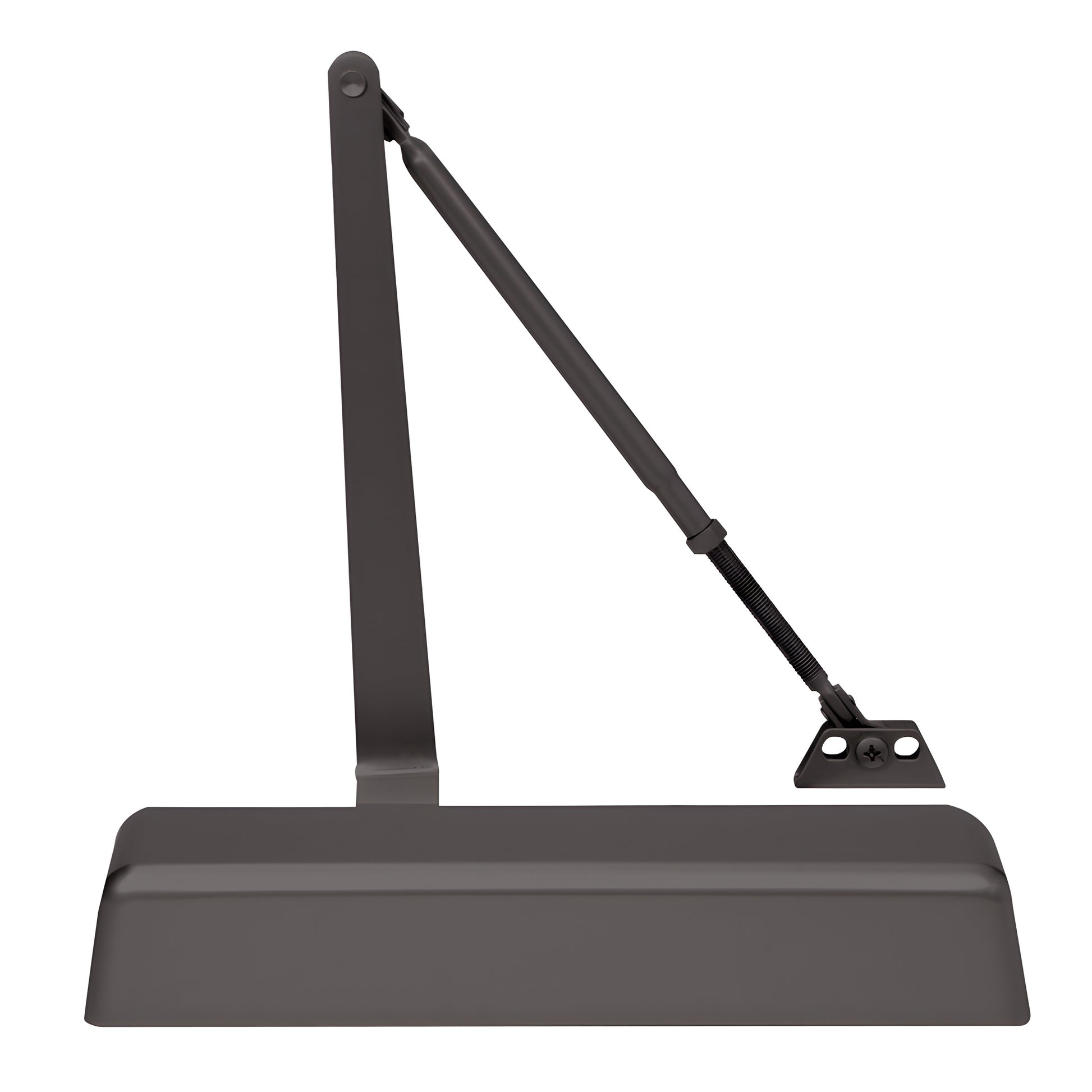

To meet demanding closer specifications and a need for a larger footprint for matching or covering existing hole patterns, consider the CRL PR50 Series Surface Mounted Door Closer. The PR50 Series is an ANSI Grade 1, multi-size adjustable spring power closer suitable for doors from 24" to 54" (0.61 to 1.37 m) and weighing from 33 to 264 lbs. (15 to 120 kg).

The barrier-free (low opening resistance) Model PR50 provides adjustable door control from Size 1 through 4 and is recommended for public buildings, airports, and shopping centers to meet A.D.A. opening force accessibility requirements. The PR52 Model (SKU PR52DU) adjusts from Size 2 through 5 for heavier door applications and is recommended for higher-traffic areas. The PR54DA Model adds an adjustable Delayed Action feature to vary how long the door remains open—useful in hospitals, nursing homes, and other public buildings requiring momentary hold-open to facilitate passage.

Closing and latching speed controls are independently adjustable. The adjustable backcheck helps prevent damage to the closer, door, and adjacent surfaces if the door is violently swung open by wind or heavy pedestrian traffic.

PR50 Series closers are UL Listed and come with a ten-year warranty. Parallel arm brackets and mounting hardware are included for regular, top-jamb, or parallel-arm installations. Optional accessories such as drop plates and hold-open arms are available for special installations.

Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

For a heavy-duty, ADA-capable surface mounted door closer with a larger mounting footprint, choose the PR52 (SKU PR52DU) from the PR50 Series — contact CRL to order or request technical assistance.
