• Brushed bronze solid brass 90 sleeve-over glass clamp for 5/16-1/2" (8-12mm) glass, holds panels while sealant cures.
1 1

CRL

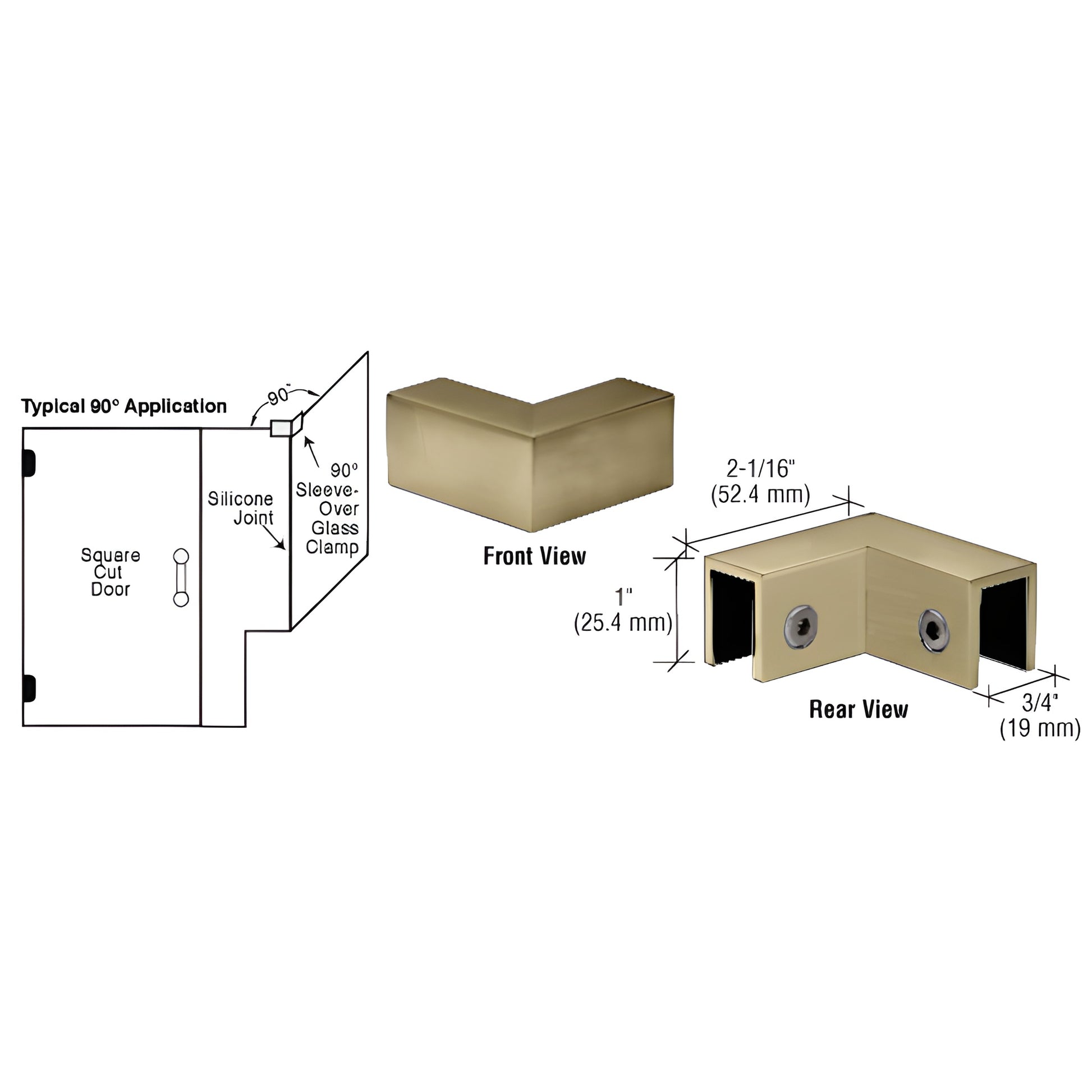

CRL Brushed Bronze 90° Sleeve-Over Glass Clamp for Frameless Railing

CRL Brushed Bronze 90° Sleeve-Over Glass Clamp for Frameless Railing

$50.91 CAD
$50.91 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# S0GC90BBRZ
Shipping Weight: 5.44 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Bronze
Glass To Glass Angle
90
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • For 5/16" to 1/2" (8 to 12 mm) thick glass
  • Solid brass construction
  • Use with monolithic tempered glass
  • Assists with shear forces on glass panels
  • Holds glass panels in position while sealant cures

CRL Sleeve Over Glass Clamps (SKU S0GC90BBRZ) provide a mechanical fastener to absorb shear forces on frameless glass panels without special glass fabrication. Use clamps to hold panels while silicone sealant cures—the sealant provides pull strength, water resistance, and final panel bonding. Clamps secure with nylon‑tipped Allen set screws for reliable, non‑marring adjustment.

P612** replacement screws



SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No glass fabrication required

NOTE: Clamps tighten using nylon‑tipped Allen screws. These clamps are not designed to replace headers or a support bar. Contact CRL Frameless Shower Technical Sales for installation guidance.

Product Warning:
These clamps are not designed to take the place of headers or a support bar.

Most shipping weights are approximate and have not been verified. If you need exact weight for shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary with monitor settings.


Order SKU S0GC90BBRZ now to secure panels during installation — contact us for technical support or volume pricing.
