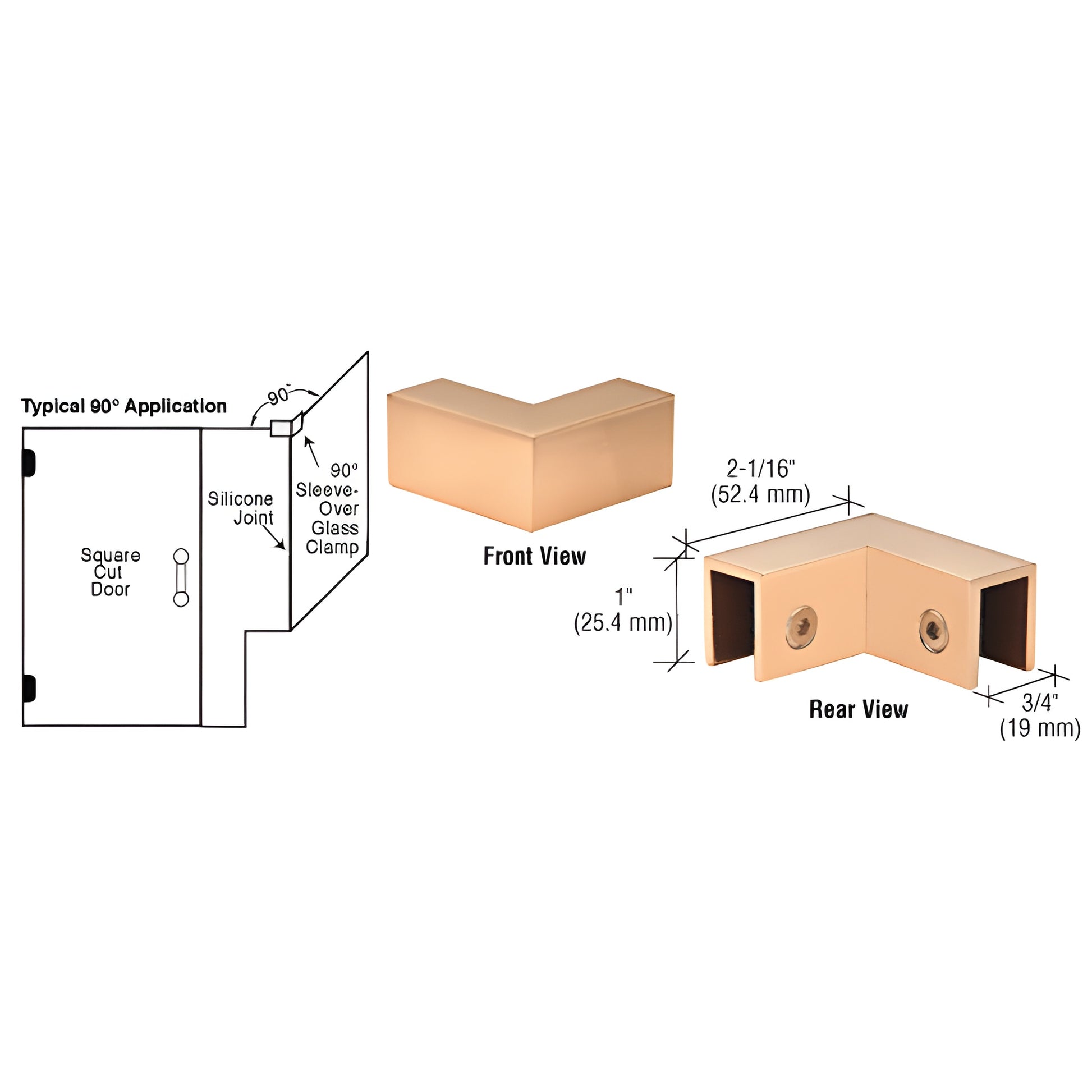

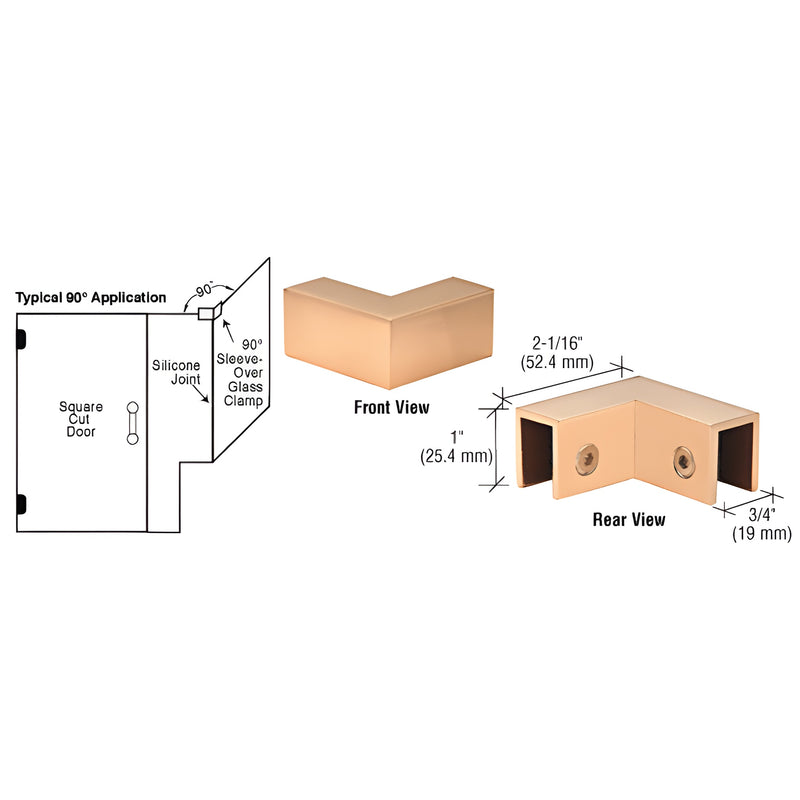

• Satin brass 90 sleeve-over-glass clamp (SKU S0GC90SB) for 8-12mm (5/16-1/2") frameless shower glass.
1 1

CRL

CRL Satin Brass 90° Sleeve-Over Glass Clamp for Frameless Glass

CRL Satin Brass 90° Sleeve-Over Glass Clamp for Frameless Glass

$34.66 CAD
$34.66 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# S0GC90SB
Shipping Weight: 5.44 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Brass
Glass To Glass Angle
90
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • Fits 5/16" to 1/2" (8 to 12 mm) thick glass
  • Solid brass construction for corrosion resistance
  • Use with monolithic tempered glass
  • Assists with shear forces and holds panels in position while sealant cures
  • Includes gaskets; no glass fabrication required

CRL Sleeve Over Glass Clamps (SKU: S0GC90SB) are frameless shower glass clamps engineered as a mechanical fastener to absorb shear forces on glass panels. No special glass fabrication is required. Use these solid-brass sleeve-over-glass clamps with monolithic tempered glass to secure panels while silicone sealant cures—the sealant provides water-tighting and long-term pull strength. Clamps are locked with nylon-tipped Allen set screws for secure, damage-minimizing installation.

P612** replacement screws


SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No Glass Fabrication Required

NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not intended to replace headers or a support bar. Contact CRL Frameless Shower Technical Sales for system design guidance.

Product Warning:
These clamps are not designed to take the place of headers or a support bar.

Most shipping weights are approximate and may require confirmation for accurate shipping quotes. If you need exact weight for shipping costs, contact CRL Customer Service prior to ordering. Product images are of the actual product or a close representation; colors may vary by monitor.

Brass Finish Advisory:
Although durable, brass can oxidize over time and may develop a tarnished appearance. See the Brass Finish Disclaimer in Technical References for care and maintenance guidance.


Order the S0GC90SB solid brass sleeve-over-glass clamps for secure, damage-minimizing installation of frameless shower glass panels. Contact us to request technical assistance or place an order.
