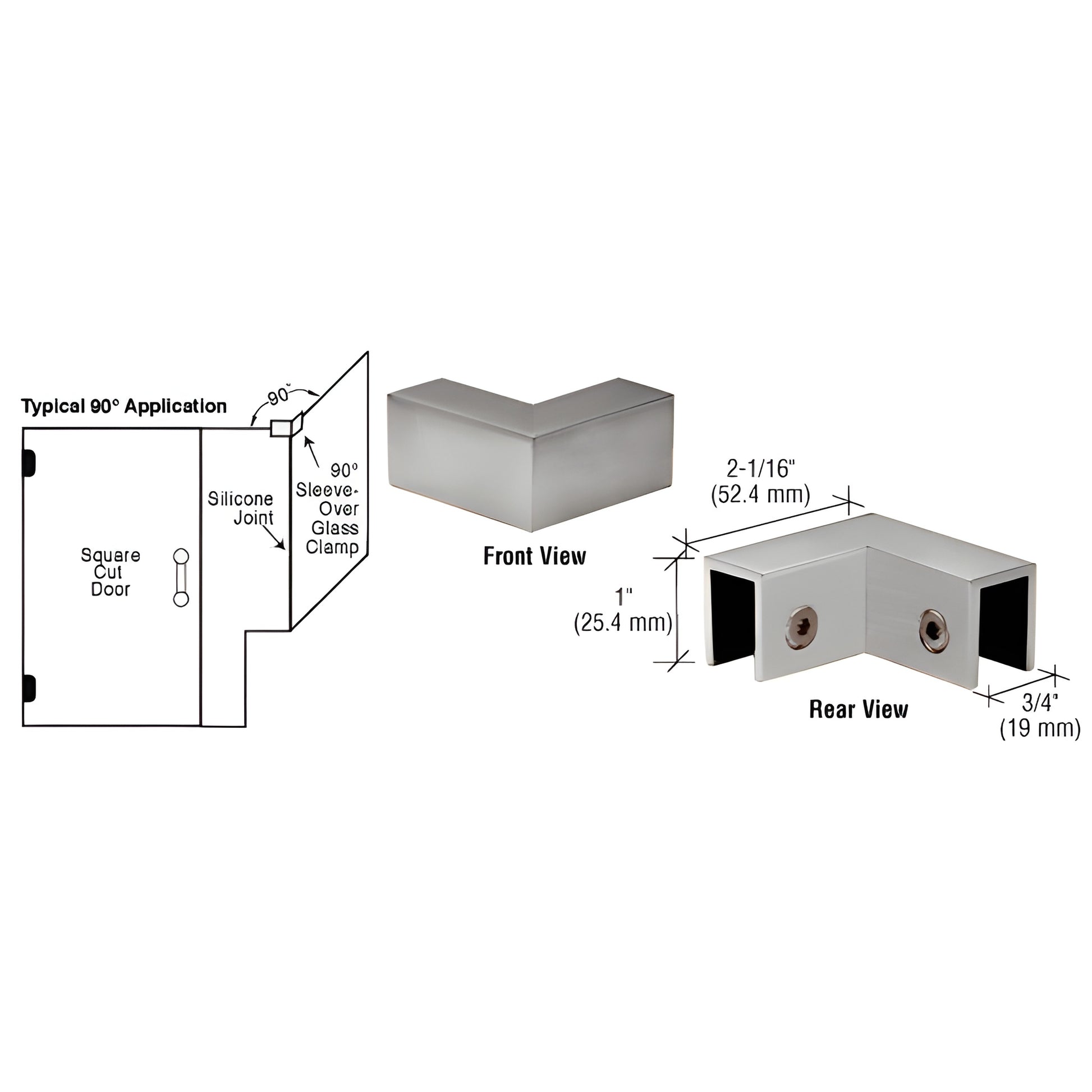

CRL Brushed Nickel 90 Degree "Sleeve Over" Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Solid Brass
• Use Monolithic Tempered Glass
• Assists with Shear Forces
• Holds Glass Panels in Position While Sealant Cures

CRL Sleeve Over Glass Clamps

are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws

5/16" to 1/2" (8 to 12 mm)

Solid Brass

Gaskets

No Glass Fabrication Required

Clamps tighten using nylon tipped Allen screws. These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales for more details.

These Clamps are not designed to take the place of Headers or a Support Bar.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
