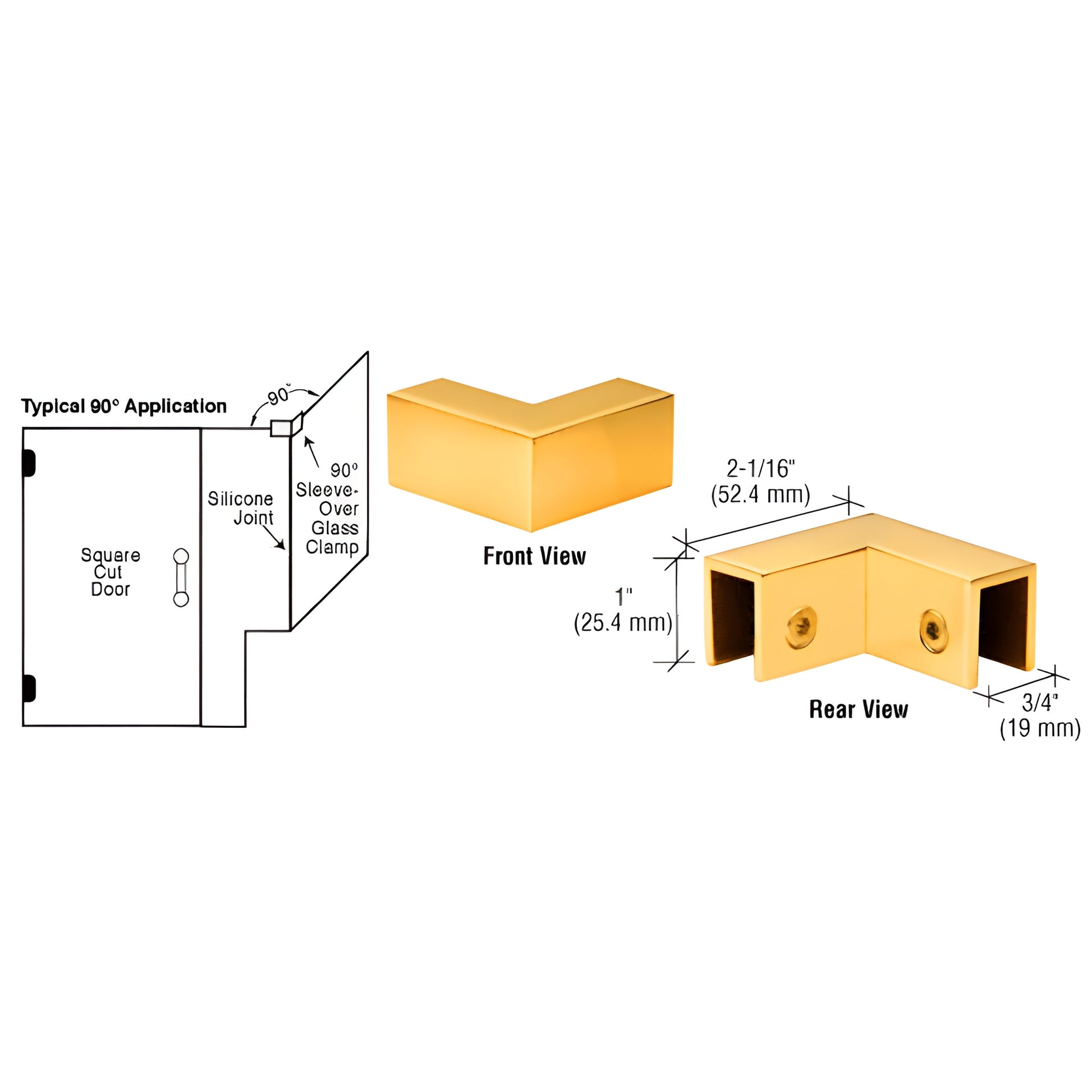

CRL Unlacquered Brass 90° Sleeve-Over Glass Clamp
Item# S0GC90ULBR
Shipping Weight: 5.44 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.44 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Unlacquered Brass
Glass To Glass Angle
90
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass
- For 5/16" to 1/2" (8 to 12 mm) thick glass
- Solid brass construction
- Use with monolithic tempered glass
- Assists with shear forces; holds glass panels in position while sealant cures
CRL Sleeve Over Glass Clamps (SKU: S0GC90ULBR) are engineered as mechanical fasteners for frameless shower and glass partition installations. Designed for monolithic tempered glass, these solid brass sleeve-over clamps require no special glass fabrication and help resist shear forces. Use them to temporarily secure panels while silicone sealant cures—the sealant provides water resistance and long-term pull strength. Clamps are tightened and secured with nylon-tipped Allen set screws.
P612** replacement screws
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No glass fabrication required
NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not designed to replace headers or support bars. Contact CRL Frameless Shower Technical Sales for system design details.
Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary by monitor settings.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance guidance.
Ideal for frameless shower glass clamps and commercial glass partition installations where a solid brass sleeve-over clamp for tempered glass is required. Order SKU S0GC90ULBR today to secure your panels during installation.
