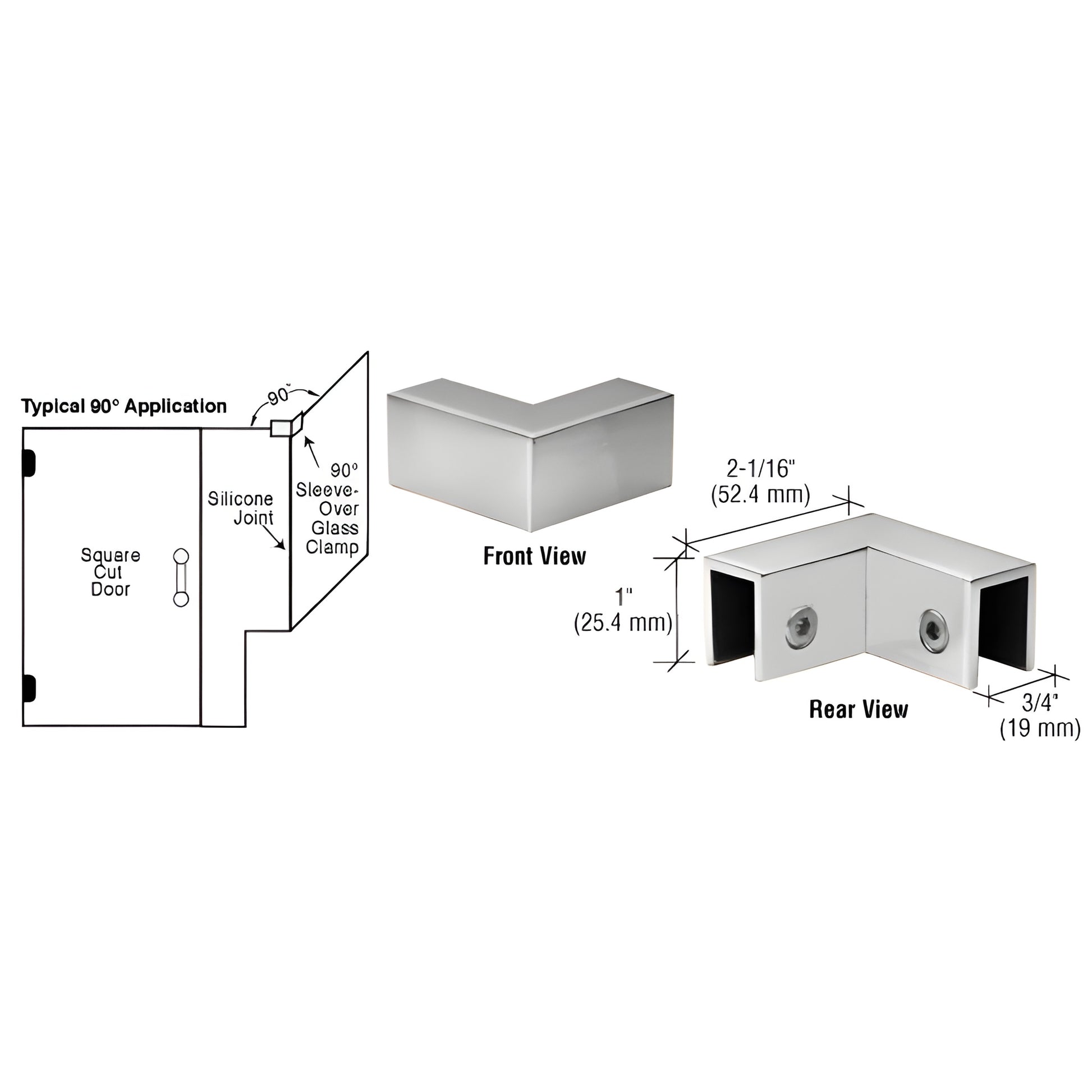

• Polished chrome 90 sleeve-over glass clamp (solid brass) for 5/16-1/2" (8-12mm) frameless shower panels
1 1

CRL

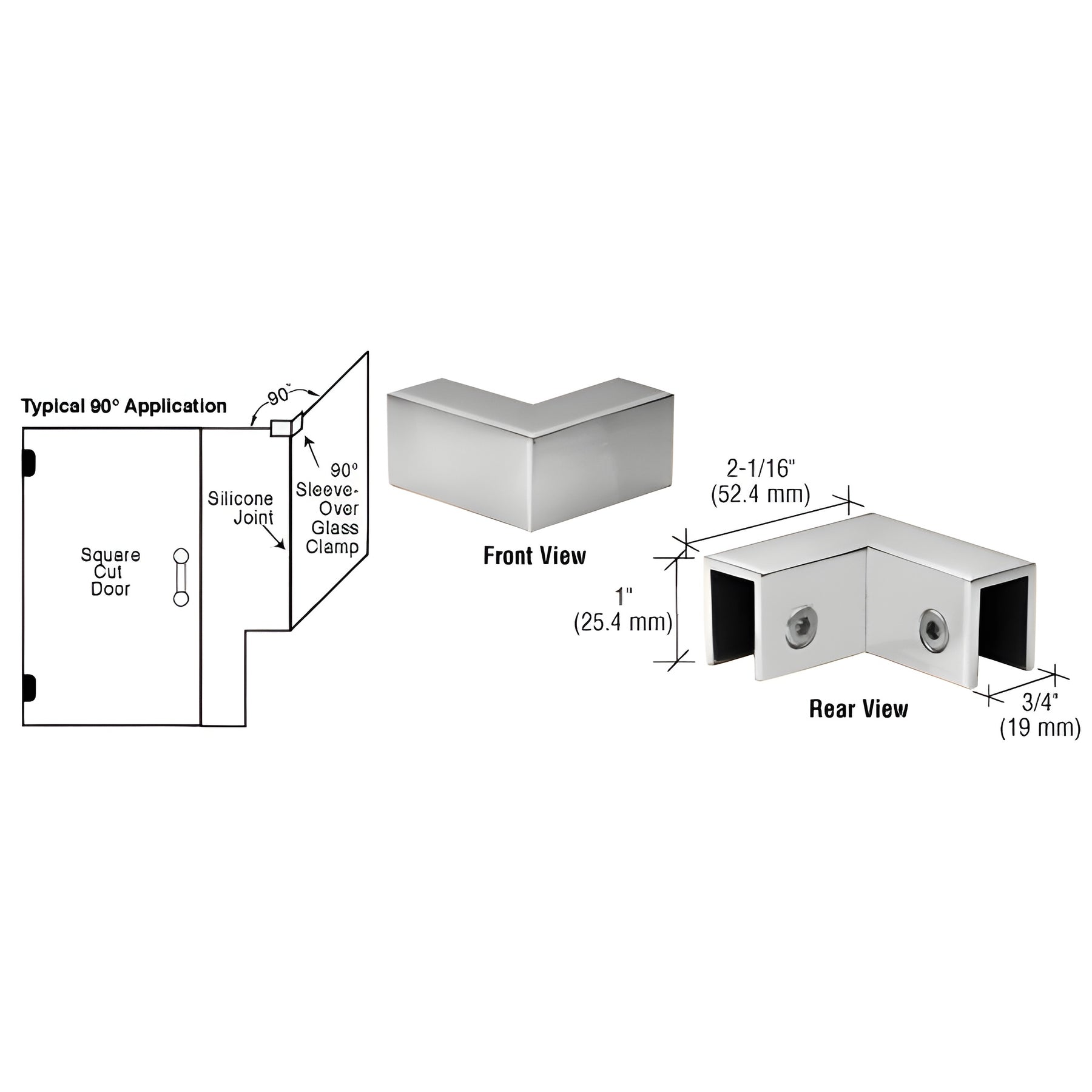

CRL Polished Chrome 90° Sleeve-Over Glass Railing Clamp

CRL Polished Chrome 90° Sleeve-Over Glass Railing Clamp

$36.82 CAD
$36.82 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# S0GC90CH
Shipping Weight: 5.44 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Chrome
Glass To Glass Angle
90
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • For 5/16" to 1/2" (8 to 12 mm) thick glass
  • Solid brass construction
  • Use with monolithic tempered glass
  • Assists with shear forces on frameless shower glass panels
  • Holds glass panels in position while sealant cures

CRL Sleeve Over Glass Clamps (SKU: S0GC90CH) provide a compact mechanical fastener to resist shear forces on frameless shower glass panels. No special glass fabrication is required. Use these brass glass clamps to temporarily secure panels while silicone sealant cures—the silicone provides waterproofing and long-term pull strength. Clamps are tightened with nylon-tipped Allen set screws for secure, non-marring adjustment.

P612** replacement screws


SPECIFICATIONS:
  • Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
  • Material: Solid brass
  • Includes: Gaskets
  • No glass fabrication required

NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not designed to replace headers or support bars. Contact CRL Frameless Shower Technical Sales for installation guidance and load limits.

Product Warning:
These clamps are not designed to take the place of headers or a support bar.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.


Order CRL Sleeve Over Glass Clamps (S0GC90CH) now to secure frameless shower glass panels during installation.
