• Polished nickel 90 sleeve-over glass clamp, solid brass for 8-12mm tempered glass, SKU S0GC90PN
1 1

CRL

CRL Polished Nickel 90 Degree Sleeve-Over Glass Clamp

CRL Polished Nickel 90 Degree Sleeve-Over Glass Clamp

$36.82 CAD
$36.82 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# S0GC90PN
Shipping Weight: 5.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Nickel
Glass To Glass Angle
90
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • Fits 5/16" to 1/2" (8 to 12 mm) thick monolithic tempered glass
  • Solid brass construction for corrosion resistance
  • Use with monolithic tempered glass panels
  • Reduces shear forces and holds glass panels in position while sealant cures

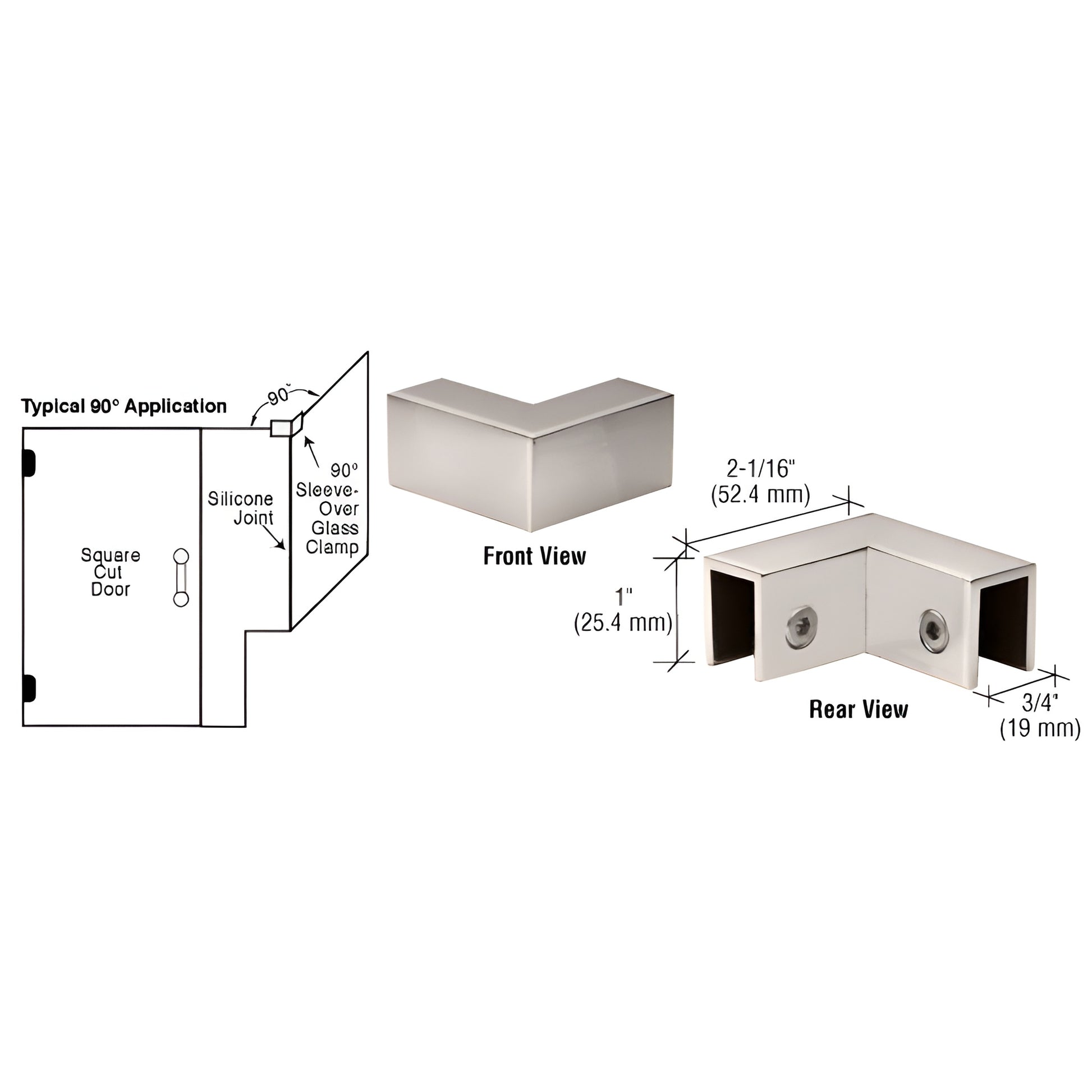

CRL Sleeve Over Glass Clamps provide a mechanical backup to resist shear forces on frameless shower glass panels without special glass fabrication. Use to secure panels while silicone sealant cures—the cured sealant prevents water leakage and supplies pull strength—while nylon-tipped Allen set screws lock the clamp in place. Ideal for frameless shower installations and other tempered glass panel applications. SKU: S0GC90PN.

P612** replacement screws


SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No glass fabrication required

NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not designed to replace headers or support bars. Contact CRL Frameless Shower Technical Sales for installation guidance.

Product Warning:
These clamps are not designed to take the place of headers or a support bar.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this information from CRL Customer Service before ordering. Product images show the actual product or a close representation; colors may vary by monitor settings.


Order CRL Sleeve Over Glass Clamps (SKU S0GC90PN) for a durable solid-brass solution to secure tempered glass panels—contact us or add to cart to get started.
