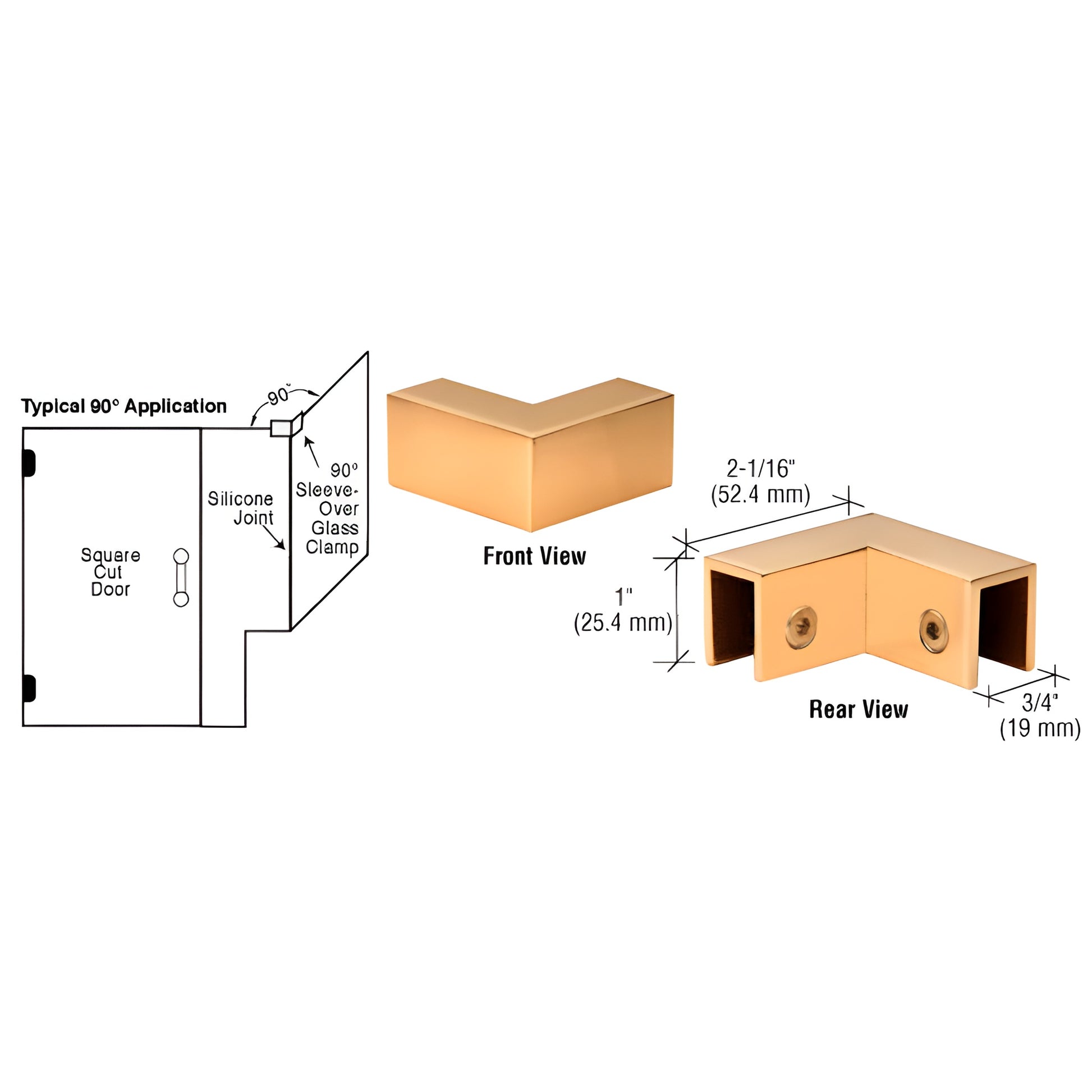

CRL Polished Brass 90° Sleeve-Over Glass Clamp for Railings
Item# S0GC90BR
Shipping Weight: 5.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Polished Brass
Glass To Glass Angle
90
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass
- For 5/16" to 1/2" (8 to 12 mm) thick glass
- Solid brass sleeve-over-glass clamp
- Use with monolithic tempered glass
- Assists with shear forces and holds panels while sealant cures
CRL Sleeve Over Glass Clamps (SKU: S0GC90BR) provide a compact mechanical fastener that relieves shear forces on glass panels in frameless shower and glass partition installations. No special glass fabrication is required. Use clamps to temporarily secure panels while silicone sealant cures—the sealant then bonds the panels, prevents water leakage, and provides long-term pull strength. Clamps are secured with nylon-tipped Allen set screws for a damage-minimizing hold.
P612** replacement screws
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No glass fabrication required
NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not intended to replace headers or support bars. Contact CRL Frameless Shower Technical Sales for installation guidance.
Product Warning:
These clamps are not designed to take the place of headers or a support bar.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary by monitor.
Brass Finish Advisory:
Although durable, brass oxidizes over time and may develop a tarnished appearance regardless of packaging or storage. See the Brass Finish Disclaimer in the Technical References for care and maintenance recommendations.
For product availability, technical support, or to order SKU S0GC90BR, contact CRL or add to cart now.
