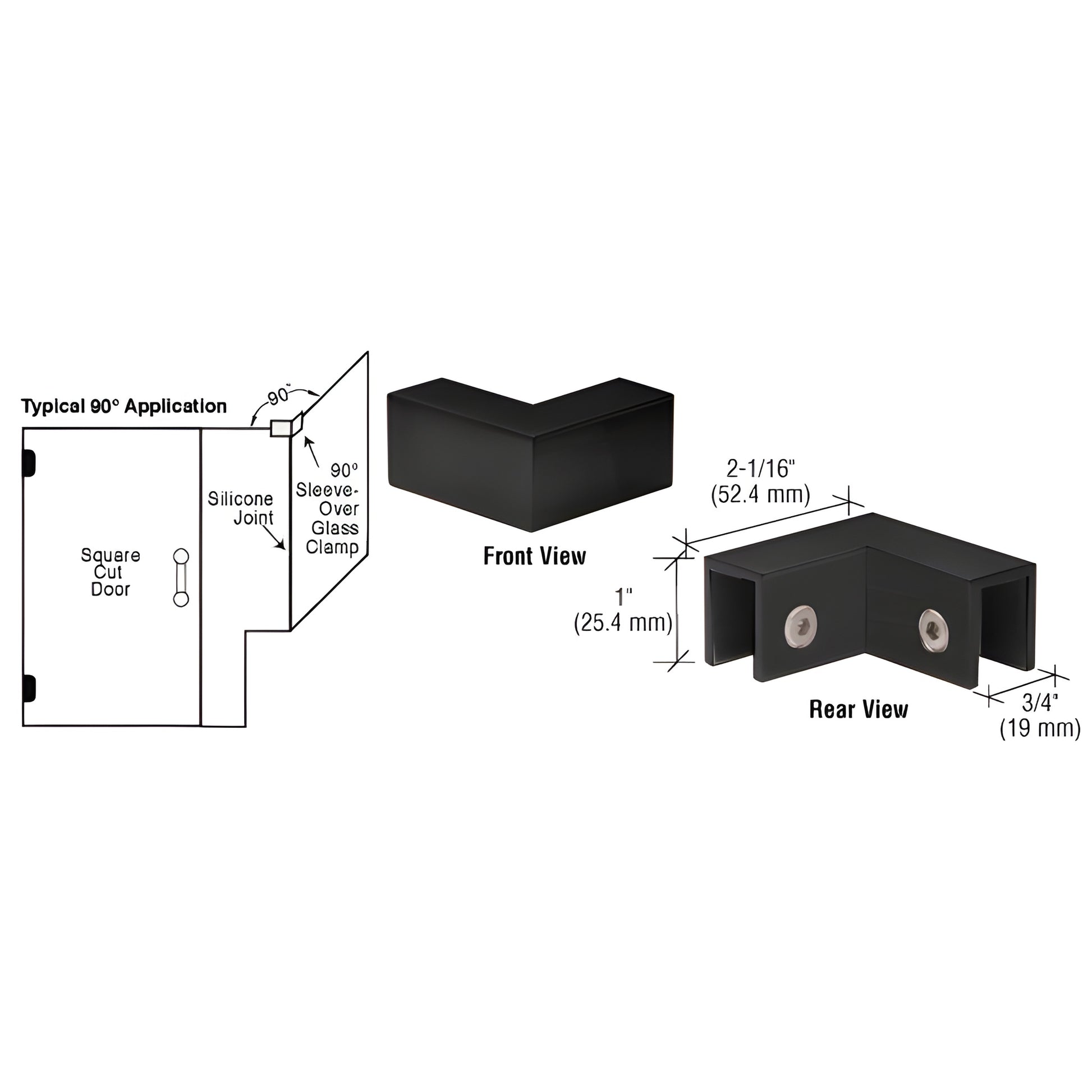

CRL Matte Black 90° Sleeve-Over Glass-to-Glass Clamp
CRL Matte Black 90° Sleeve-Over Glass-to-Glass Clamp
Couldn't load pickup availability
Shipping Weight: 5.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Overview
- Fits 5/16" to 1/2" (8 to 12 mm) thick glass
- Solid brass construction for corrosion resistance
- Use with monolithic tempered glass
- Assists with shear forces and holds panels while sealant cures
CRL Sleeve Over Glass Clamps are sleeve-style, solid-brass clamps engineered for frameless shower glass installations and other tempered glass panel applications. No special glass fabrication is required — simply install over 5/16"–1/2" (8–12 mm) monolithic tempered glass. The clamps provide a mechanical fastener to resist shear forces and temporarily secure panels while silicone sealant cures, preventing movement and helping maintain watertight joints. Clamps tighten with nylon-tipped Allen set screws to protect glass surfaces.
P612** replacement screws
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No glass fabrication required
NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not designed to replace headers or a support bar. Contact CRL Frameless Shower Technical Sales for installation guidance and code-compliant support details.
Product Warning:
These clamps are not designed to take the place of headers or a support bar.
