• CRL S0GC90SN satin-nickel brass sleeve-over 90 glass-to-glass clamp for 8-12mm (5/16-1/2") tempered glass.
1 1

CRL

CRL Satin Nickel 90° Sleeve-Over Glass Clamp for Frameless Glass

CRL Satin Nickel 90° Sleeve-Over Glass Clamp for Frameless Glass

$43.33 CAD
$43.33 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# S0GC90SN
Shipping Weight: 5.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Nickel
Glass To Glass Angle
90
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • Fits 5/16" to 1/2" (8 to 12 mm) thick glass
  • Solid brass sleeve-over clamp
  • For monolithic tempered glass panels
  • Helps resist shear forces and holds panels while sealant cures

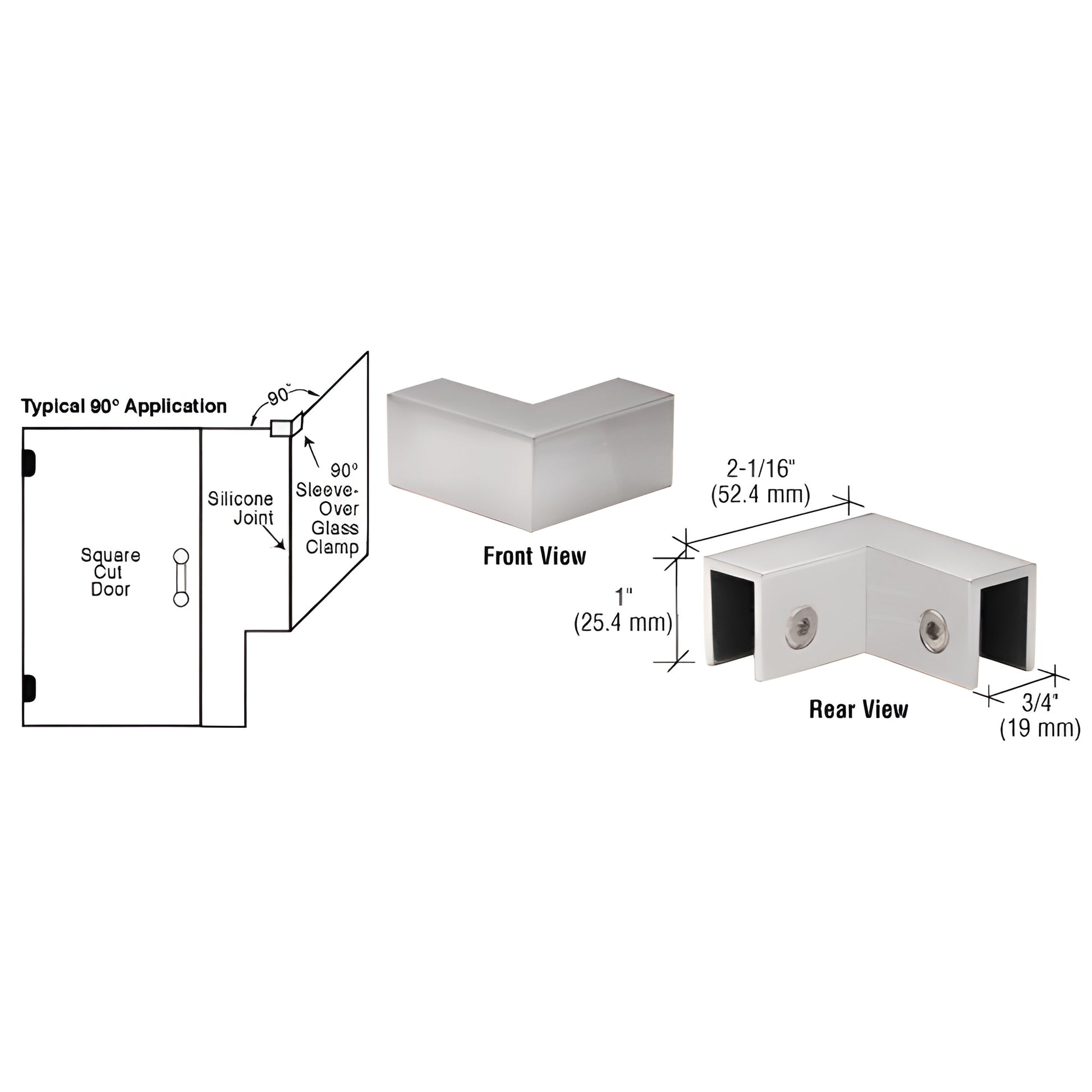

CRL Sleeve Over Glass Clamps (SKU S0GC90SN) are heavy-duty, solid brass sleeve-over clamps engineered for frameless shower glass and other tempered glass applications. No special edge fabrication is required. Use with monolithic tempered glass to support shear loads and to hold panels in position while silicone sealant cures—sealant provides watertight joints and final pull strength. Clamps secure with nylon-tipped Allen set screws.

P612** replacement screws


SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No glass fabrication required

NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not intended to replace headers or a support bar. Contact CRL Frameless Shower Technical Sales for installation guidance.

Product Warning:
These clamps are not designed to take the place of headers or a support bar.

Most shipping weights are approximate and have not been verified. If exact weight is required for shipping cost calculation, request it from CRL Customer Service before ordering. Product images are actual or representative; colors may vary by monitor.


Order CRL sleeve-over glass clamps for secure frameless shower installations — add to cart or contact CRL Technical Sales for help specifying the correct clamps.
