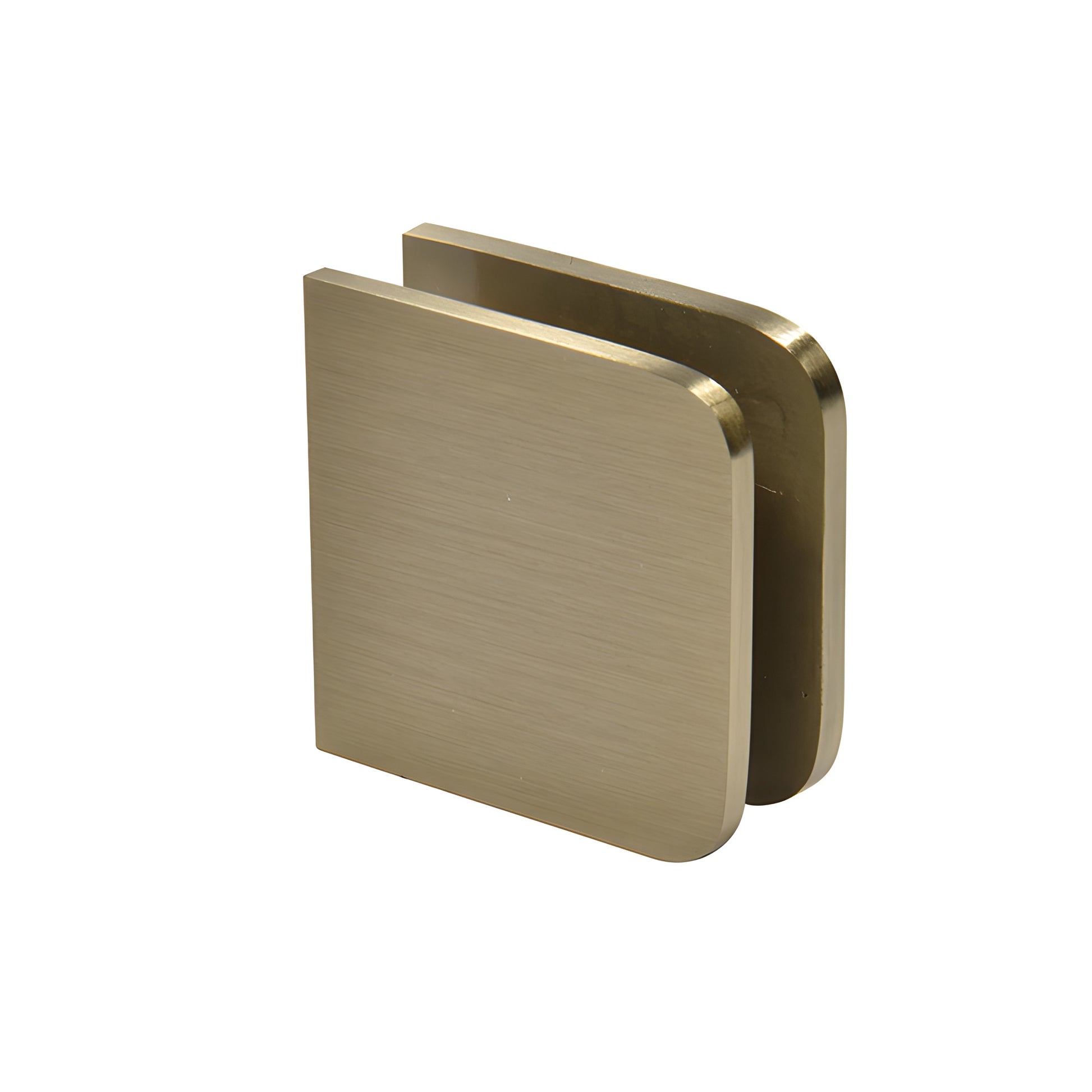

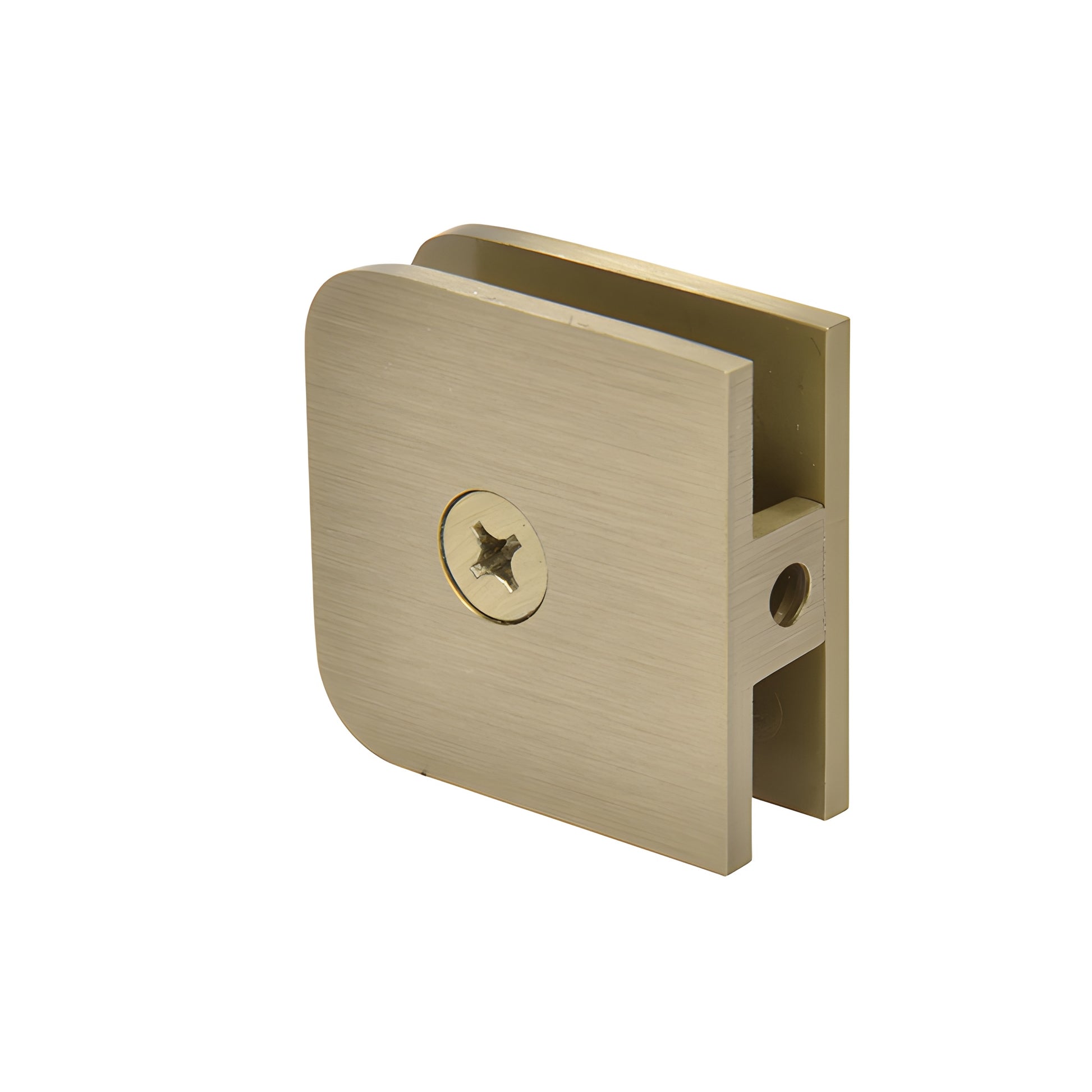

CRL Brushed Bronze U-Clamp for Fixed Shower Glass Panel
CRL Brushed Bronze U-Clamp for Fixed Shower Glass Panel
Regular price
$46.58 CAD
Regular price
Sale price
$46.58 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UC77BBRZ
Shipping Weight: 2.24 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.24 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Bronze

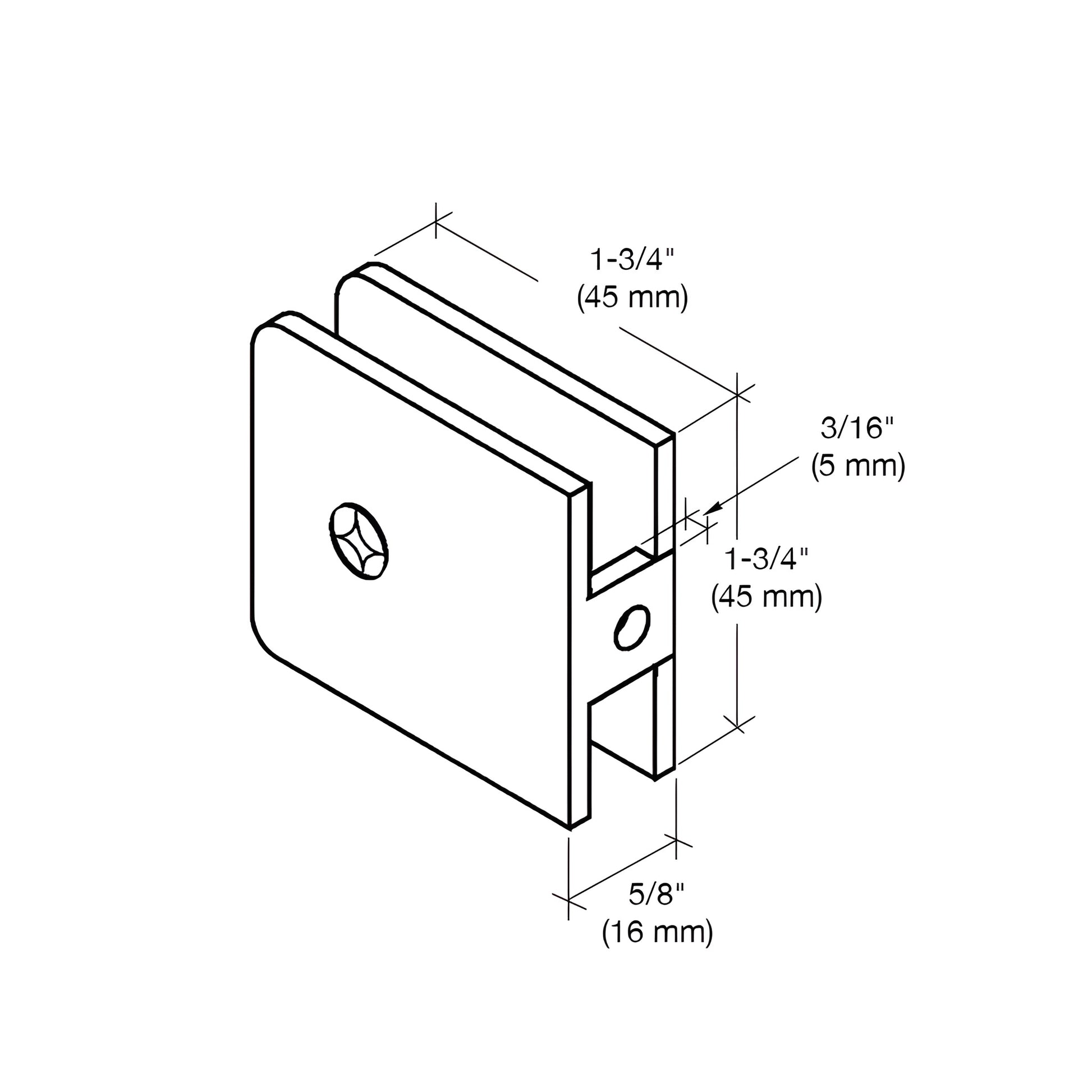

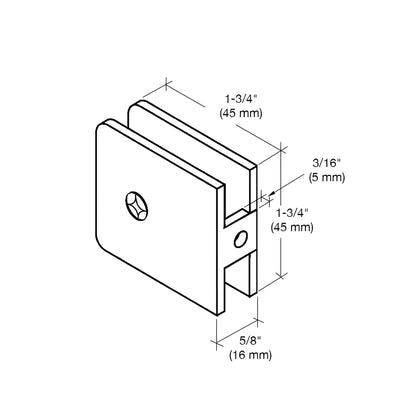

Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Height
1-3/4 in. (44 mm)
Length
1-3/4 in. (44 mm)
Material
Brass
Mounting Type
Wall Mount
Overview
- For 5/16" to 1/2" (8 to 12 mm) thick glass
- Secures fixed glass panels in frameless shower enclosures
- Solid brass construction for corrosion resistance
- Creates an all-glass look as an alternative to traditional U-channel
- Glass fabrication required to accommodate clamps
- Use with monolithic tempered glass
CRL Standard Fixed Panel U-Clamps (SKU: UC77BBRZ) mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels in frameless shower installations. Clearance between the glass and wall is 5/32" to 3/16" (4 to 5 mm); clear silicone can seal the gap for a water-resistant, finished appearance.
Our solid brass traditional glass clamps are a premium choice for contemporary frameless shower enclosures. They preserve the minimalist, all-glass aesthetic while providing durable support. Each clamp includes the appropriate mounting screws and one set of clear gaskets; extra Cat. No. UCG77 clear gaskets are available separately.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screws (for wall clamps) and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.
Order UC77BBRZ solid brass glass clamps today to finish your frameless shower with a clean, professional look.
