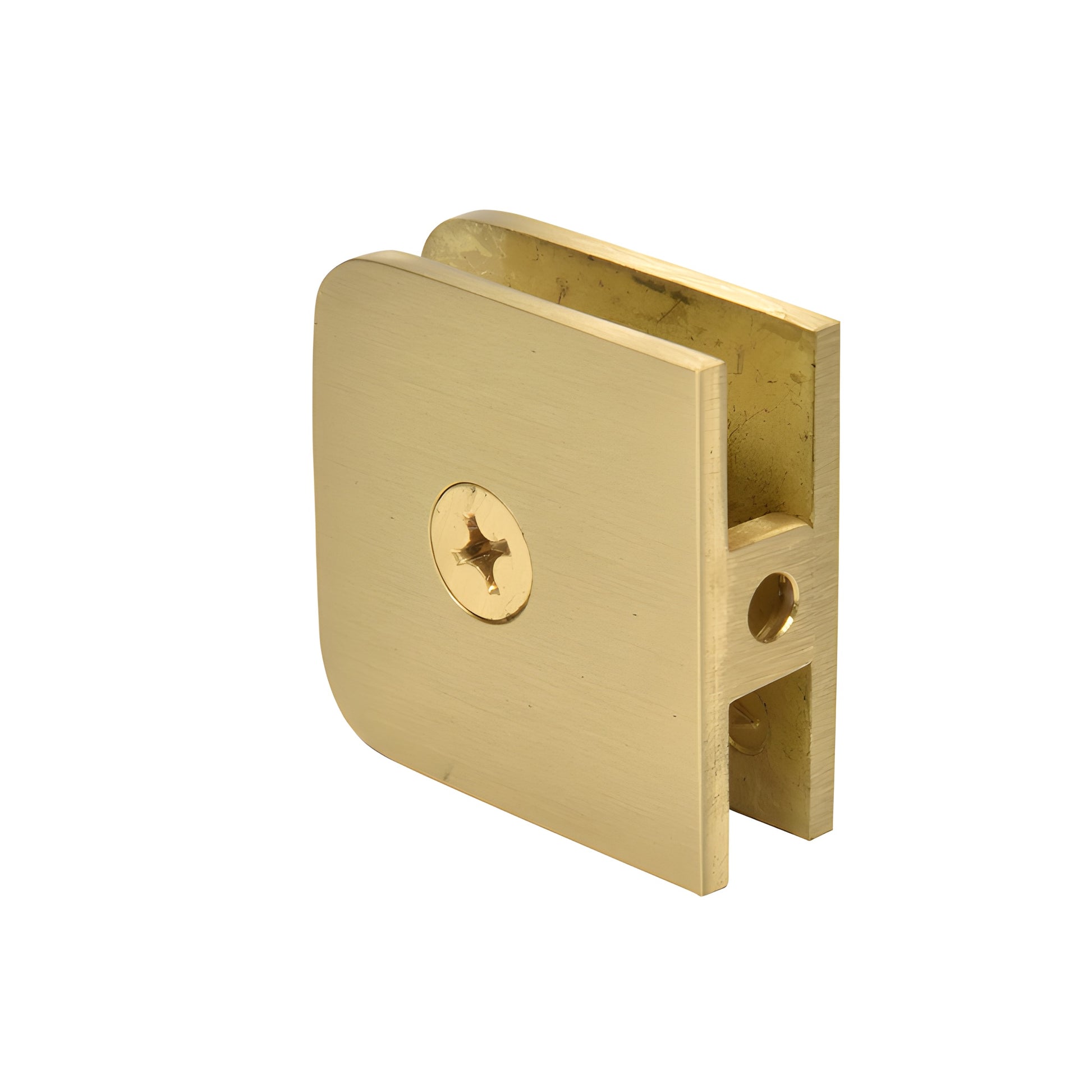

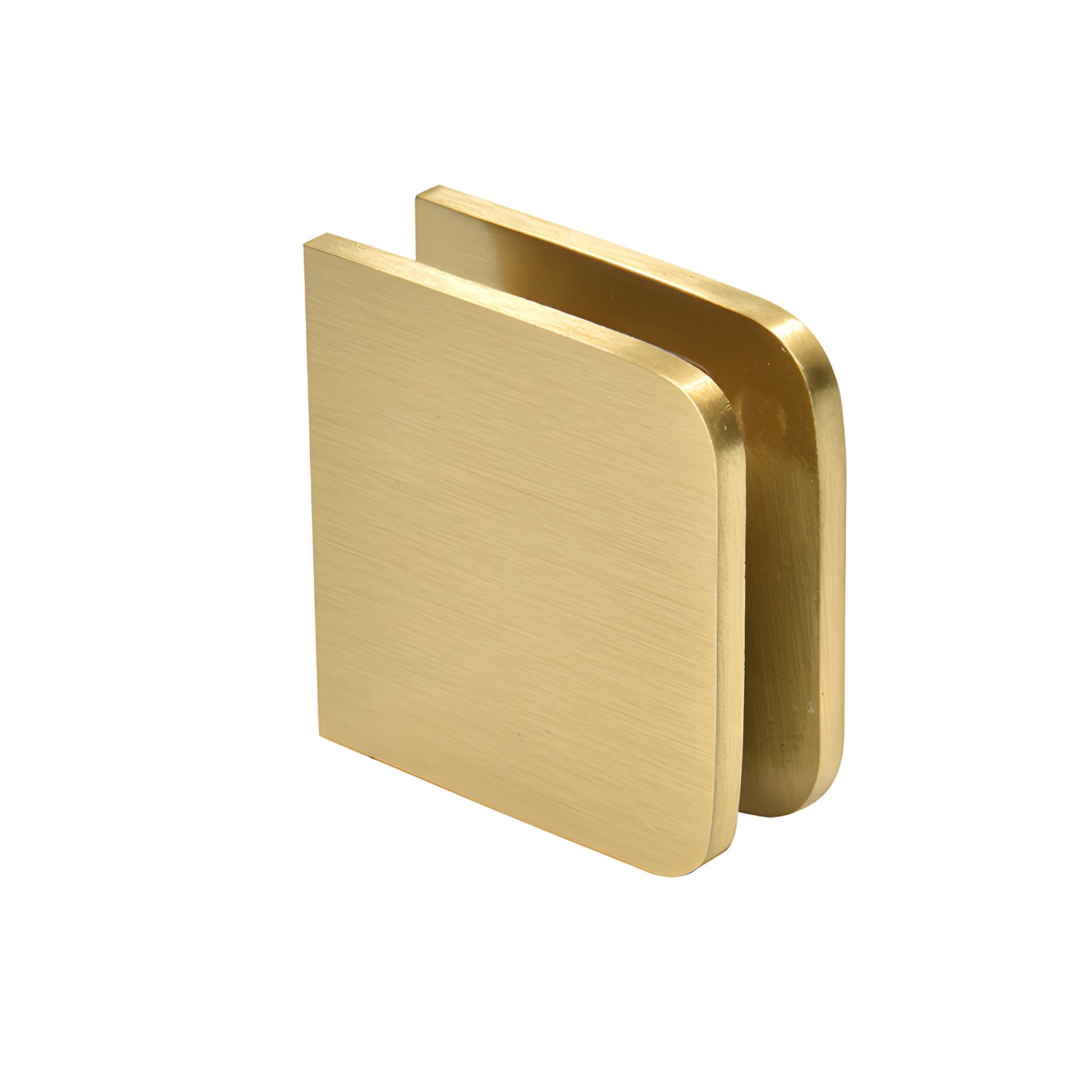

CRL Satin Brass U-Clamp for Fixed Glass Shower Panel
Item# UC77SB
Shipping Weight: 5.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Satin Brass

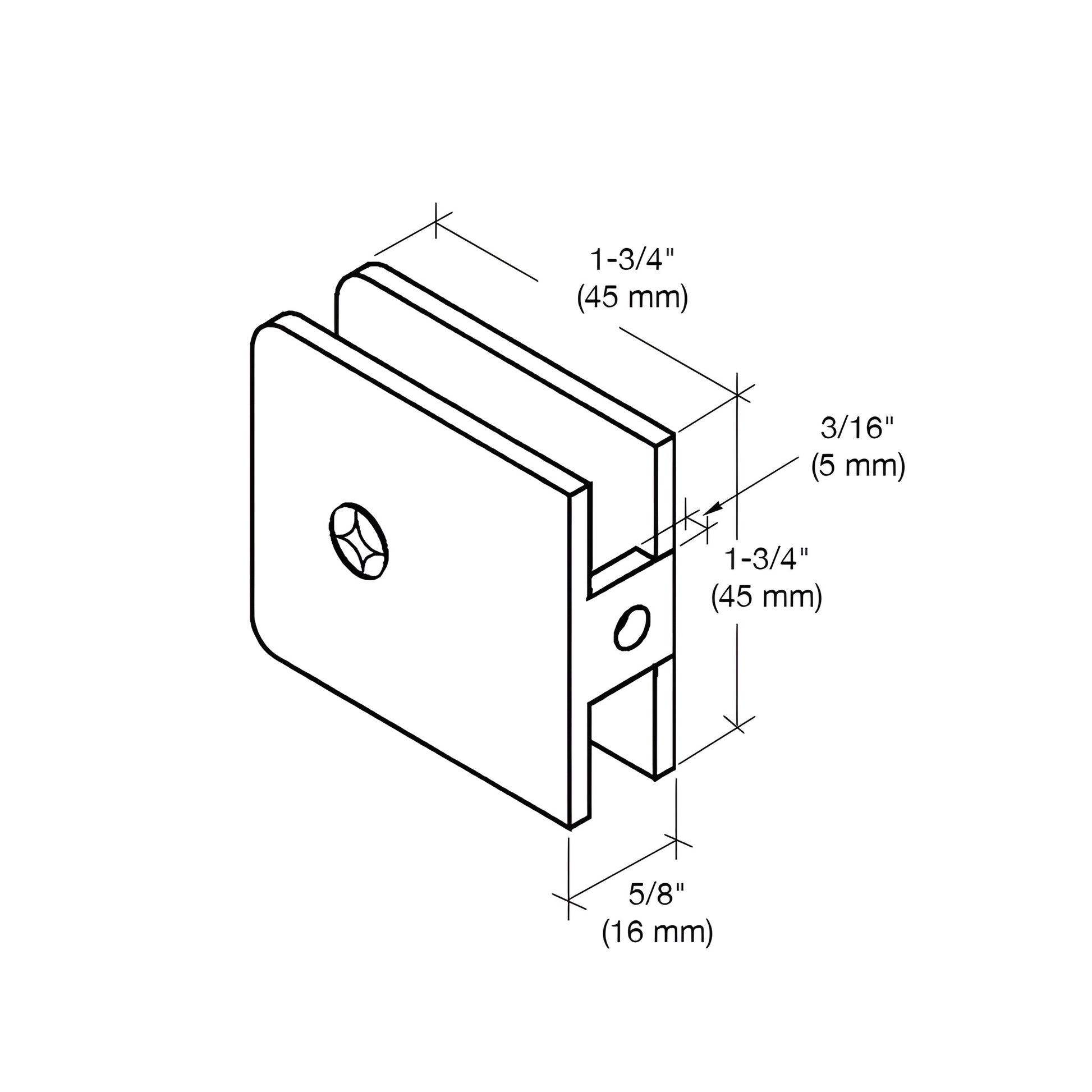

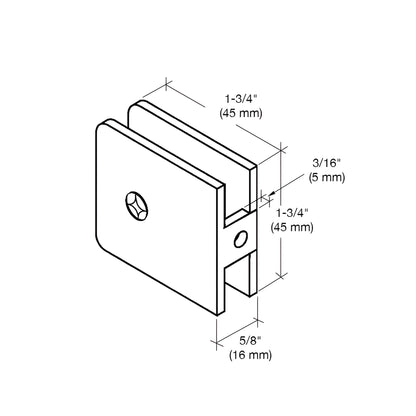

Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Height
1-3/4 in. (44 mm)
Length
1-3/4 in. (44 mm)
Material
Brass
Mounting Type
Wall Mount
- For 5/16" to 1/2" (8 to 12 mm) thick glass
- Secures fixed glass panels in frameless shower enclosures
- Solid brass construction
- Provides a clean, near "all-glass" appearance compared to traditional U-channel
- Glass fabrication required to accommodate clamps
- Use monolithic tempered glass
CRL Standard Fixed Panel U-Clamps (SKU: UC77SB) mount directly to wall, ceiling, or floor to secure vertical fixed glass panels in frameless shower installations. Clearance between glass and wall is 5/32" to 3/16" (4 to 5 mm); clear silicone may be used to seal the gap for a water-resistant, finished look.
Our solid brass Traditional Glass Clamps are designed specifically for contemporary frameless shower enclosures, offering a cleaner aesthetic than U-channel while maintaining strong, durable support. Key differentiators: solid brass materials, multiple finish options to match CRL shower door hinges, and included mounting screws plus one set of clear gaskets. Extra clear gaskets (Cat. No. UCG77) available separately.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screws (for wall clamps) and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.
Most shipping weights are approximate. If exact weight is required for shipping cost calculations, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor.
Brass Finish Advisory:
Brass is durable but can oxidize and develop a tarnished appearance over time, regardless of packaging. See the Brass Finish Disclaimer in Technical References for care and maintenance.
Order the UC77SB solid brass glass clamps for a durable, low-profile solution for frameless shower fixed panels — add to cart or contact us for help with specifications.
