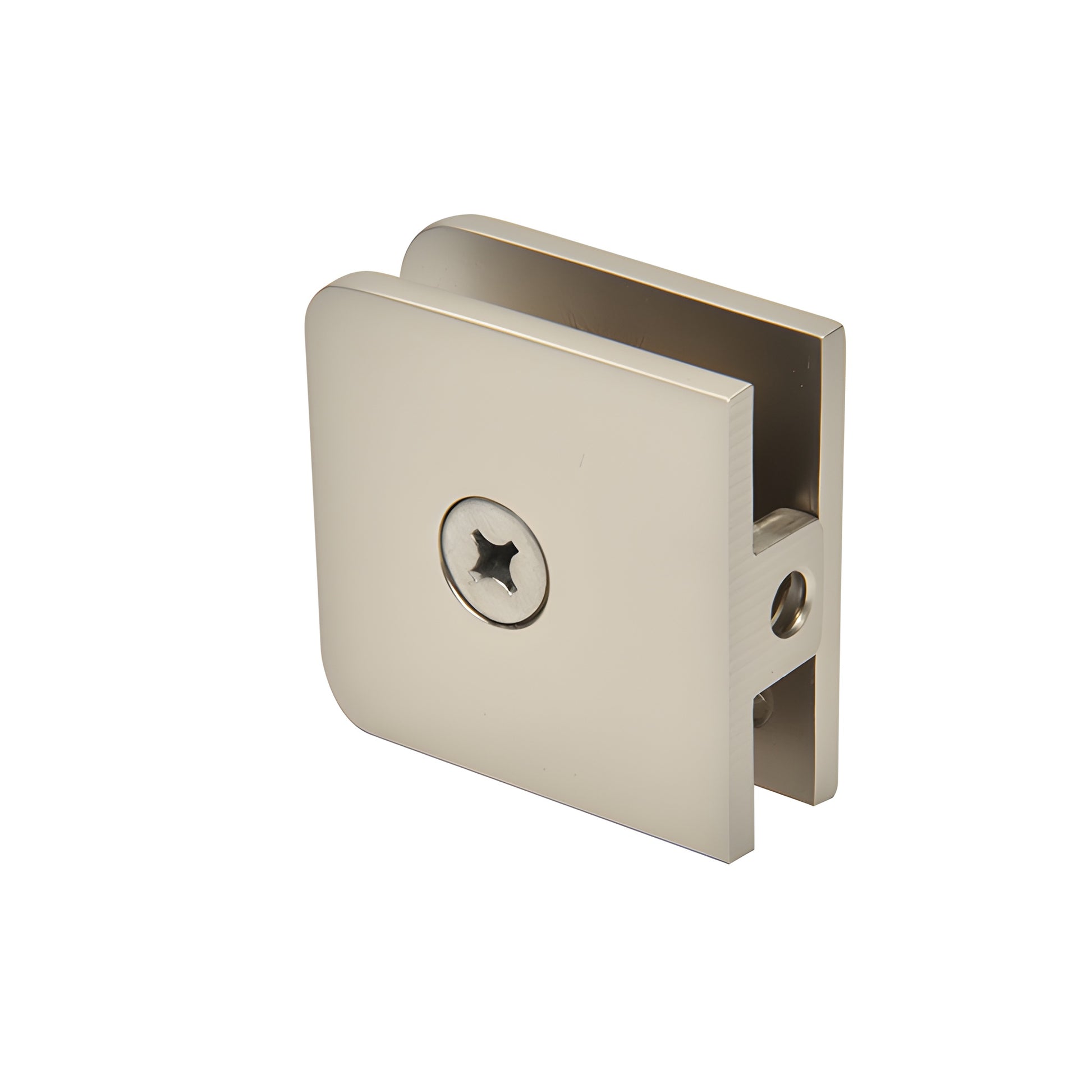

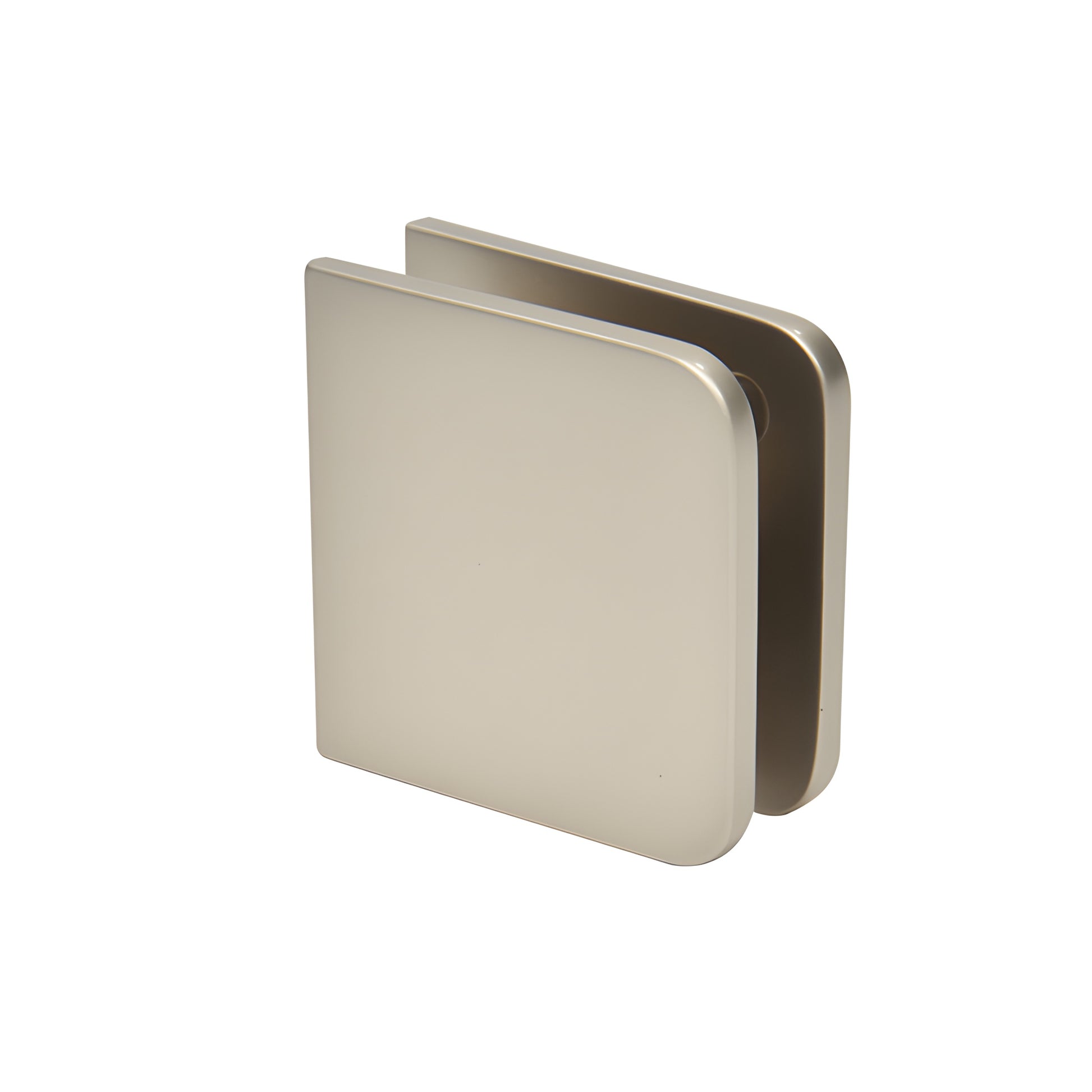

CRL Satin Nickel U-Clamp for Fixed Shower Glass Panel

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Secures fixed panels of glass for frameless shower enclosures
• Solid brass construction
• Provides an all-glass appearance compared to traditional U-channel
• Glass fabrication required to accommodate clamps
• Use monolithic tempered glass

CRL Standard Fixed Panel U-Clamps (SKU: UC77SN) mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels in frameless shower installations. Clearance between the glass and wall is 5/32" to 3/16" (4 to 5 mm); clear silicone can be applied to seal the gap for a clean, water-resistant finish.

Our solid brass Traditional Glass Clamps are engineered for contemporary frameless shower glass applications, offering a sleek alternative to U-channel that helps preserve an "all-glass" look. Each clamp includes appropriate mounting screws and one set of clear gaskets; extra clear gaskets (Cat. No. UCG77) are available separately.

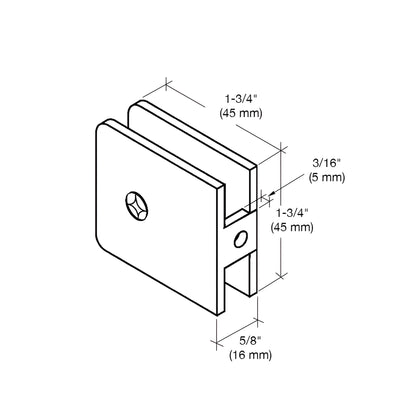

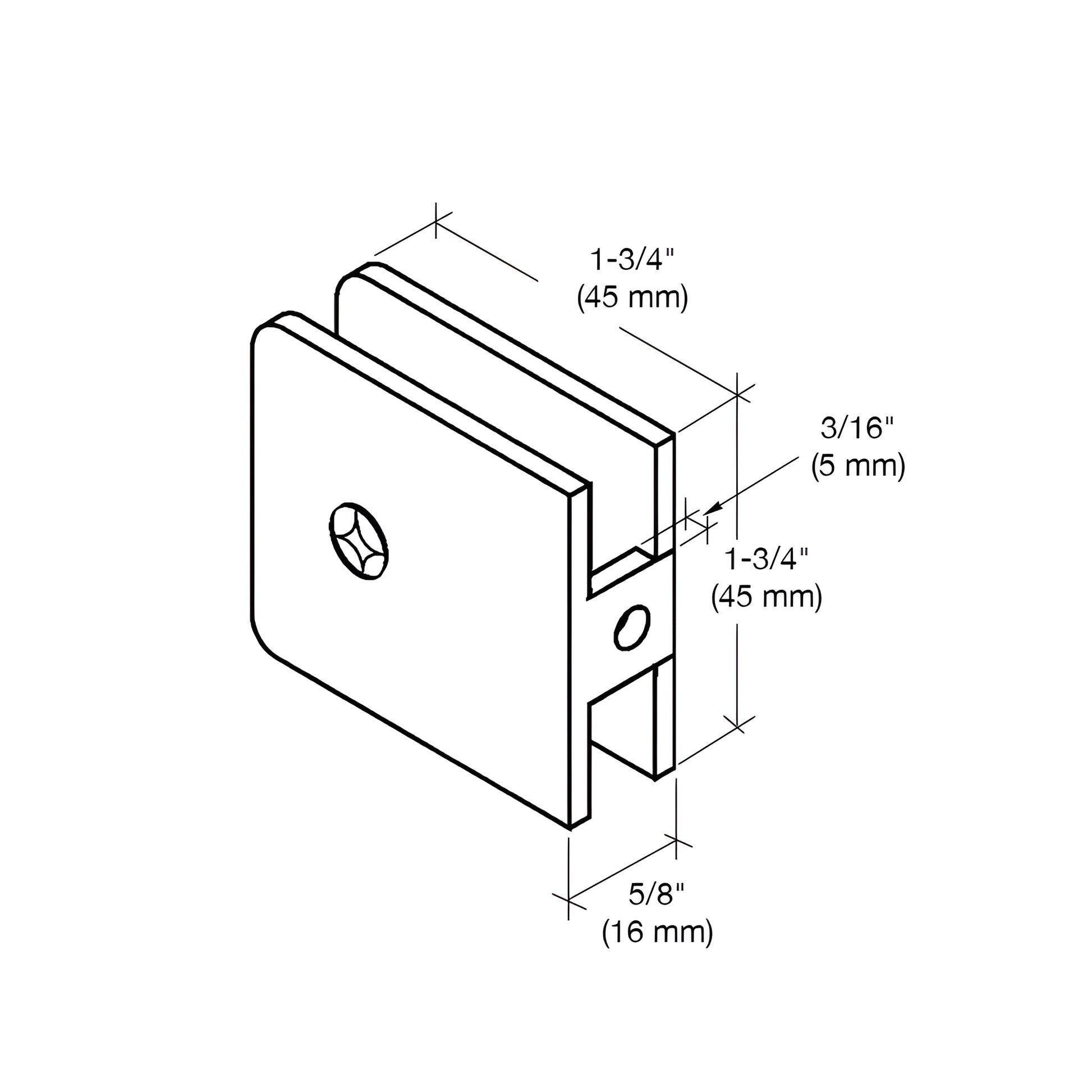

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screws (for wall clamps) and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.

Order UC77SN solid brass frameless shower glass clamps today to complete your all-glass enclosure.
