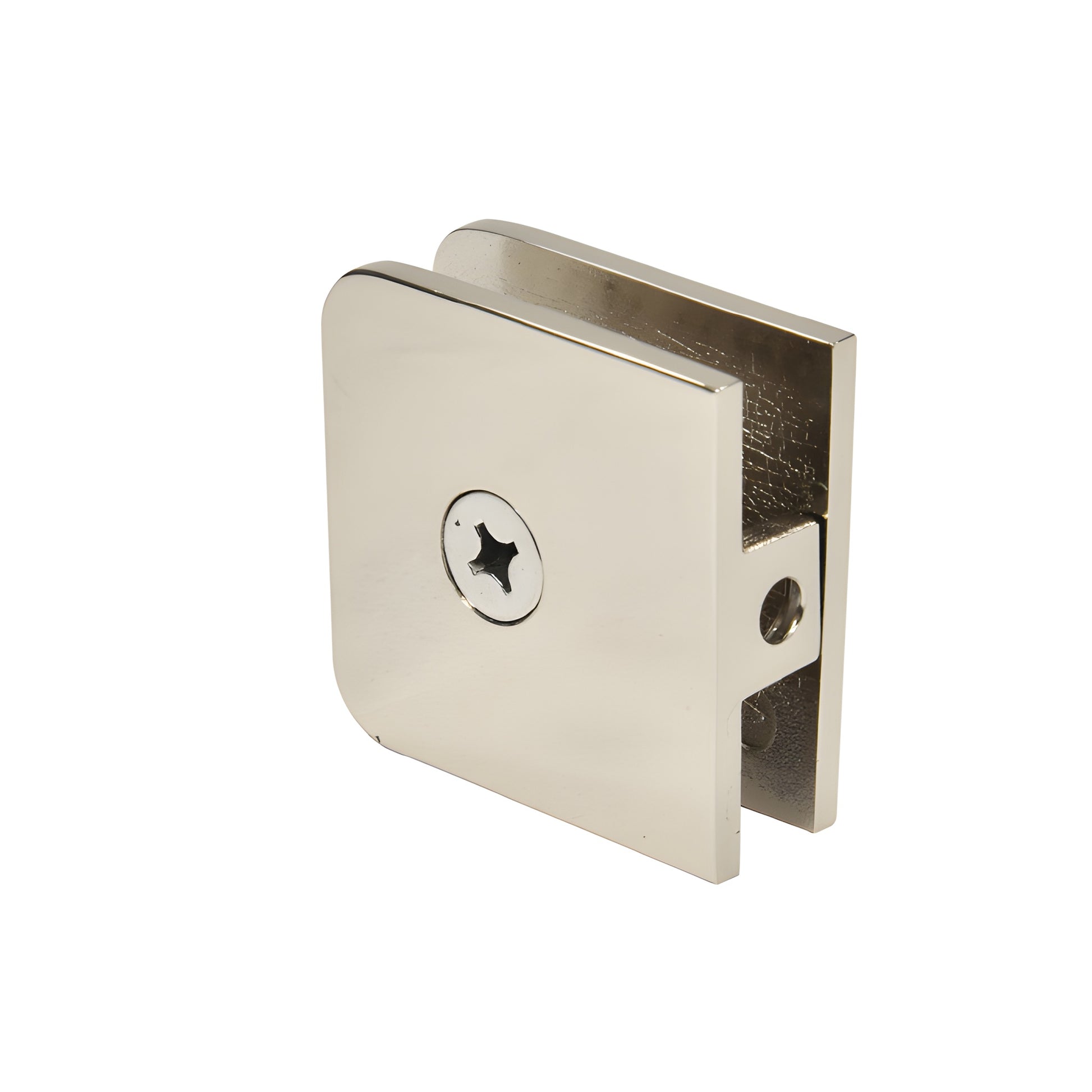

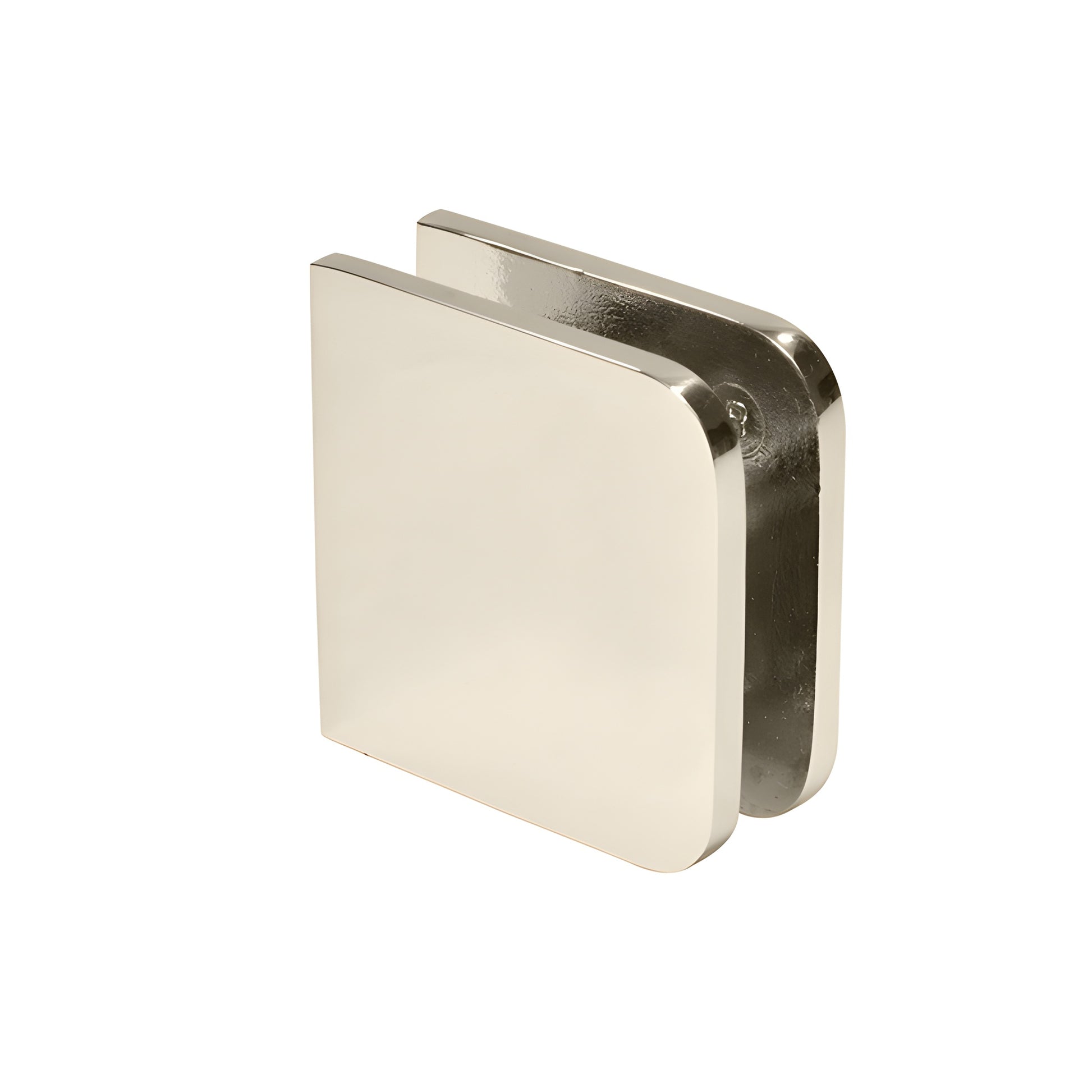

CRL Polished Nickel Fixed Glass Panel U-Clamp for Shower Doors

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Used to secure fixed panels of glass for frameless shower enclosures
• Solid brass construction
• Provides an "all-glass" look as an alternative to traditional U-channel
• Glass fabrication required to accommodate clamps
• Use monolithic tempered glass

CRL Standard Fixed Panel U-Clamps (SKU: UC77PN) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels in frameless shower doors and enclosures. Clearance between the glass and wall is 5/32" to 3/16" (4 to 5 mm); clear silicone can be applied to seal the gap for a water-resistant, finished appearance.

Our solid brass Traditional Glass Clamps are designed for contemporary shower enclosures and frameless shower door applications. They help maintain a minimal, all-glass aesthetic compared to U-channel and are offered in finishes that coordinate with our Shower Door Hinges. Each clamp includes appropriate mounting screws and one set of clear gaskets. Extra clear gaskets (Cat. No. UCG77) are available separately.

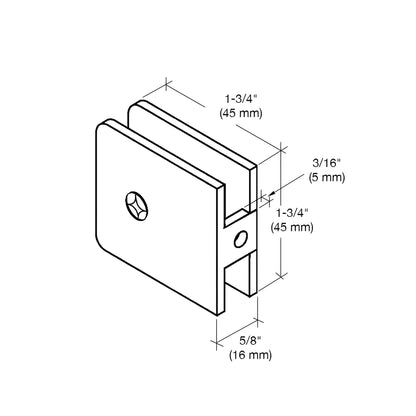

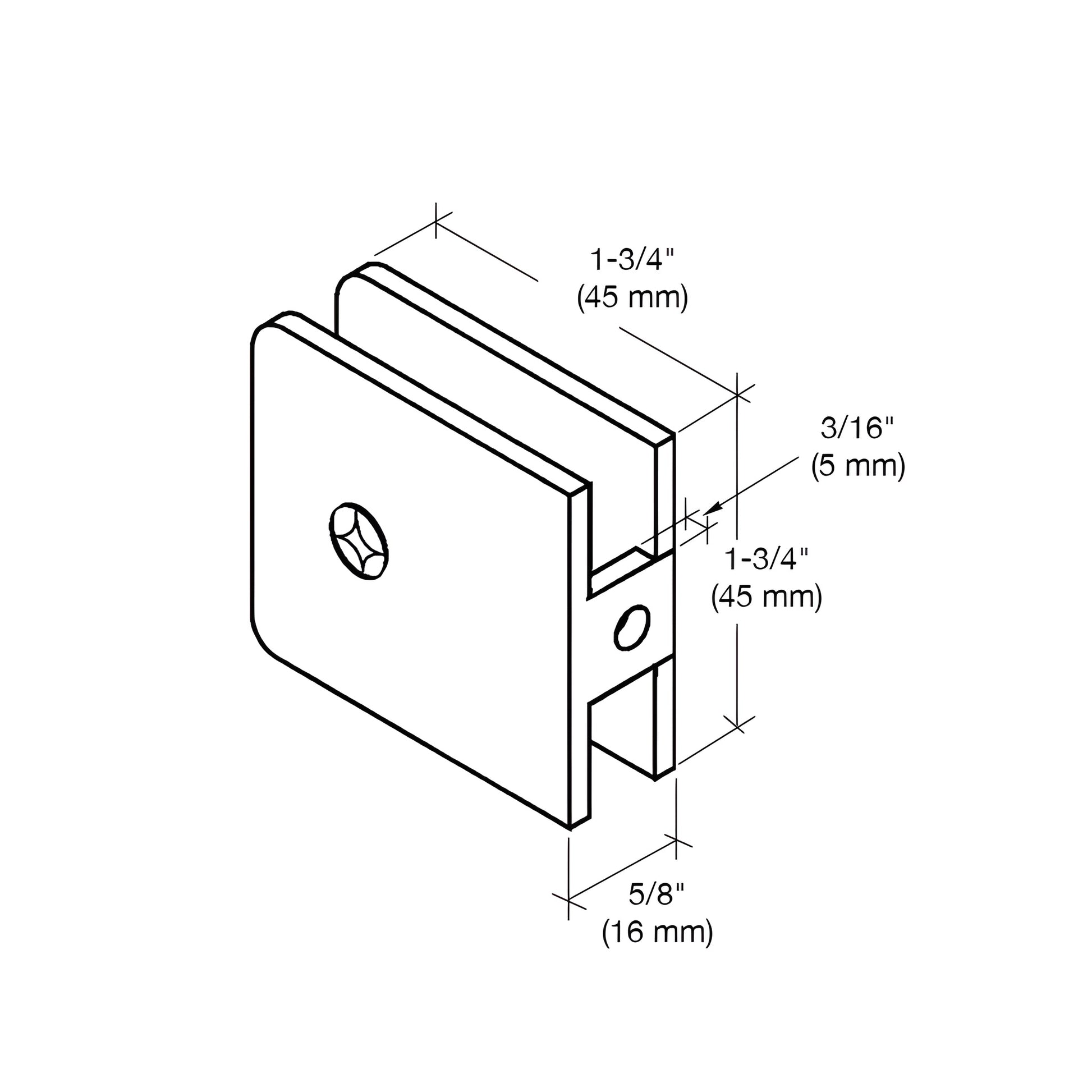

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screws (for wall clamps) and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.

Choose UC77PN solid brass glass clamps for durable, low-profile frameless shower door mounting—order now to complete your all-glass shower design.
