CRL Polished Brass Fixed Glass Panel U-Clamp for Shower Doors
Item# UC77BR
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Polished Brass
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Height
1-3/4 in. (44 mm)
Length
1-3/4 in. (44 mm)
Material
Brass
Mounting Type
Wall Mount
- For 5/16" to 1/2" (8 to 12 mm) thick glass
- Used to secure fixed panels of glass for frameless shower enclosures
- Solid brass construction
- Provides an all-glass look as an alternative to U-channel
- Glass fabrication required to accommodate clamps
- Use monolithic tempered glass

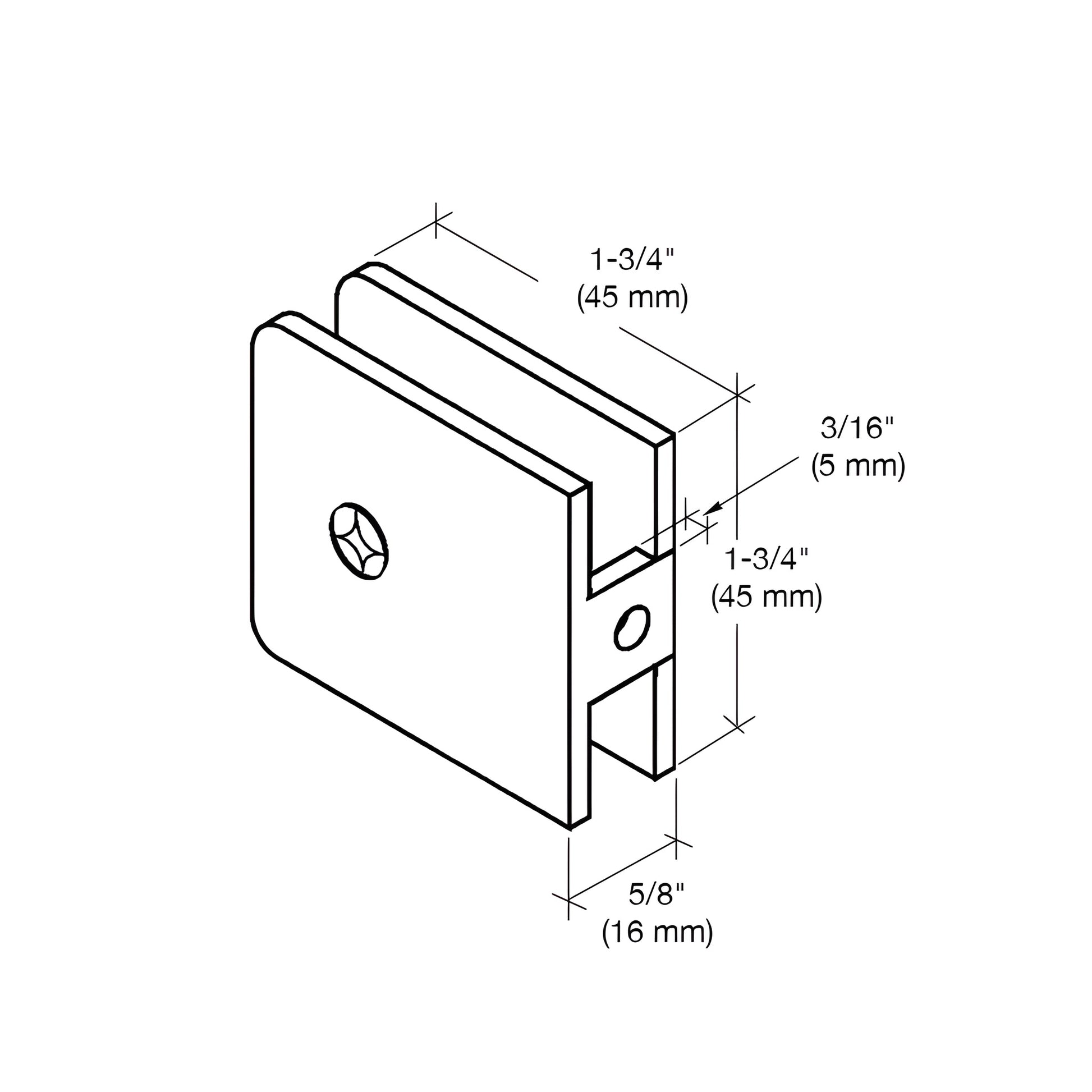

CRL Standard Fixed Panel U-Clamps mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels in frameless shower installations. Clearance between the glass and wall is 5/32" to 3/16" (4 to 5 mm); clear silicone can seal the gap for a clean, water-resistant finish.
Our solid brass traditional glass clamps are ideal for contemporary frameless shower glass installations. They preserve a minimal, all-glass appearance while offering a cleaner visual alternative to U-channel. Each clamp features solid brass construction and finishes that match our Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included. Extra clear gaskets (Cat. No. UCG77) may be ordered separately.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screws (for wall clamps) and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.
SKU: UC77BR
Most shipping weights are approximate. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Brass Finish Advisory:
Although durable, brass can oxidize over time and develop a tarnished appearance regardless of packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance.
Order UC77BR solid brass frameless shower glass clamps today to complete your contemporary shower enclosure—contact us or add to cart to get started.
