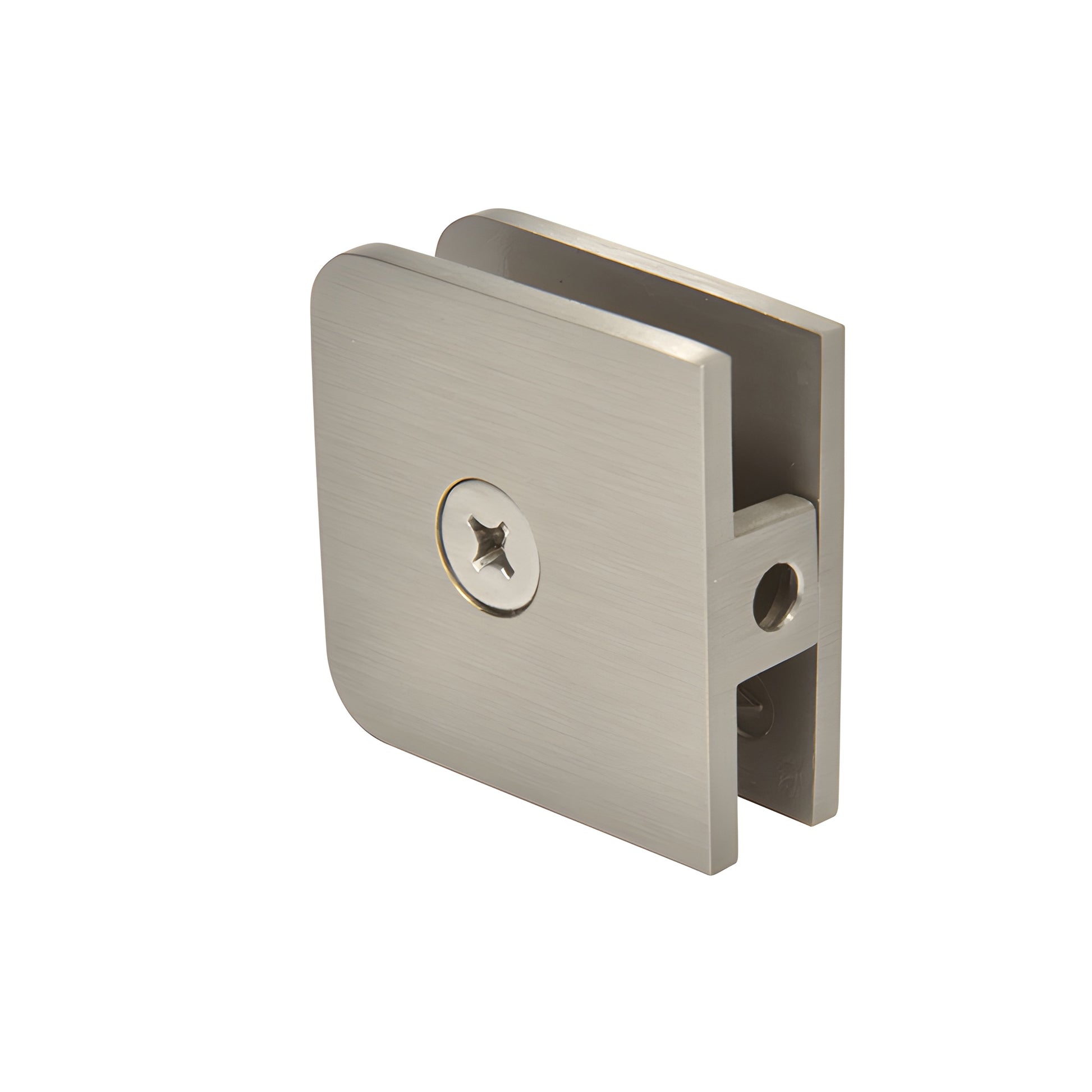

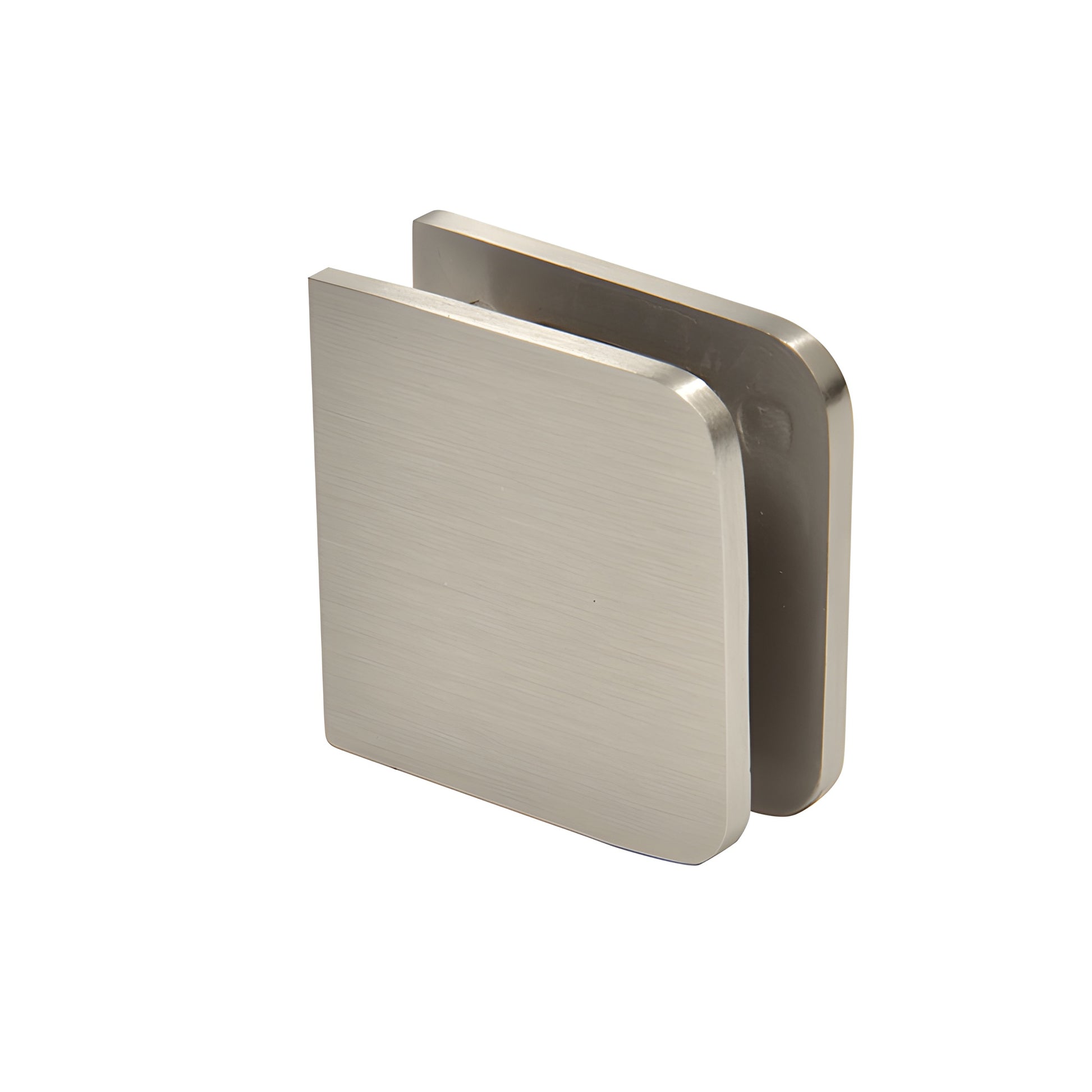

CRL Brushed Nickel U-Clamp for Fixed Glass Shower Panel

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Secures fixed glass panels for frameless shower enclosures
• Solid brass construction
• Provides an all-glass look as an alternative to traditional U-channel
• Glass fabrication required to accommodate clamps
• Use monolithic tempered glass

CRL Standard Fixed Panel U-Clamps (SKU: UC77BN) mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between glass and wall is 5/32" to 3/16" (4 to 5 mm); clear silicone can be used to seal the gap for a clean, water-resistant finish.

Our solid brass Traditional Glass Clamps are engineered for contemporary frameless shower enclosures—helping maintain an uninterrupted glass appearance while avoiding bulky U-channel. Each clamp features solid brass construction and finishes that coordinate with our Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included; extra Cat. No. UCG77 clear gaskets available separately.

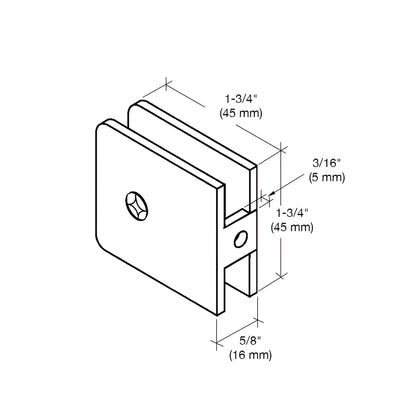

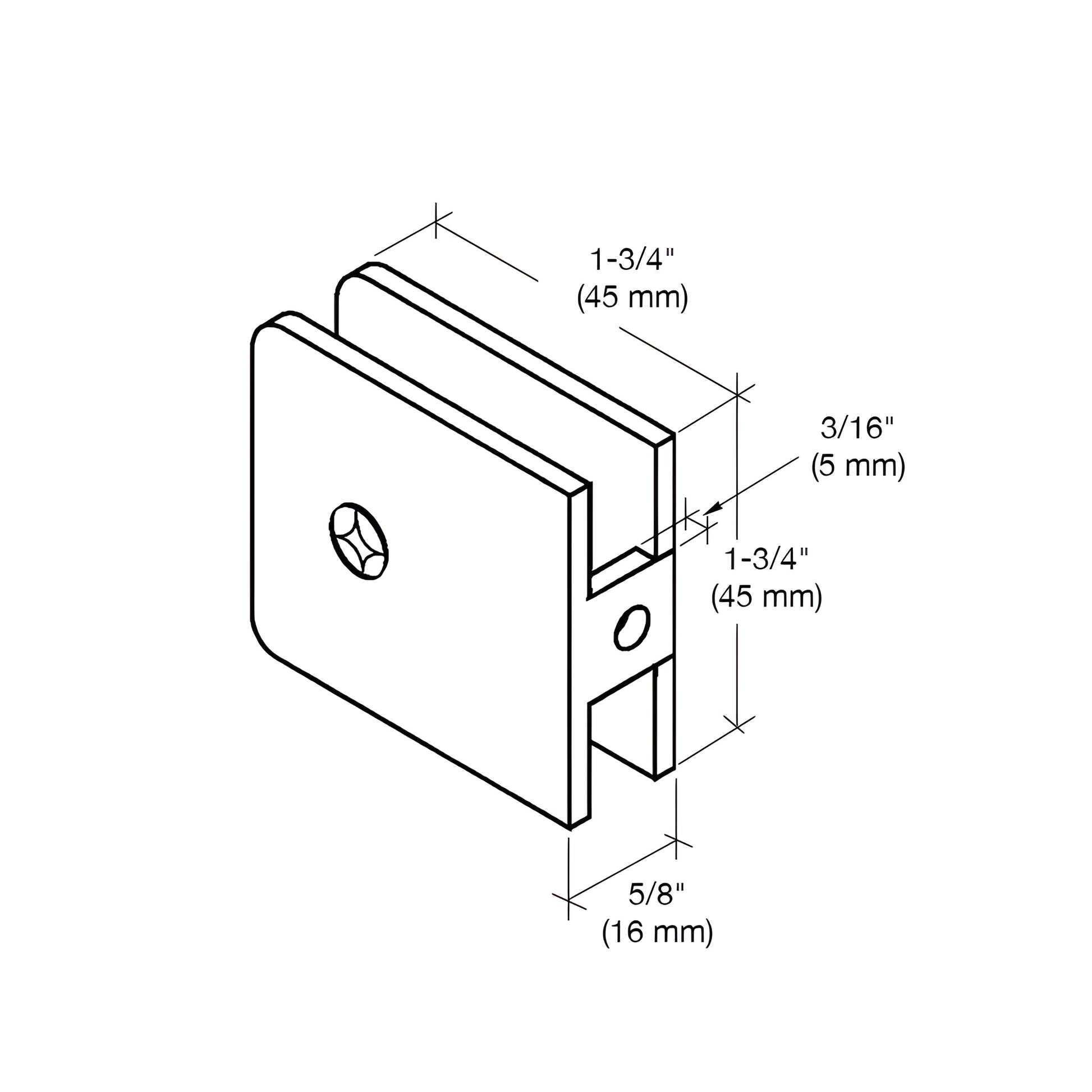

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screws (for wall clamps) and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.

Order UC77BN solid brass glass clamps today to complete your frameless shower installation.
