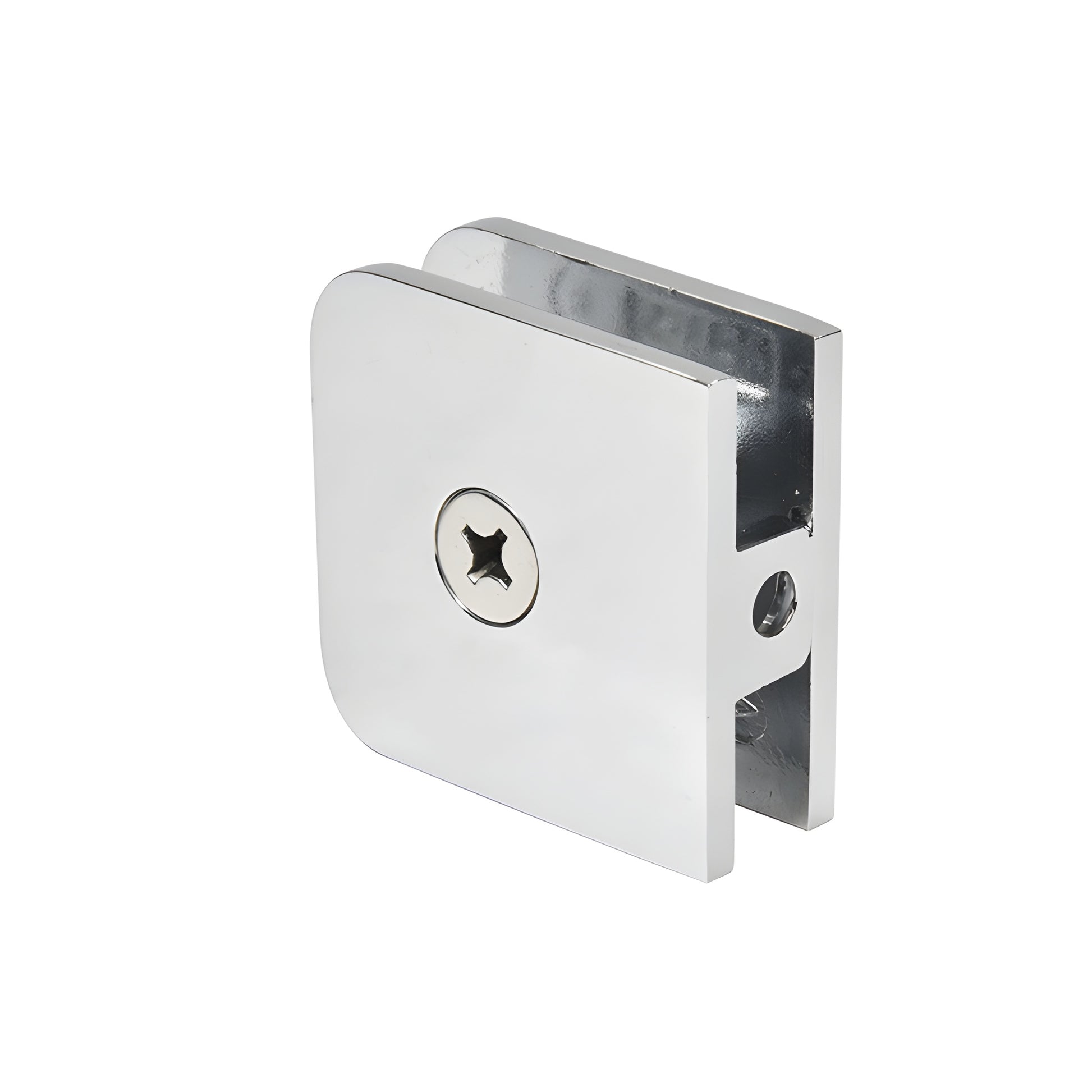

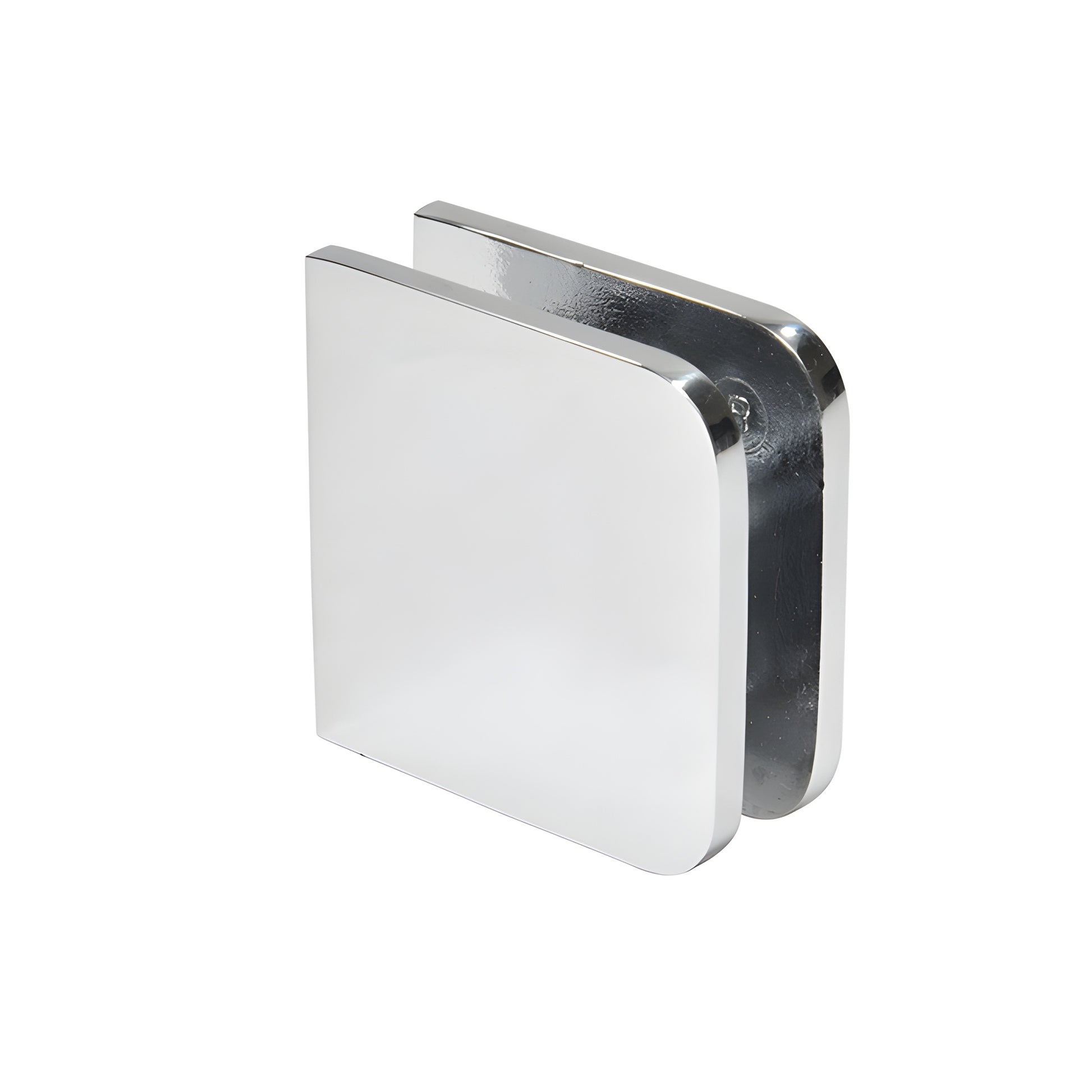

CRL Polished Chrome Traditional Fixed Glass Panel U-Clamp
CRL Polished Chrome Traditional Fixed Glass Panel U-Clamp
Regular price
$31.41 CAD
Regular price
Sale price
$31.41 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UC77CH
Shipping Weight: 4.832 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.832 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome

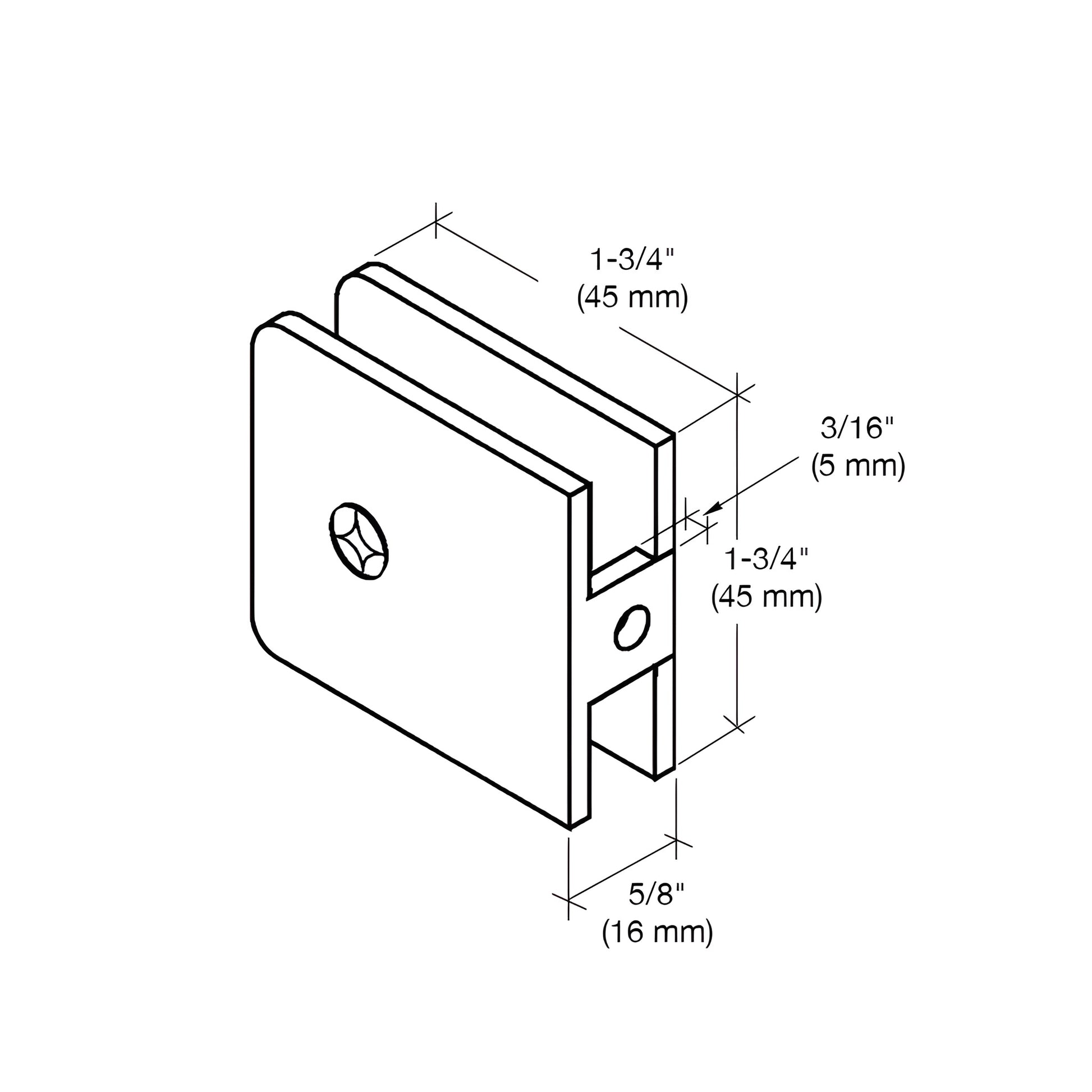

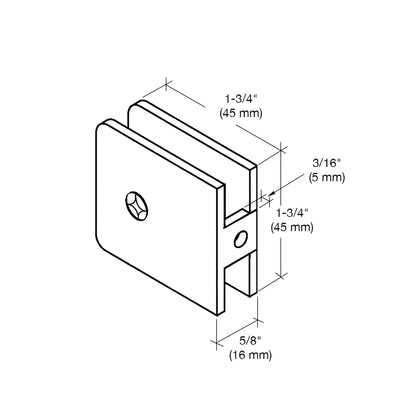

Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Height
1-3/4 in. (44 mm)
Length
1-3/4 in. (44 mm)
Material
Brass
Mounting Type
Wall Mount
Overview
- For 5/16" to 1/2" (8 to 12 mm) thick glass
- Secures fixed panels of glass in frameless shower enclosures
- Solid brass construction for durability and corrosion resistance
- Creates an all‑glass look—alternative to traditional U-channel
- Glass fabrication required to accommodate clamps
- Use monolithic tempered shower glass
CRL Standard Fixed Panel U-Clamps (SKU: UC77CH) mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels in frameless shower installations. Clearance between the glass and wall is 5/32" to 3/16" (4 to 5 mm); clear silicone can seal the gap for a clean, water‑resistant finish.
Our solid brass traditional glass clamps are engineered for contemporary frameless shower enclosures, helping maintain a minimal, all‑glass appearance compared with U‑channel systems. Each clamp ships with appropriate mounting screws (for wall clamps) and one set of clear gaskets. Extra clear gaskets are available as Cat. No. UCG77.
SPECIFICATIONS:
Material: Solid brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screws (for wall clamps) and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.
Order UC77CH solid brass fixed panel clamps today to finish your frameless shower with a clean, durable all‑glass look.
