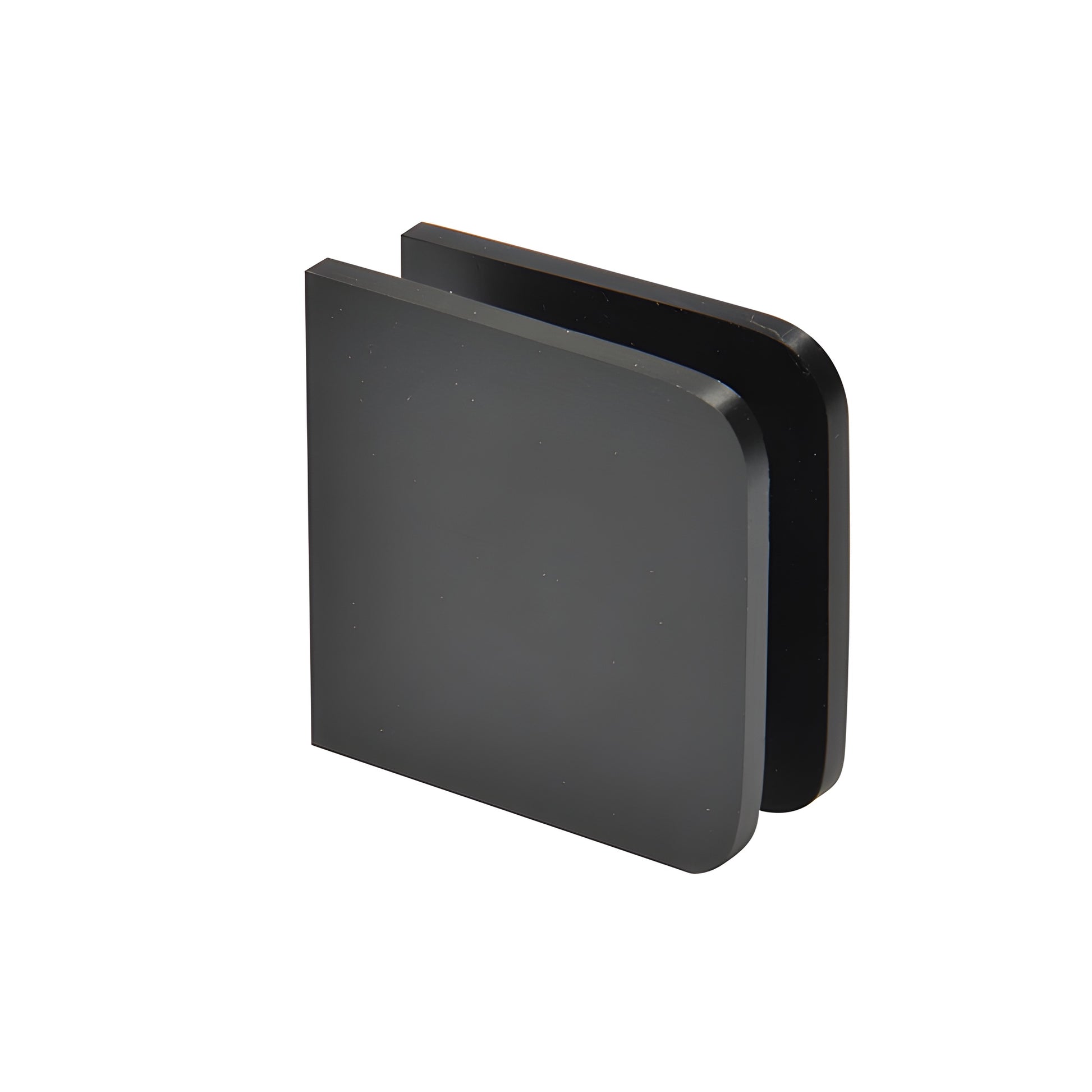

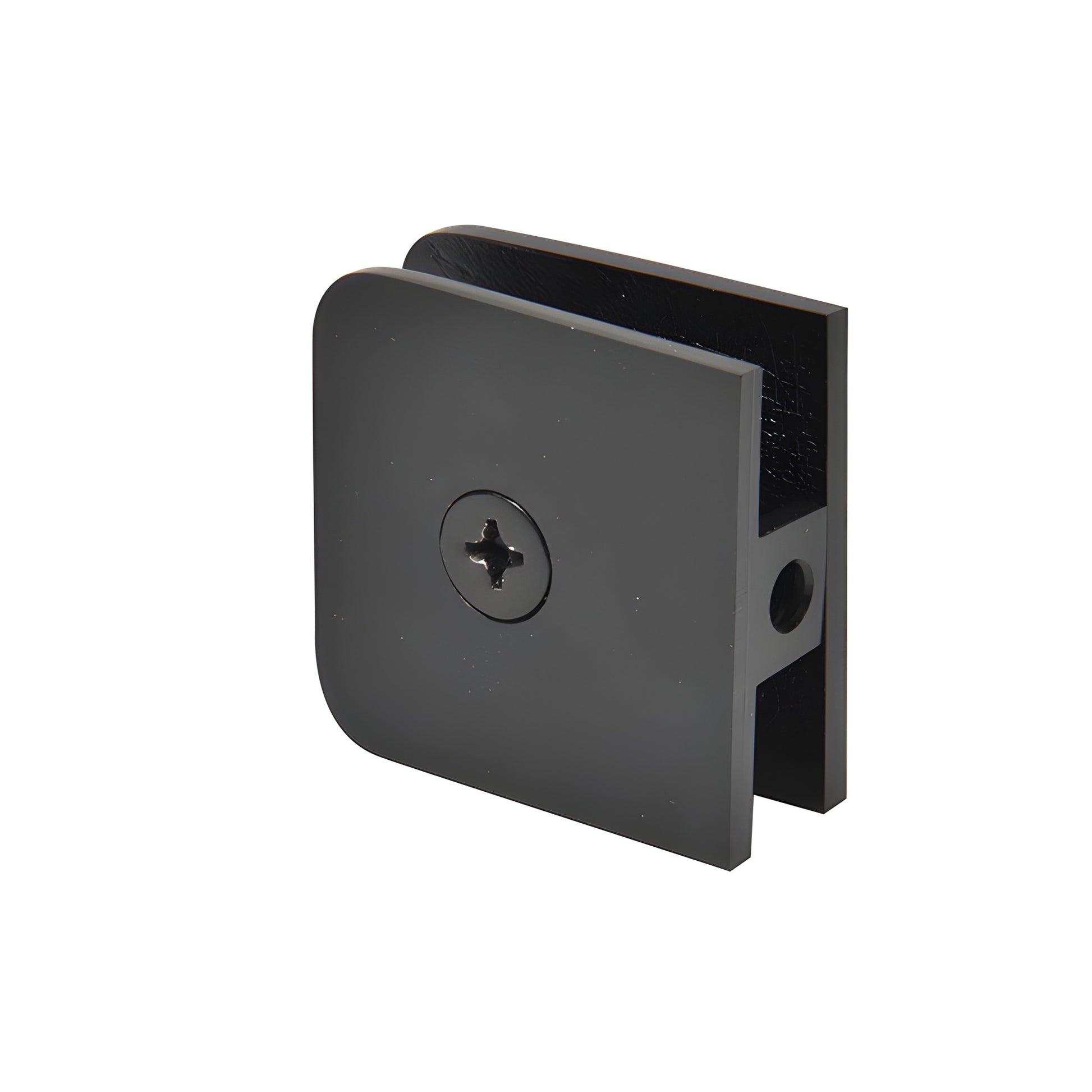

CRL Oil Rubbed Bronze Fixed Glass Panel U-Clamp for Shower Doors

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Used to secure fixed panels of glass for frameless shower enclosures
• Solid brass construction for durability and corrosion resistance
• Provides a cleaner "all-glass" look compared to traditional U-channel
• Glass fabrication required to accommodate clamps
• Use monolithic tempered glass

CRL Standard Fixed Panel U-Clamps (SKU: UC770RB) mount directly to wall, ceiling or floor to secure vertical fixed glass panels in frameless shower doors and fixed panel installations. Clearance between the glass and wall is 5/32" to 3/16" (4 to 5 mm); clear silicone can be applied to seal the gap for a clean, water-resistant finish.

Our solid brass Traditional Glass Clamps are a contemporary alternative to U-channel, helping maintain an unobstructed frameless appearance for shower enclosures. Each clamp is machined from solid brass and offered in finishes that match our Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included; extra clear gaskets (Cat. No. UCG77) are available separately.

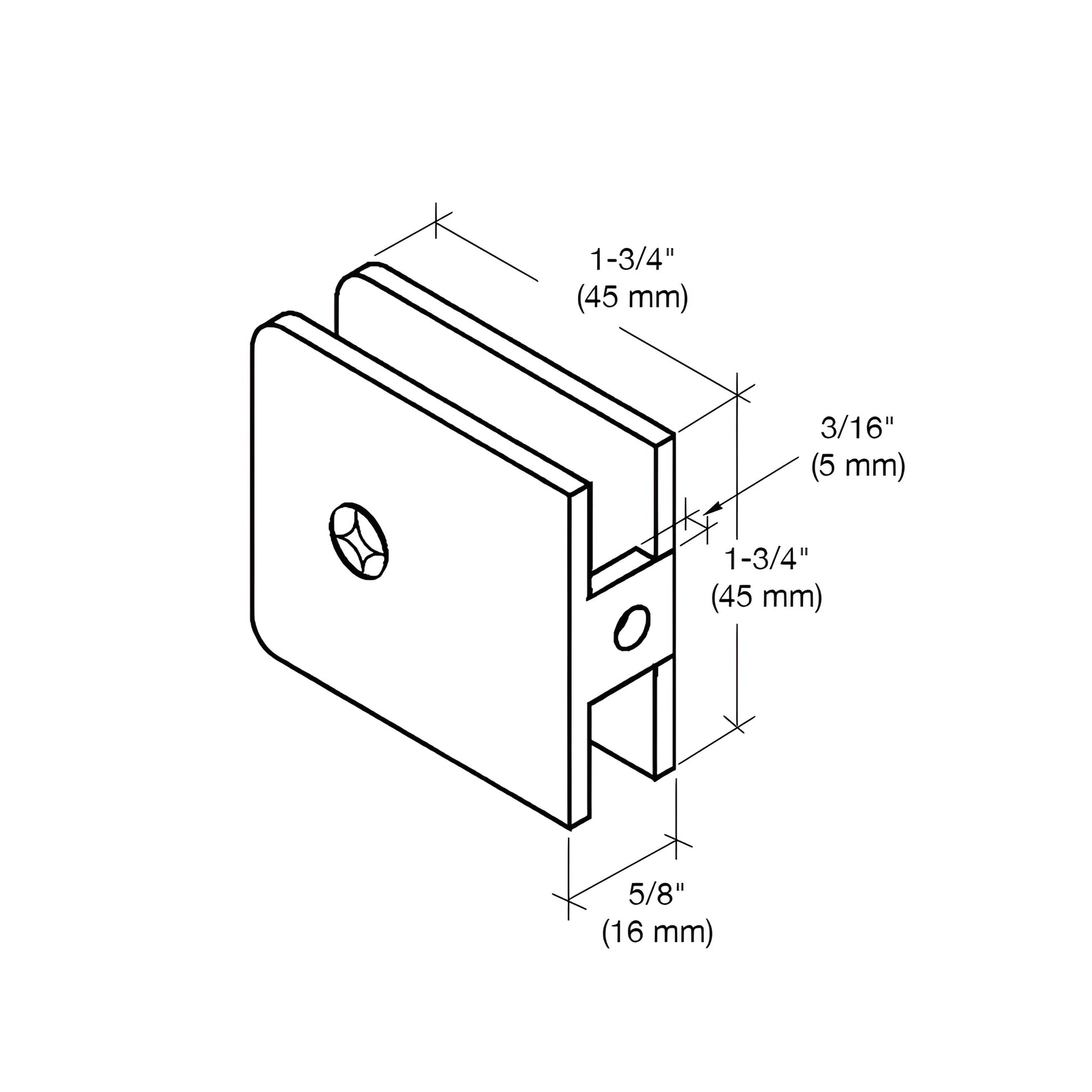

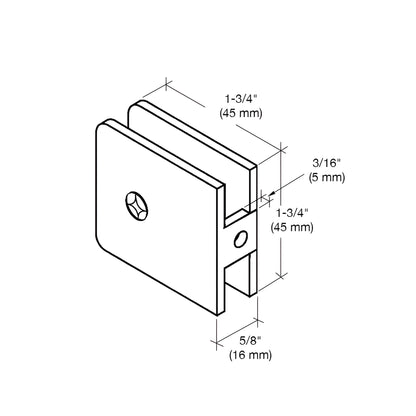

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screws (for wall clamps) and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.

Order UC770RB solid brass glass clamps for a sleek frameless shower finish—shop now.
