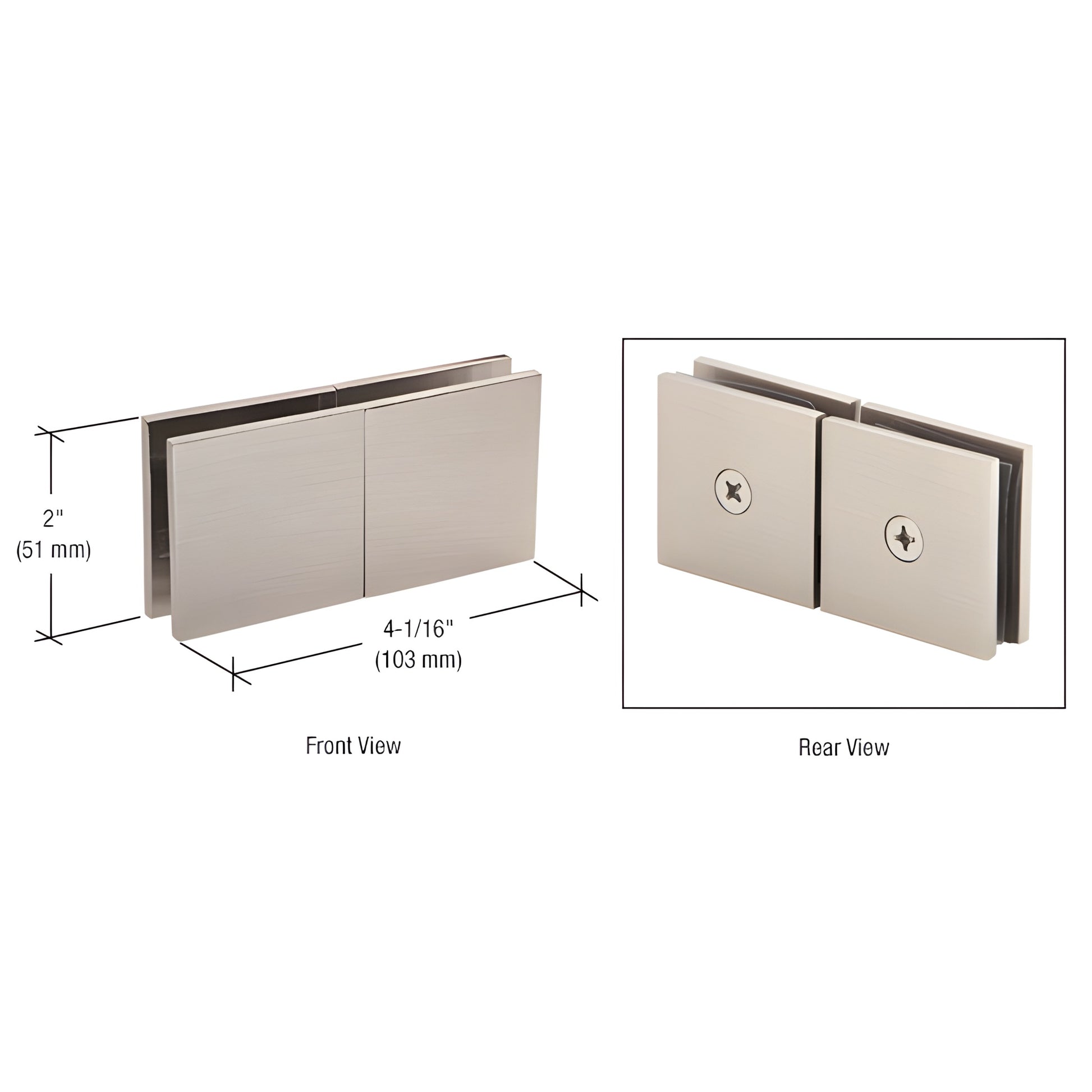

CRL Brushed Nickel 180° Square Movable Glass-to-Glass Transom Clamp

• For 3/8" to 1/2" (10 to 12 mm) thick tempered glass
• Glass transom swivels to allow release of steam
• Wall mount and 180° glass-to-glass models available
• Solid brass construction for corrosion resistance and durability
• Use with monolithic tempered glass

CRL Square 180 Degree Glass-to-Glass Movable Transom Clamps provide smooth rotation of a movable transom off an inline fixed glass panel. To ensure balanced movement, center the clamp on the transom. Maximum movable transom size is 16" x 30" (406 x 762 mm). Ideal for frameless shower doors and glass partition installations requiring a 180-degree movable transom clamp.

SKU: SGC188BN

NOTE: Replacement parts — 90295A120 (nylon washer), 211039 (10-32 x 3/4" flat head Phillips screw), 193004 (10-32 nylon lock nut).

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Order the SGC188BN solid brass 180-degree glass-to-glass transom clamp for reliable, steam-release swivel action on 3/8"–1/2" tempered glass. Add to cart or contact us for technical assistance.
