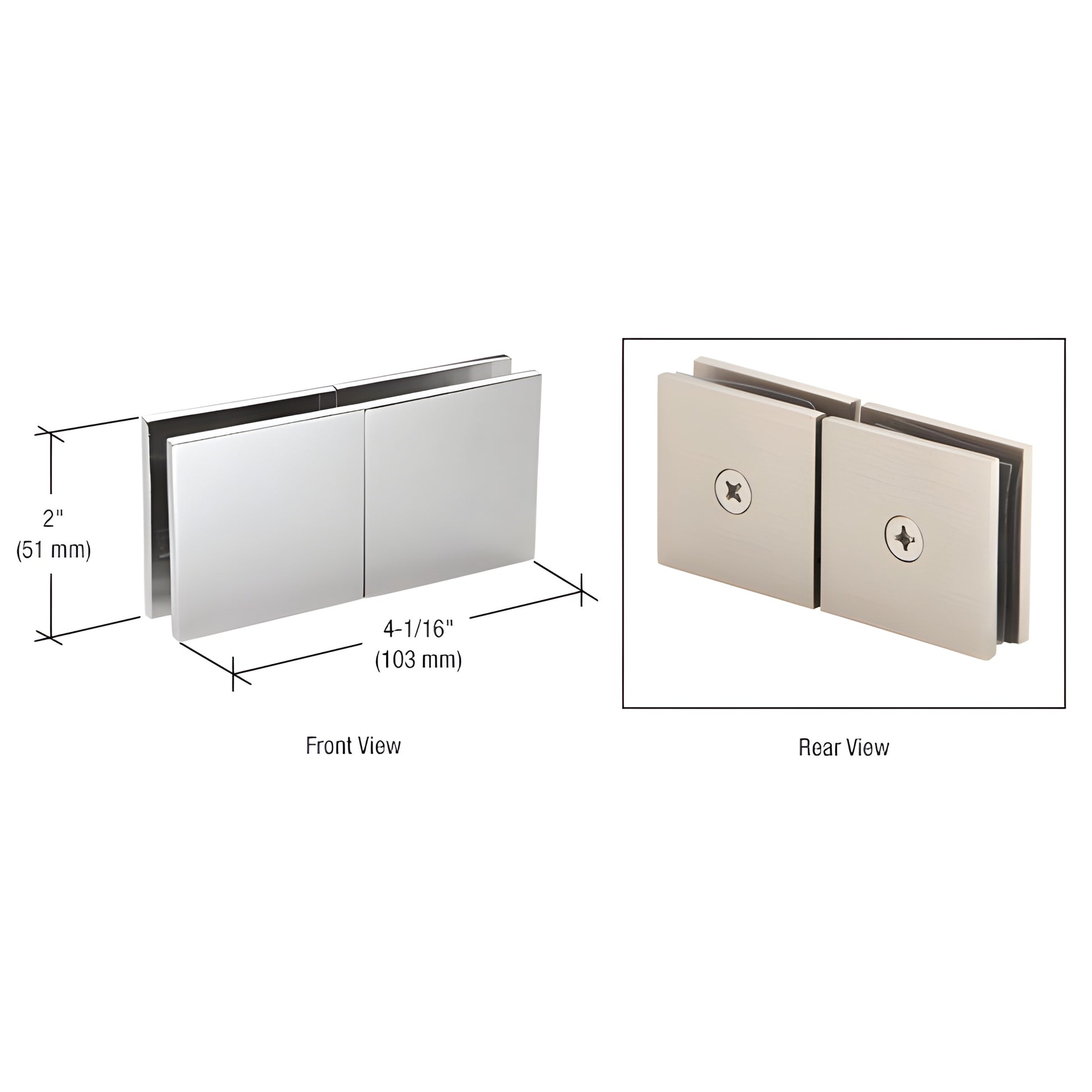

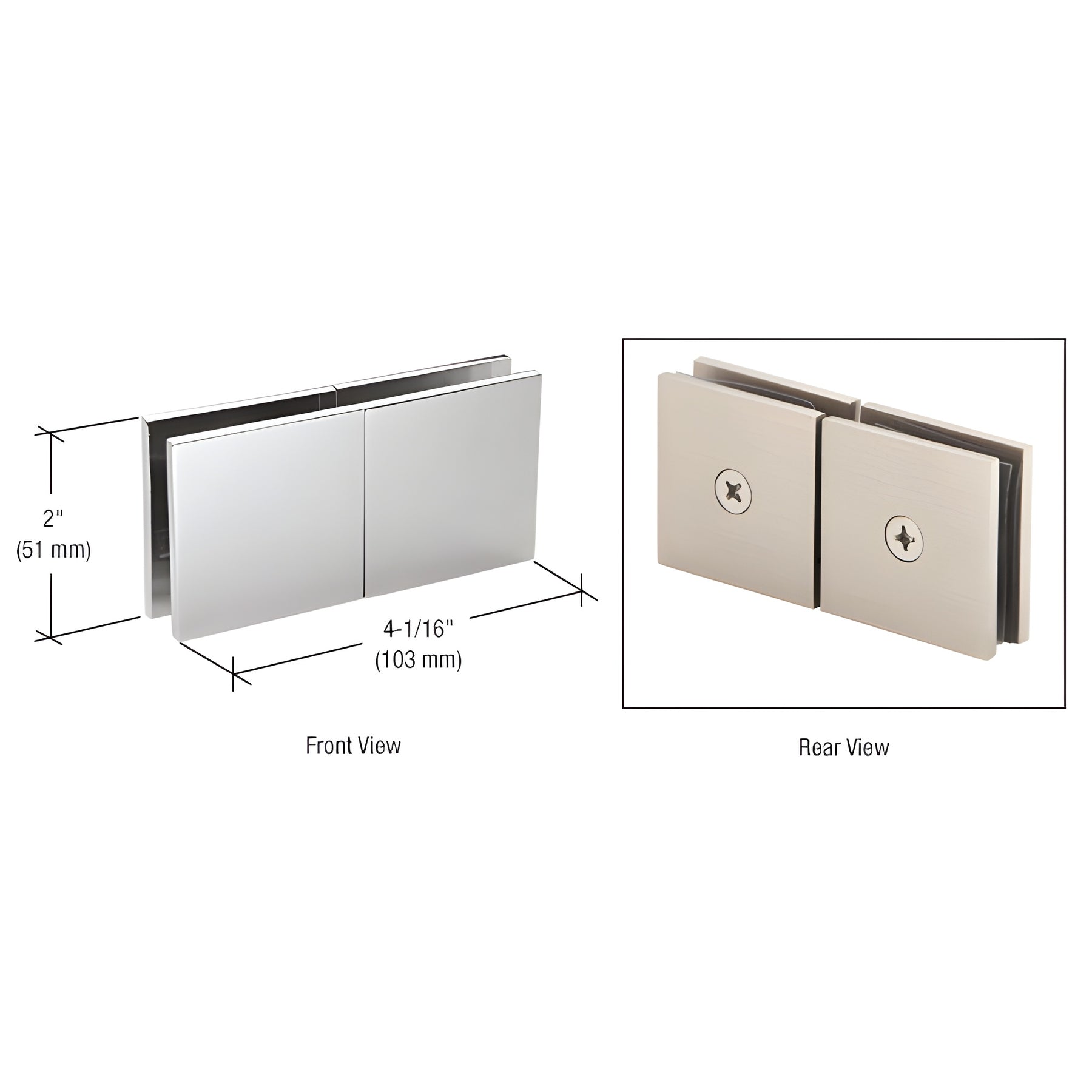

CRL Polished Chrome 180° Square Movable Glass-to-Glass Transom Clamp
CRL Polished Chrome 180° Square Movable Glass-to-Glass Transom Clamp
Regular price
$34.66 CAD
Regular price
Sale price
$34.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC188CH
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Polished Chrome
Glass To Glass Angle
180
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Pivoting Glass To Glass
Width
4-1/16 in. (103 mm)
Overview
- For 3/8" to 1/2" (10 to 12 mm) thick glass
- Glass transom swivels to allow release of steam for shower enclosures
- Wall mount and 180° glass-to-glass models available
- Solid brass construction for corrosion resistance
- Use with monolithic tempered glass
CRL Square 180 Degree Glass-to-Glass Movable Transom Clamps (SKU: SGC188CH) allow rotation of a movable transom off an inline fixed glass panel—ideal for shower door transom applications and steam-release solutions. For balanced movement, clamp must be centered on the transom. Maximum movable transom size: 16" x 30" (406 x 762 mm).
NOTE: Replacement parts: 90295A120 (nylon washer), 211039 (10-32 x 3/4" flat head Phillips screw), 193004 (10-32 nylon lock nut).
SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets
Buy the SGC188CH solid brass glass-to-glass transom clamp for reliable shower door movement and steam-release functionality—order now or contact us for technical assistance.
