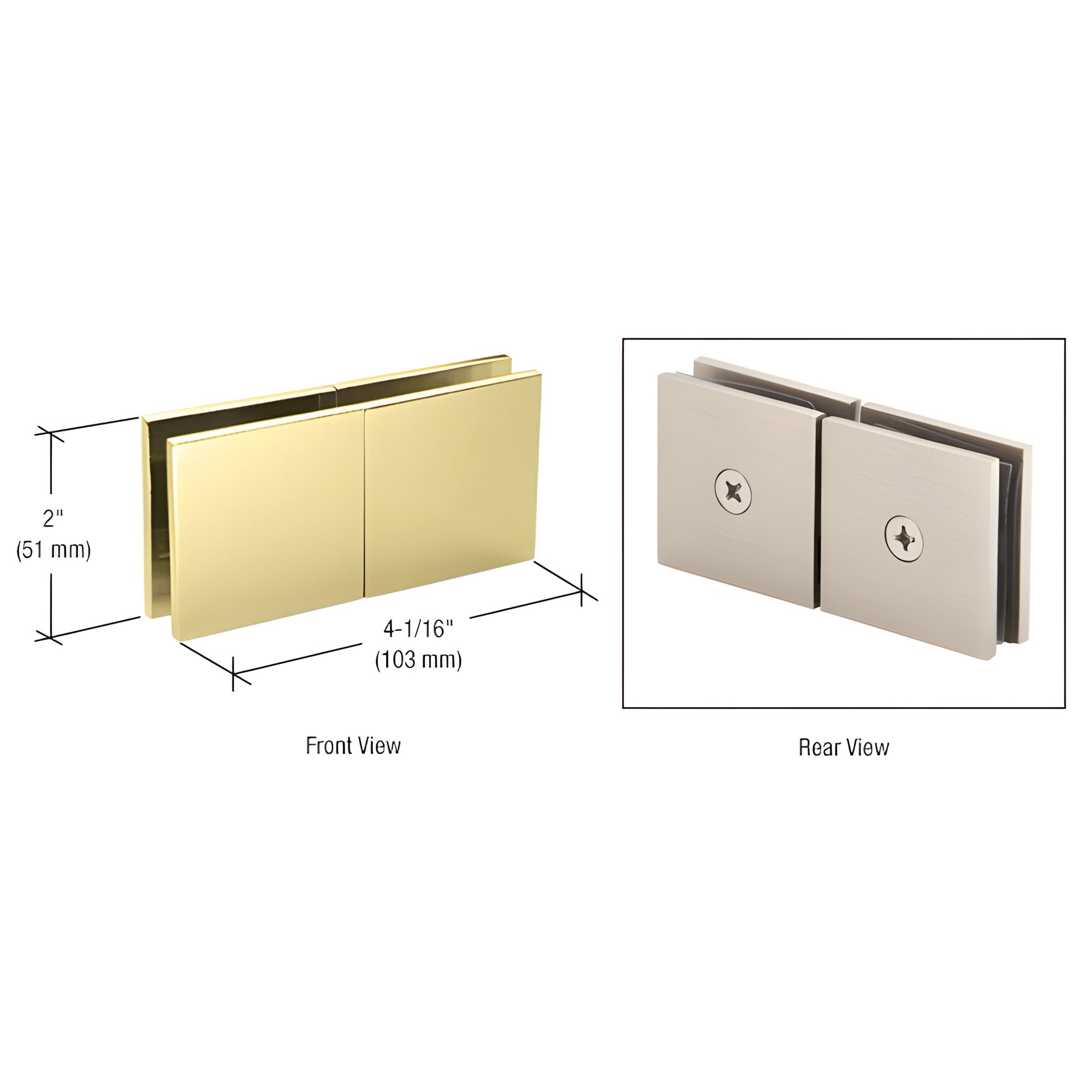

CRL Polished Brass 180° Square Glass-to-Glass Movable Transom Clamp
CRL Polished Brass 180° Square Glass-to-Glass Movable Transom Clamp
Regular price
$40.08 CAD
Regular price
Sale price
$40.08 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC188BR
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Polished Brass
Glass To Glass Angle
180
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Pivoting Glass To Glass
Width
4-1/16 in. (103 mm)
Overview
- For 3/8" to 1/2" (10 to 12 mm) thick glass
- Glass transom swivels to allow release of steam
- Wall-mount and 180° models available
- Solid brass construction for durability
- Designed for monolithic tempered glass applications
CRL Square 180 Degree Glass-to-Glass Movable Transom Clamps (SKU: SGC188BR) allow rotation of a movable transom away from an inline fixed glass panel. To ensure balanced movement, the clamp must be centered on the transom. Maximum movable transom size: 16" x 30" (406 x 762 mm). These solid brass glass transom clamps are ideal for tempered glass installations that require a steam-release swivel and robust, corrosion-resistant hardware.
NOTE: Replacement parts: 90295A120 (nylon washer), 211039 (10-32 x 3/4" flat head Phillips screw), 193004 (10-32 nylon lock nut).
SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets
Brass Finish Advisory:
Although durable, brass can oxidize over time and may develop a tarnished look depending on storage or exposure. For care and finish information, see the Brass Finish Disclaimer in the Technical References section.
Order the SGC188BR solid brass glass-to-glass movable transom clamp for reliable swivel action and long-lasting tempered glass hardware—contact us or add to cart to purchase.
