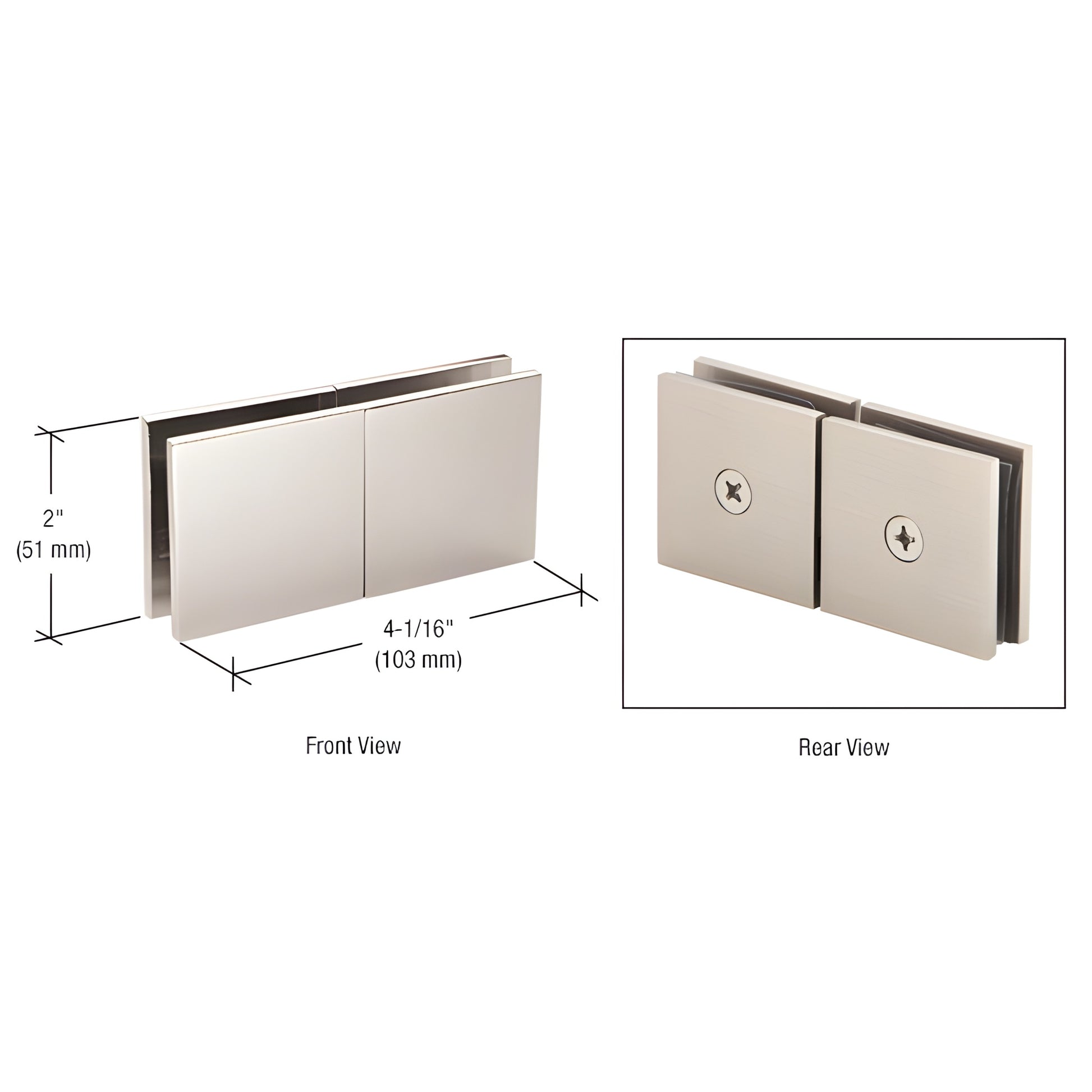

CRL Polished Nickel 180 Degree Square Glass-to-Glass Transom Clamp

• For 3/8" to 1/2" (10 to 12 mm) thick tempered glass
• Glass transom swivels to allow release of steam — ideal for shower and enclosure ventilation
• Wall mount and 180° glass-to-glass models available
• Solid brass construction for corrosion resistance and long life
• Use with monolithic tempered glass

CRL Square 180 Degree Glass-to-Glass Movable Transom Clamps (SKU: SGC188PN) provide a durable, low-profile solution for rotating a movable transom off an inline fixed glass panel. To ensure balanced movement, the clamp must be centered on the transom. Maximum movable transom size: 16" x 30" (406 x 762 mm). These clamps are optimized for shower and glass partition applications where steam release and reliable brass hardware are required.

NOTE: Replacement parts — 90295A120 (nylon washer), 211039 (10-32 x 3/4" flat head Phillips screw), and 193004 (10-32 nylon lock nut).

SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Ready to upgrade your shower or glass partition hardware? Order SGC188PN or contact CRL Customer Service for assistance.
