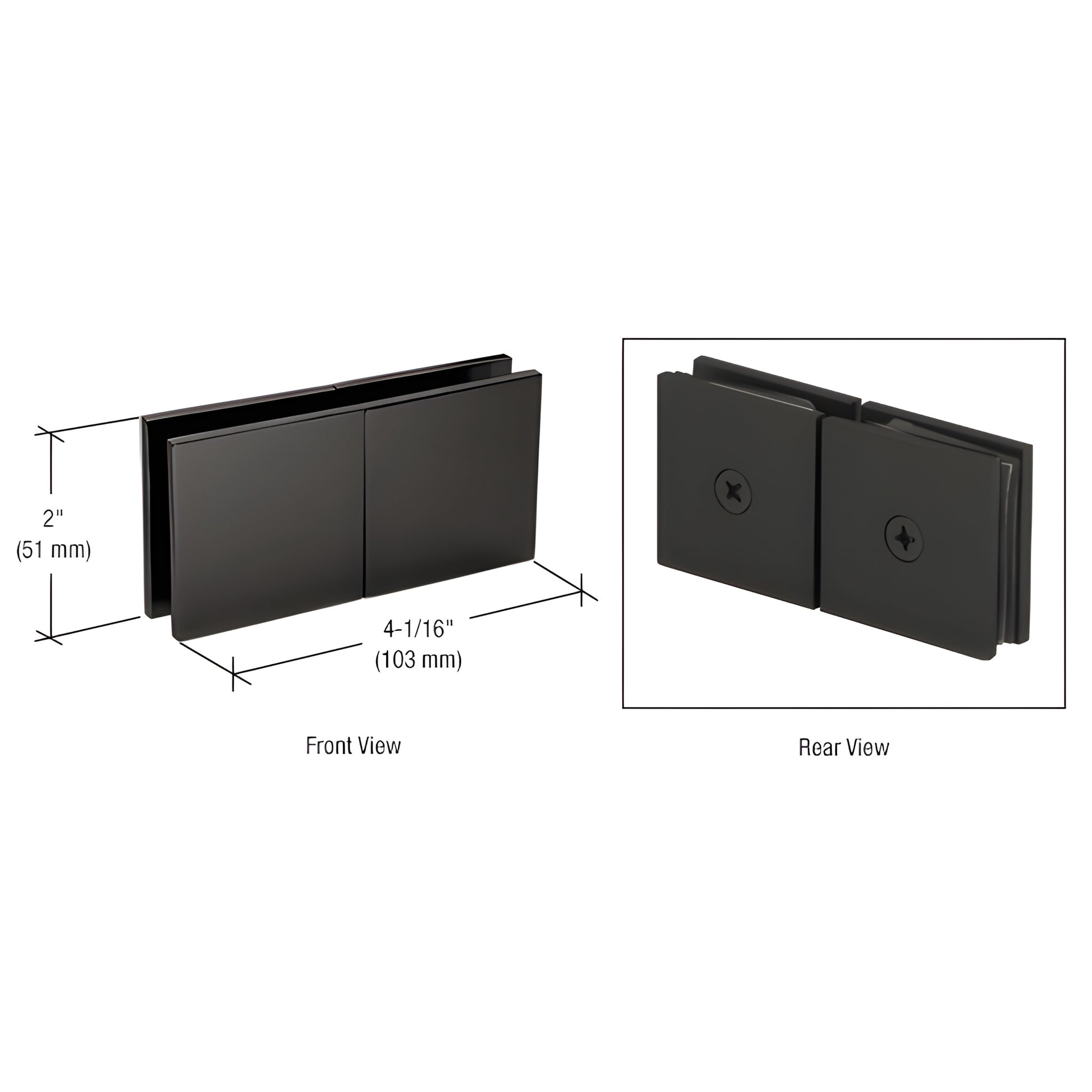

CRL Matte Black Square 180° Adjustable Glass-to-Glass Transom Clamp
CRL Matte Black Square 180° Adjustable Glass-to-Glass Transom Clamp
Regular price
$42.24 CAD
Regular price
Sale price
$42.24 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC188MBL
Shipping Weight: 14.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Matte Black
Glass To Glass Angle
180
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Pivoting Glass To Glass
Width
4-1/16 in. (103 mm)
Overview
- For 3/8" to 1/2" (10 to 12 mm) thick glass
- Glass transom swivels to allow release of steam
- Wall mount and 180° models available
- Solid brass construction for durability and corrosion resistance
- Designed for monolithic tempered glass
CRL Square 180 Degree Glass-to-Glass Movable Transom Clamp (SKU: SGC188MBL) allows rotation of a movable transom off an inline fixed glass panel. For balanced movement, mount the clamp centered on the transom. Maximum movable transom size: 16" x 30" (406 x 762 mm). Ideal for shower doors and commercial glass partitions that require a durable, solid-brass glass-to-glass swivel clamp for 3/8"–1/2" tempered glass.
NOTE: Replacement parts: 90295A120 (Nylon Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), 193004 (10-32 Nylon Lock Nut).
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets
Order the SGC188MBL solid brass glass-to-glass movable transom clamp for reliable swivel action and corrosion-resistant performance — add to cart or contact CRL for technical support.
