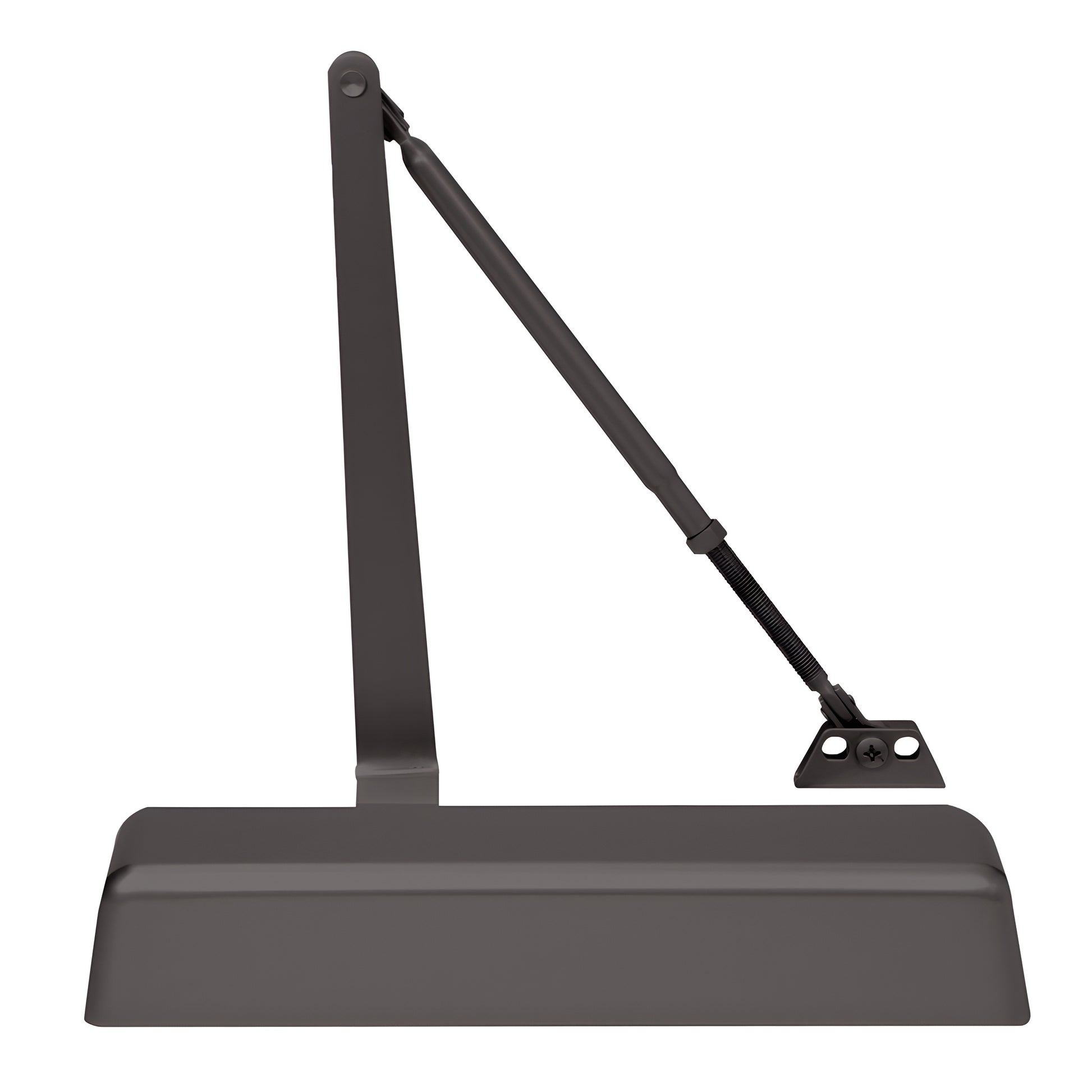

CRL Dark Bronze Adjustable Surface-Mount Door Closer Size 1-4

• ANSI A156.4 - Grade 1 surface mounted door closer
• Adjustable spring power, multi-size range: Size 1 to 5
• Larger footprint matches or covers existing hole patterns
• UL Listed

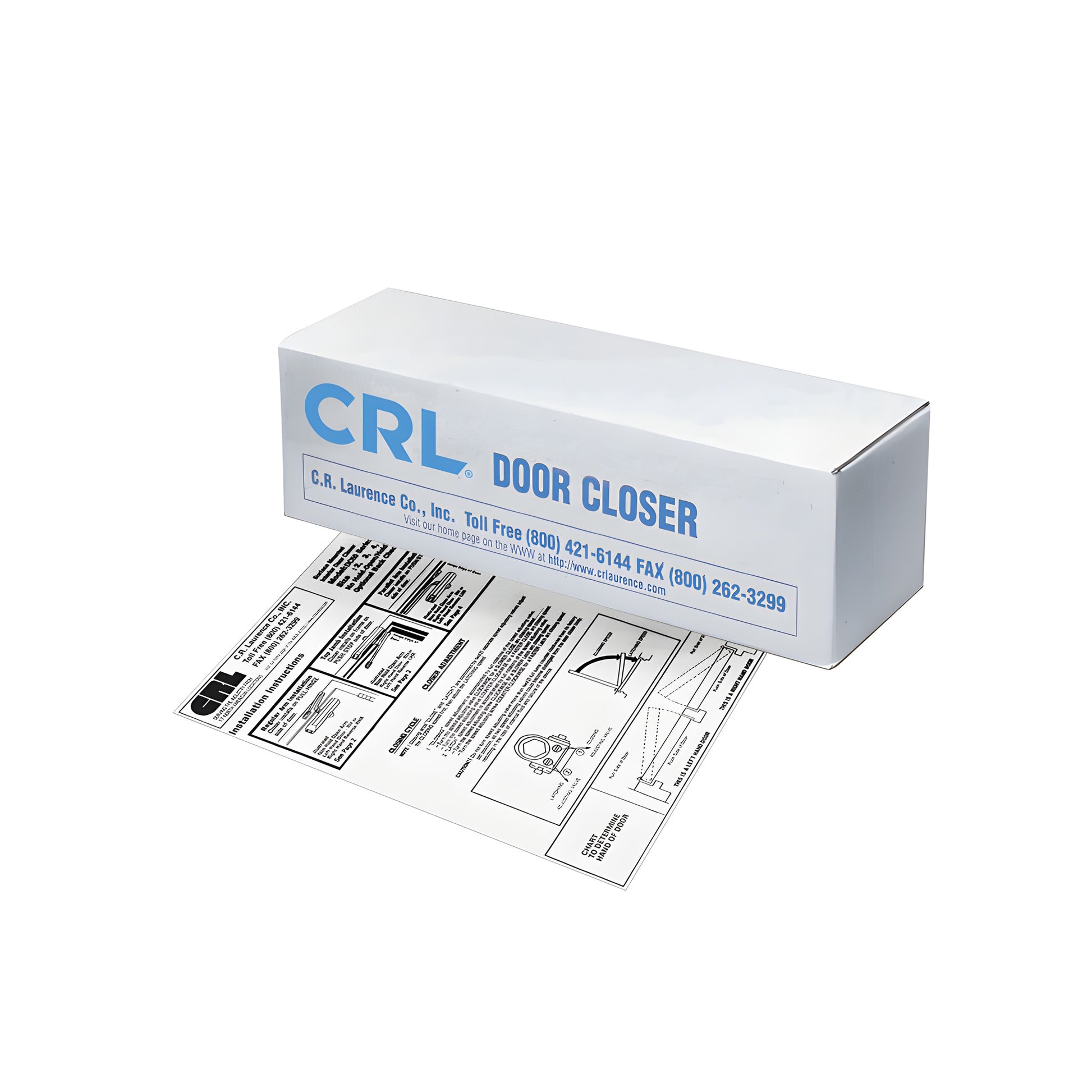

• Each PR50 Series closer ships with installation instructions and mounting hardware

For demanding commercial applications, choose the CRL PR50 Series Surface Mounted Door Closer. The PR50 Series is an ANSI Grade 1, multi-size adjustable spring power closer designed for doors 24" to 54" (0.61 to 1.37 m) and weighing 33 to 264 lbs. (15 to 120 kg). Its larger footprint helps match or cover existing hole patterns for easier retrofit installations.

Model highlights:

• PR50: Barrier-free, low opening resistance—adjustable Size 1 through 4 for ADA opening force compliance in public buildings, airports, and shopping centers.
• PR52: Higher power—adjustable Size 2 through 5 for heavier doors and high-traffic areas.
• PR54DA: Adjustable delayed action to hold the door open temporarily—useful in healthcare and public facilities requiring momentary open time for accessibility.

Independent closing and latching speed controls plus an adjustable backcheck protect the closer, door, and adjacent surfaces from wind or violent opening. Parallel arm brackets and universal mounting hardware are included for regular, top jamb, or parallel arm installations. Optional accessories—such as drop plates and hold-open arms—are available for special installations.

Warranty: PR50 Series closers are UL Listed and come with a ten-year warranty.

Product Warning:
Closers set to meet ADA-specified opening forces may not provide sufficient spring power to control and close the door under all site conditions or with larger doors. Verify application requirements before finalizing settings.

Ready to upgrade your door hardware? Order the PR50 Series Surface Mounted Door Closer (SKU PR50DU) or contact CRL Customer Service for assistance.
