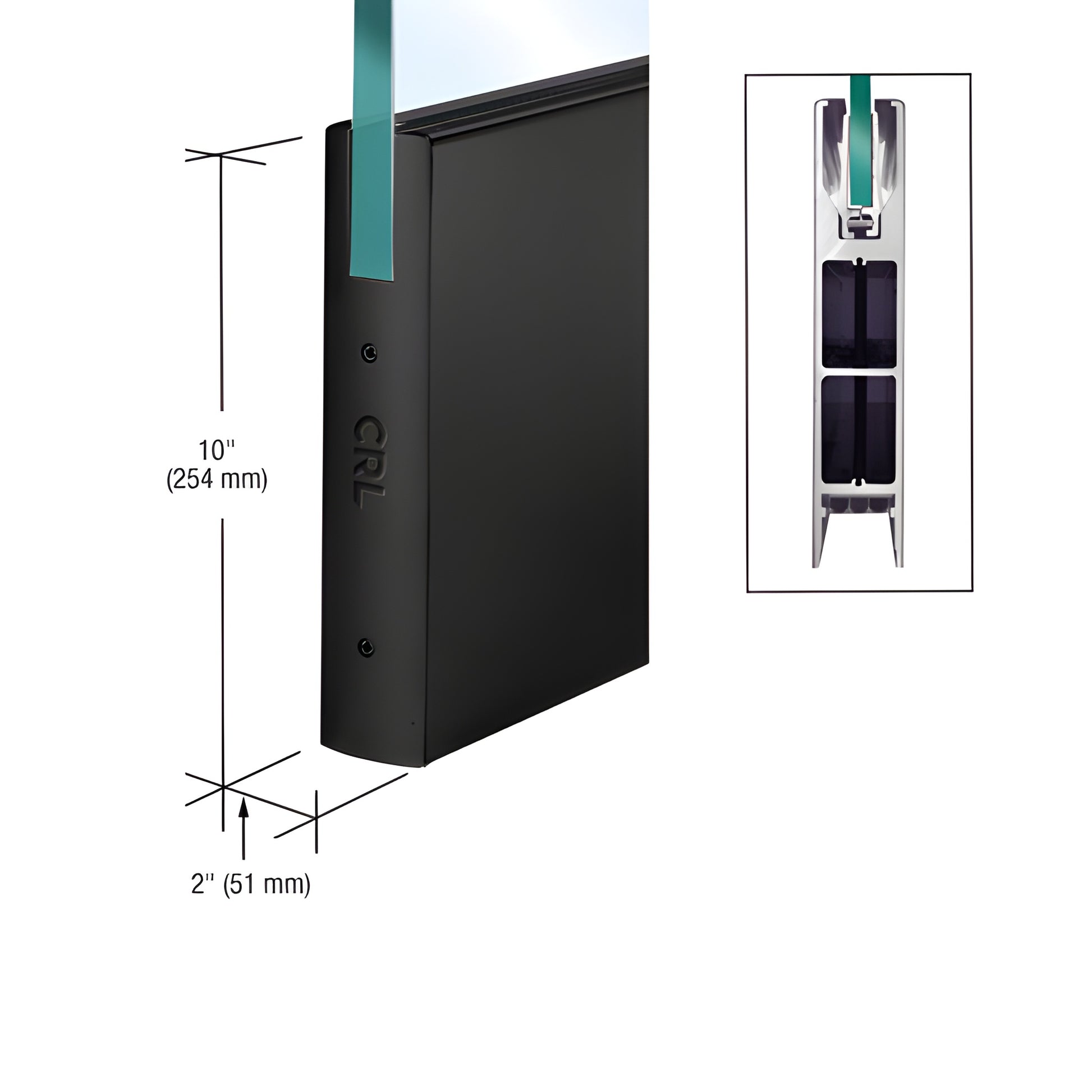

CRL Matte Black 1/2" Glass Door Rail, 35-3/4", 10" Square (No Lock)

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit 1/2" to 3/4" (12 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

SKU: DR10SMBL12S

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). This door rail for tempered glass doors secures glass by applying downward pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions engage an angled groove in the rail, creating high retention force in the corner and full-length rails—delivering a secure, durable glass-to-rail connection for commercial glass doors.

The Wedge-Lock® system offers faster installation than typical door rails. Experienced installers can prepare a door for installation in under ten minutes. CRL Wedge-Lock® Door Rails ship completely fabricated with end caps installed and include an adjustable door alignment slide, allowing 1/8" (3.2 mm) in/out adjustment without removing the door—standard on both top and bottom rails.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the adjustable slide; the two outer bolts provide the 1/8" (3.2 mm) adjustment. The low-profile slide accommodates pivots with slotted grooves and can be used in vertically out-of-square openings.

Key product differentiators:

• Fast, tool-accessible installation for commercial glass doors
• Rigid single-component housing that resists shifting and maintains alignment
• Internal components remain assembled for quicker installs
• Durable glass-securing pads engineered for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms and pivots must be ordered separately to meet specific job requirements. Models with locks are supplied with the lock mechanism installed; keyed cylinders or thumbturns are ordered separately. End caps are included in stock rail lengths; specify door rail length (including end caps) for custom-length orders.

CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates and hardware packages are
