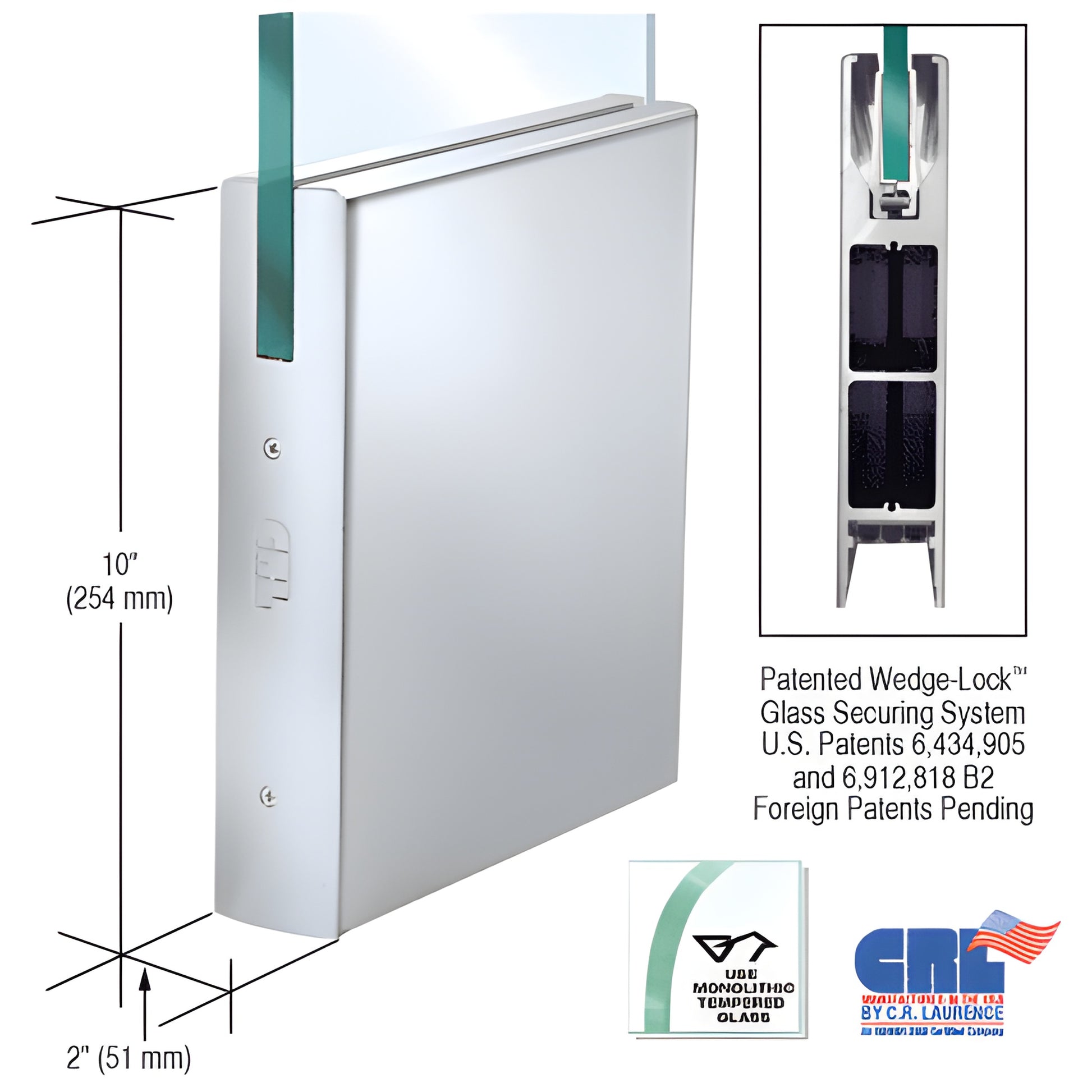

CRL Polished Stainless Steel 10in Sq Glass Door Rail 35-3/4in No Lock

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use with monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Models to fit from 1/2" to 3/4" (12 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks; matching sidelite rails available

Our CRL Wedge-Lock® Door Rail System (SKU: DR10SPS12S) secures glass from the bottom using two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tensioned with socket head cap bolts, angled extrusions wedge together in the door rail groove to clamp the glass—producing exceptionally high retention force (over 900 lbs. in the 9" corner rail). This engineered design delivers reliable glass retention for storefronts, commercial glass entrances, and frameless glass doors while enabling faster installations and long-term stability.

NOTE: Actual product height: 10" (254 mm)

Key benefits and long-tail features:

• Fast installation: experienced installers can prepare a door in under ten minutes
• Completely fabricated and ready-to-install with end caps installed
• Adjustable Door Alignment System: +/- 1/8" (3 mm) adjustment toward/away from jamb on both top and bottom rails without removing the door
• Adjustments accessed by removing end cap to reveal three socket head cap bolts (center secures slide; outer bolts adjust slide)
• Low-profile adjustable slide allows pivot placement other than the American Standard setback for out-of-square openings
• Rigid single-component housing resists shift and loss of adjustment over time
• Internal components do not require removal prior to installation; durable glass-securing pads for extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• All door rails are supplied with the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
• Models with locks are supplied with the lock mechanism installed; matching finish keyed cylinders or thumbturns must be ordered separately.
• End caps are included in
