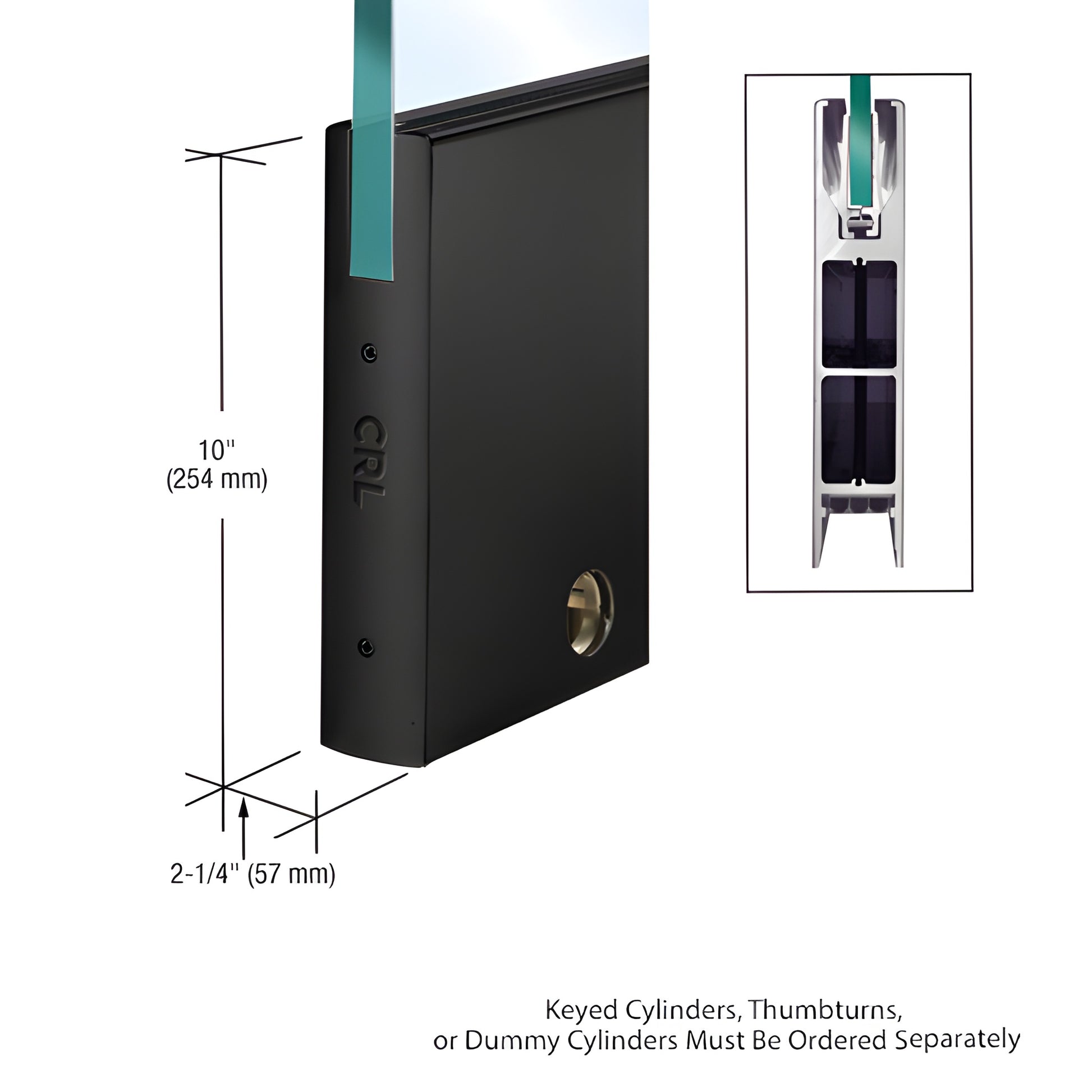

CRL Matte Black 10" Square Sliding Door Rail w/ Lock for 1/2" Glass

• 35-3/4" (908 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR10SMBL12SL), is a high-performance glass door rail system designed for commercial and architectural applications. The exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) secures monolithic tempered glass using two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is drawn down with socket head cap bolts, angled extrusions are pulled together in an angled rail groove to clamp the glass—creating tremendous holding force (more than 900 lbs. in our 9" corner rail). This robust design scales across the full-length 35-3/4" (908 mm) door rail.

The Wedge-Lock® Glass Securing System delivers fast installations and reliable, long-term performance. Experienced installers can prepare a door for installation in under ten minutes. Rails ship fully fabricated and ready-to-install with End Caps installed. After rail mounting, attach the door arm or pivot (not included) to the pre-assembled adjustable door alignment slide.

Features that set this tempered glass door rail system apart:

• Adjustable Door Alignment System—standard on top and bottom rails; ±1/8" (3.2 mm) adjustment without removing the door
• Low-profile adjustable slide accepts pivots with slotted grooves and can be positioned for out-of-square openings
• Rigid single-component housing that resists shift and stays in adjustment over time
• Internal components remain in place—no removal required before installation
• Durable glass securing pads engineered for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block. Arms, pivots, closer arms and floor or overhead pivots must be ordered separately to match job requirements.

Available in several standard architectural finishes with custom finishes and widths quoted on request. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:

• All Door Rails supplied with standard Kwik-Adjust™ Pivot Alignment System. Closer
