CRL Satin Anodized Sliding Door Rail 35-3/4" w/ Lock for 1/2" Glass

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit 1/2" to 3/4" (12 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR10SSA12SL) features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for fast installation and long-term performance, the system secures glass by applying downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled wedges in the rail pull the extrusions together, compressing the door retaining gasket to generate substantial holding force (over 900 lbs. in the 9" / 228.6 mm corner rail).

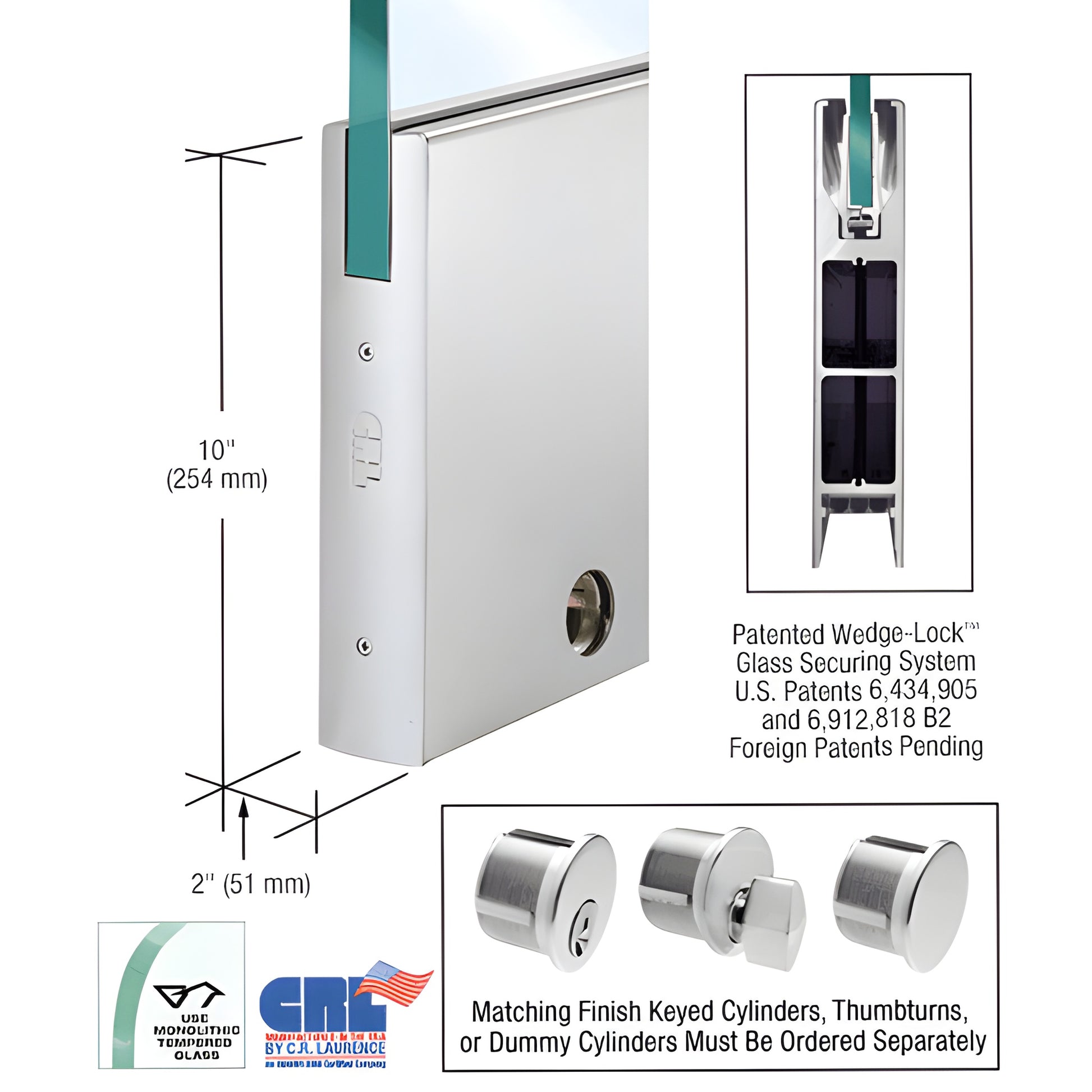

NOTE: Actual product height: 10" (254 mm)

The Wedge-Lock® Glass Securing System delivers a secure attachment plus the fastest installation time among door rail systems—experienced installers can prepare a door for installation in under ten minutes. Rails come completely fabricated and ready-to-install with end caps installed. After rail installation, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The Adjustable Door Alignment System allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door; this adjustment is standard on both top and bottom rails. To access adjustments after installation, remove the end cap to reveal three socket head cap bolts: the center bolt secures the slide, and the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide accommodates pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Other advantages: available models accept 3/8" to 3/4" (10 to 19 mm) glass; a rigid single-component housing that resists shifting; internal components do not require removal before installation; and durable glass securing pads designed for longevity in extreme environments. All Wedge-Lock® Door Rails feature a built-in jamb alignment block (arms and pivots must be ordered separately).

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available
