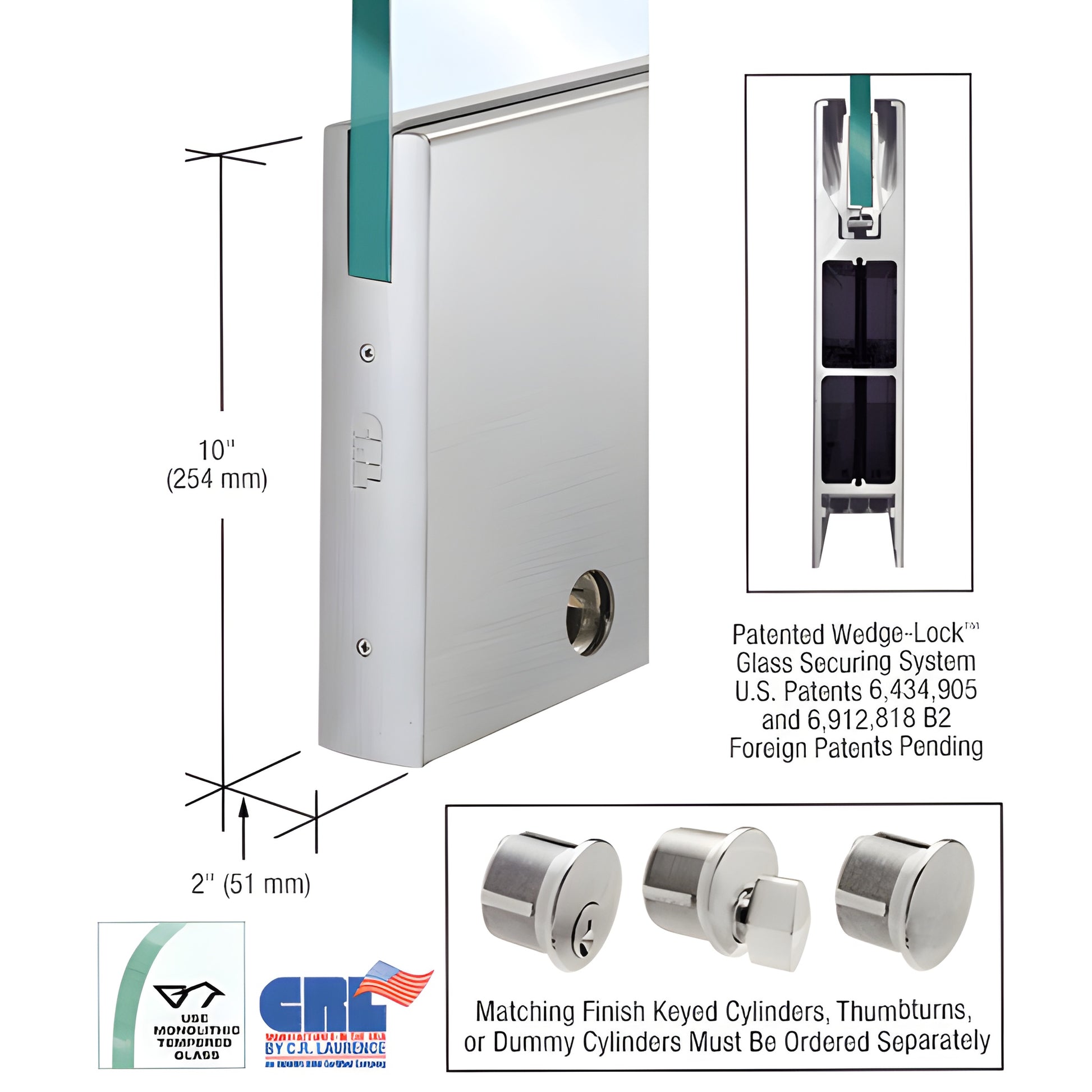

CRL Brushed Stainless Glass Door Rail 1/2 in, 10 in Square w/ Lock 35-3/4 in

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Models to fit 1/2" to 3/4" (12 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

SKU: DR10SBS12SL

Our CRL Wedge-Lock® Door Rail System features the exclusive Wedge-Lock® Securing System that secures monolithic tempered glass by applying downward pressure with two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions engage an angled groove in the rail, producing very high retention force (over 900 lbs. in the 9" corner rail) and dependable, long-lasting glass holding strength across the full 35-3/4" (908 mm) rail.

Actual product height: 10" (254 mm)

Key differentiators & long-tail keywords:

• Fastest-installing Wedge-Lock door rail system — experienced installers can prepare a door in under ten minutes
• Completely fabricated and ready-to-install with end caps installed out of the carton
• Adjustable door alignment slide (standard top and bottom) allows 1/8" (3 mm) adjustment toward or away from the jamb without removing the door
• Rigid single-component housing — resists shifting and keeps long-term adjustment stability
• Internal components remain installed during shipping and fitting; glass securing pads designed for longevity in extreme environments
• Models accept 3/8" to 3/4" (10 to 19 mm) glass where applicable
• Built-in jamb alignment block (arms and pivots ordered separately to meet job requirements)

Installation notes: rails include the Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots are not included and must be ordered separately. Models with locks ship with the lock mechanism installed; keyed cylinders or thumbturns must be ordered separately. For custom lengths, specify the door rail length including end caps at time of order.

Ordering & technical support: Rail specifications, templates, and hardware packages are available from CRL Technical Sales — contact via e-mail.
