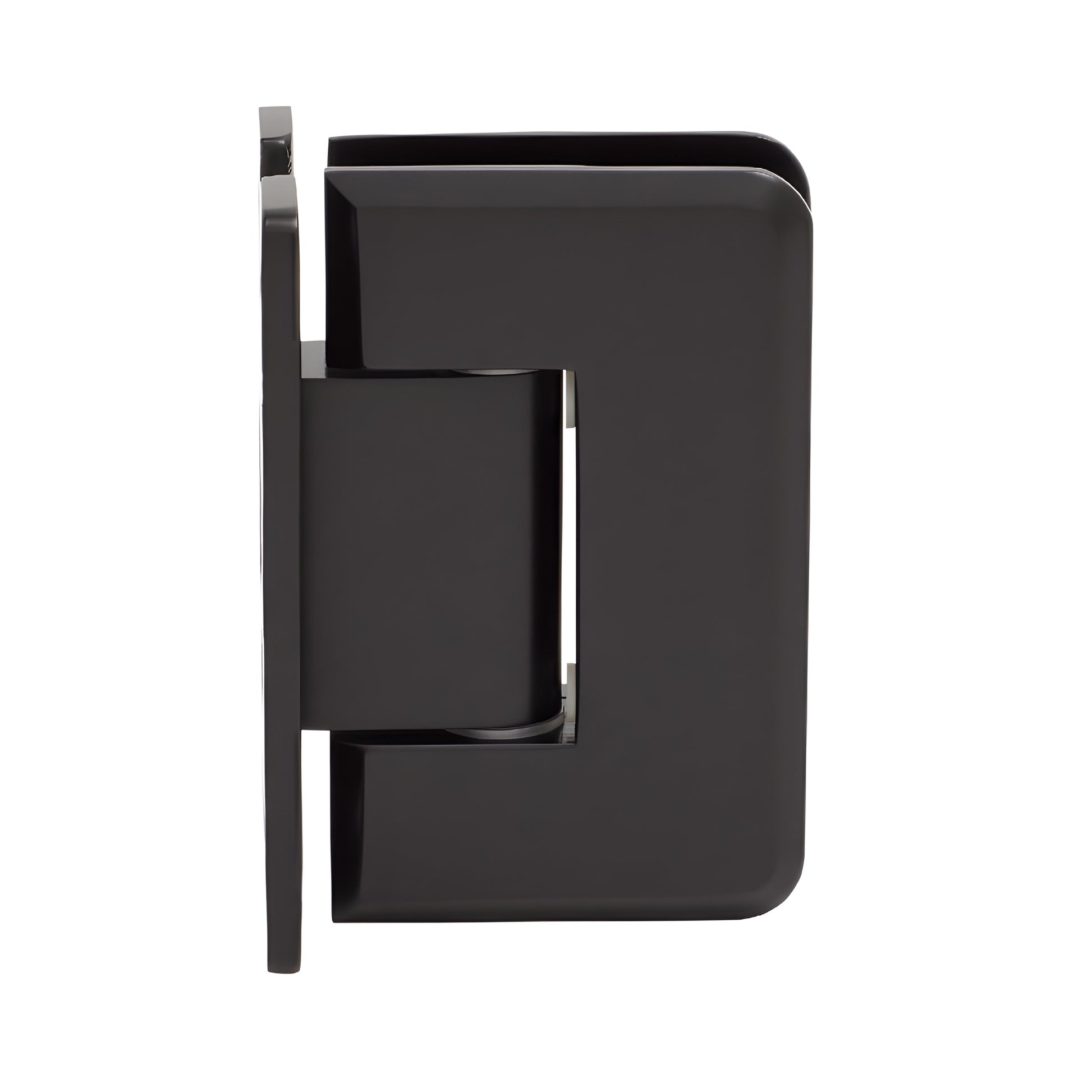

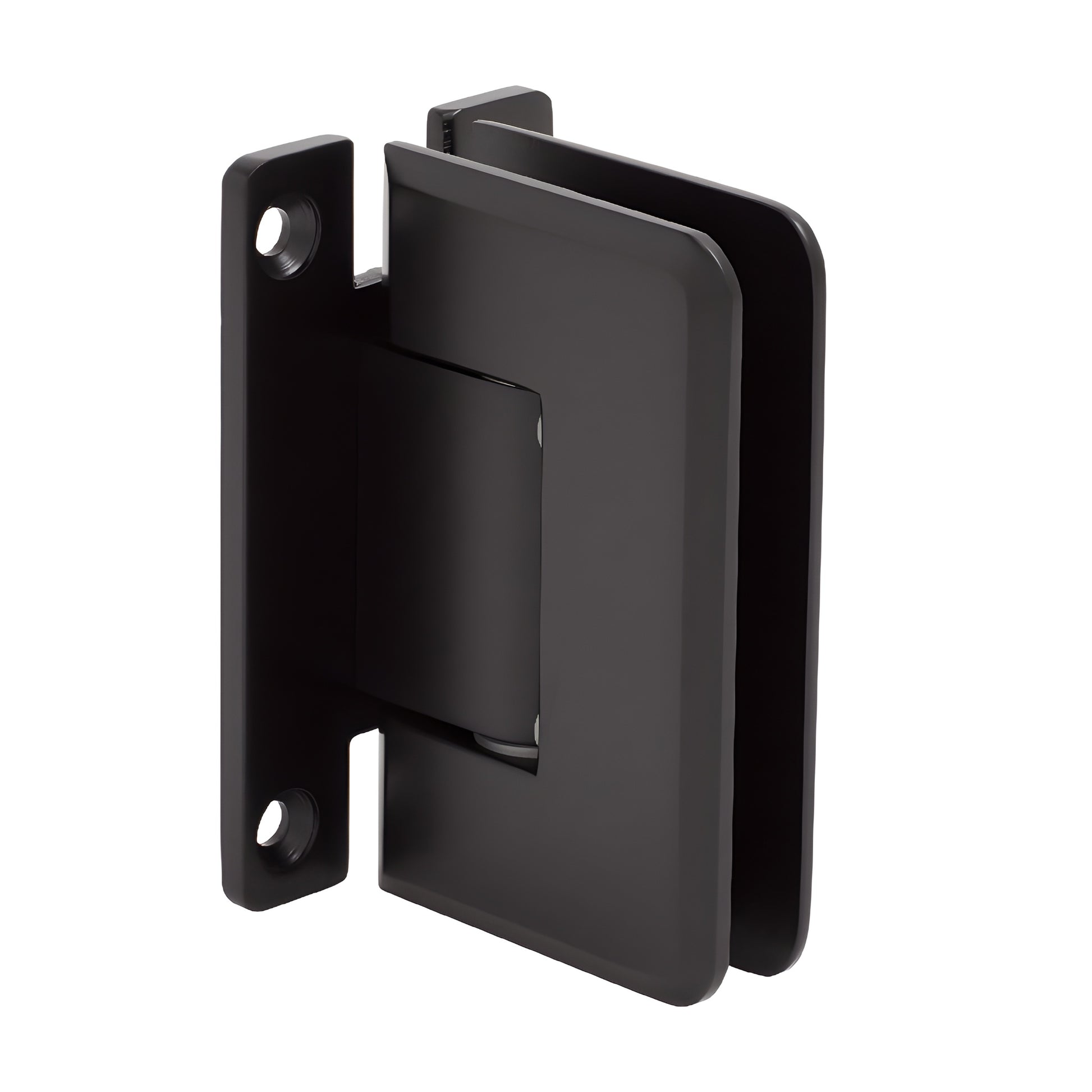

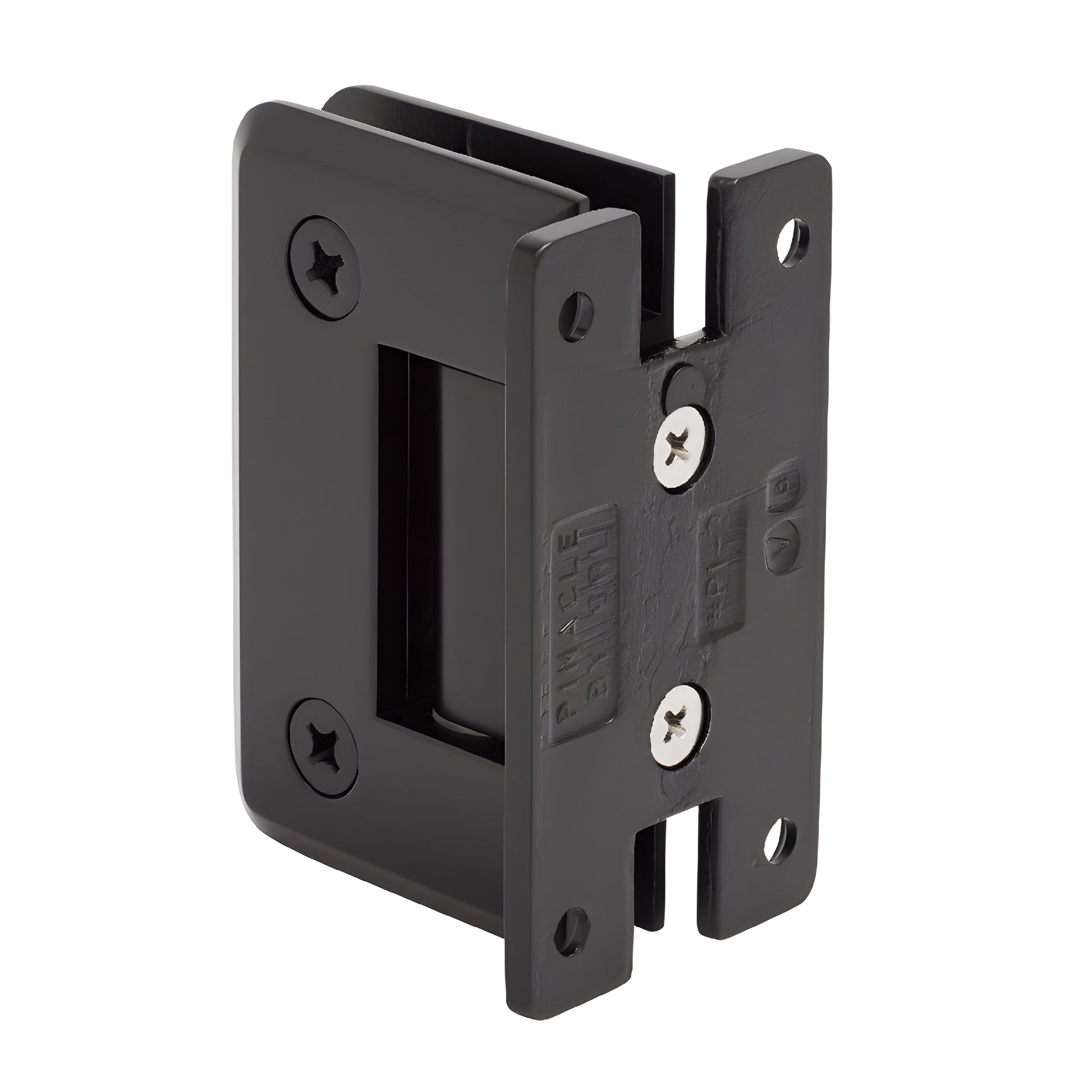

CRL 537 Oil Rubbed Bronze 5° Preset Wall Mount H Back-Plate Hinge

• Self-centering brass shower door hinge with reversible 5° pivot pin
• Available in several finishes
• Three year warranty
• 5° pre-set model (factory set for tighter closure into shower interior)
• For use with monolithic tempered safety glass

The CRL Pinnacle Hinge is a radius‑corner, beveled‑edge alternative to our Geneva Series, offering a sleeker aesthetic for frameless showers. Pinnacle Hinges fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are self-centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, these tempered glass shower hinges provide durable, reliable door closure. The Pinnacle also includes the reversible 5° Pivot Pin used in our Geneva, Cathedral, Roman, Ultimate, and Elite Series. Custom pivot pins are available for off‑angle installations. SKU: P1N5370RB.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models are factory set to 85° (5° tighter closure into the shower). Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins (up to 45°) are available for installations where the wall does not meet the door at 90° and a different closing angle is required.

LOAD CAPACITY:
Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm).

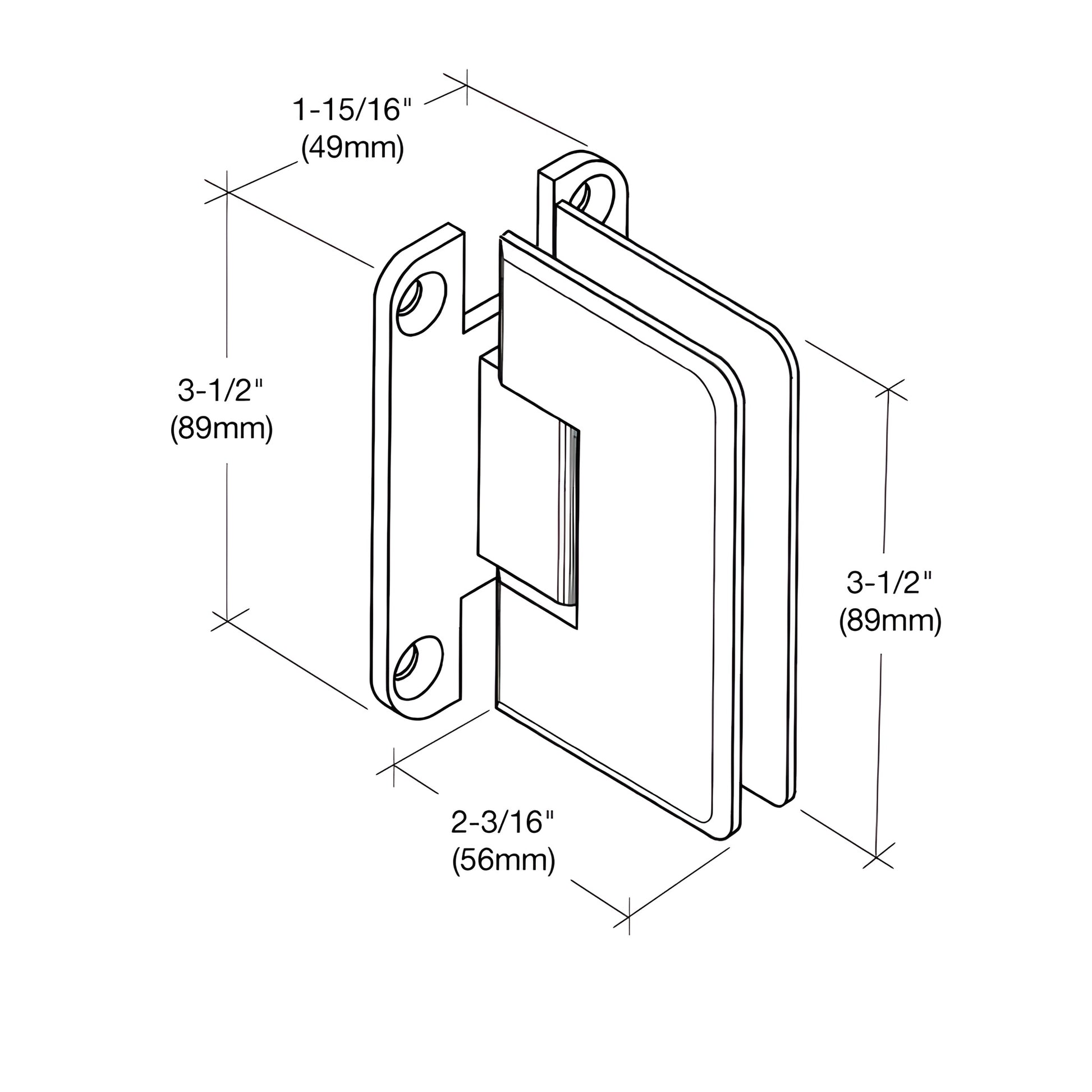

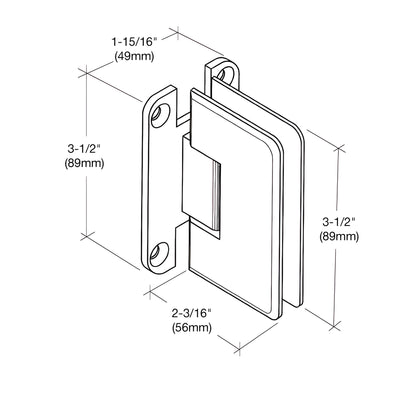

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall‑mount and 180° glass‑to‑glass models available as Standard (0°) or 5° Pre‑Set (tighter closure into shower interior).
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self‑centering when within 15° of closed position
Cut-out Required
Includes:
