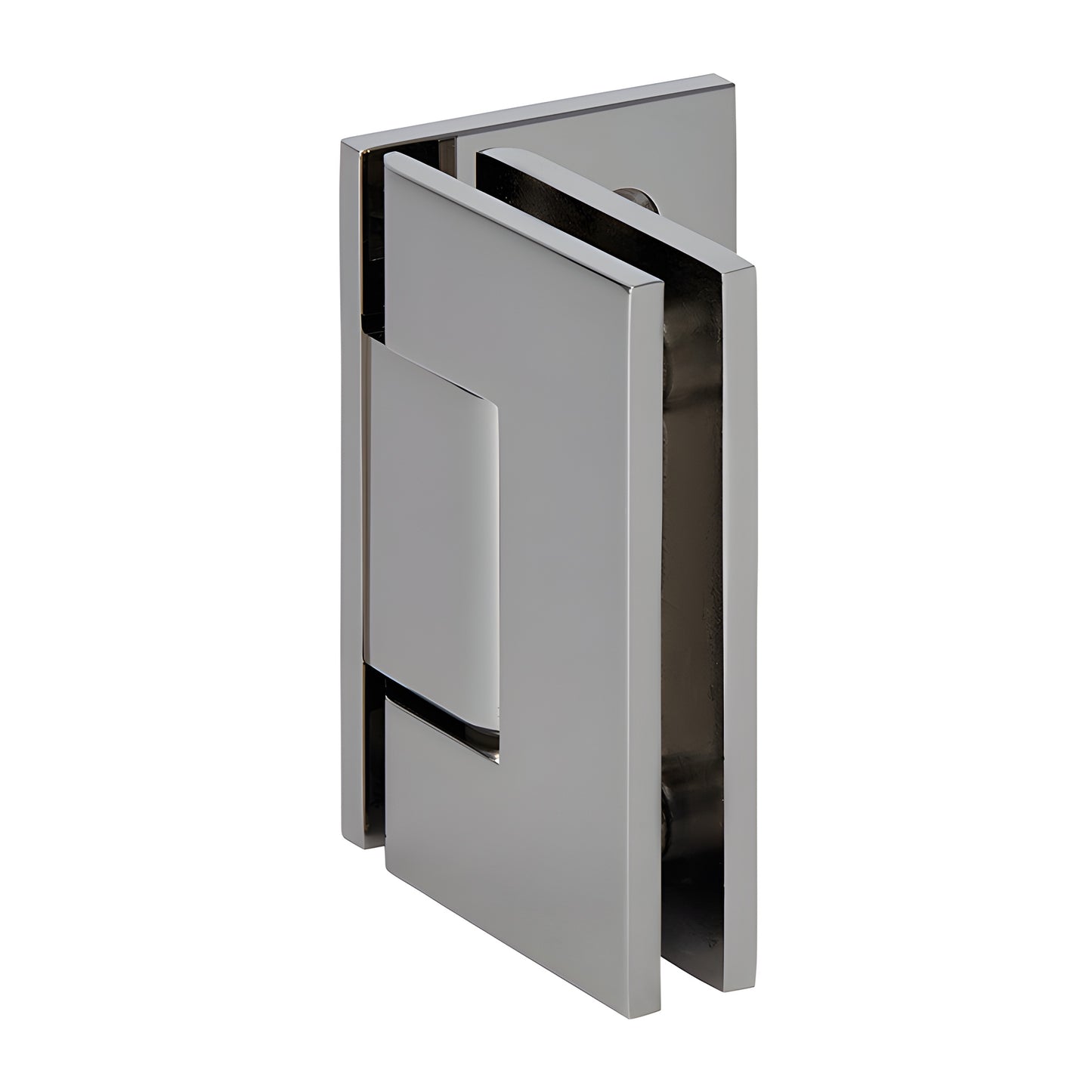

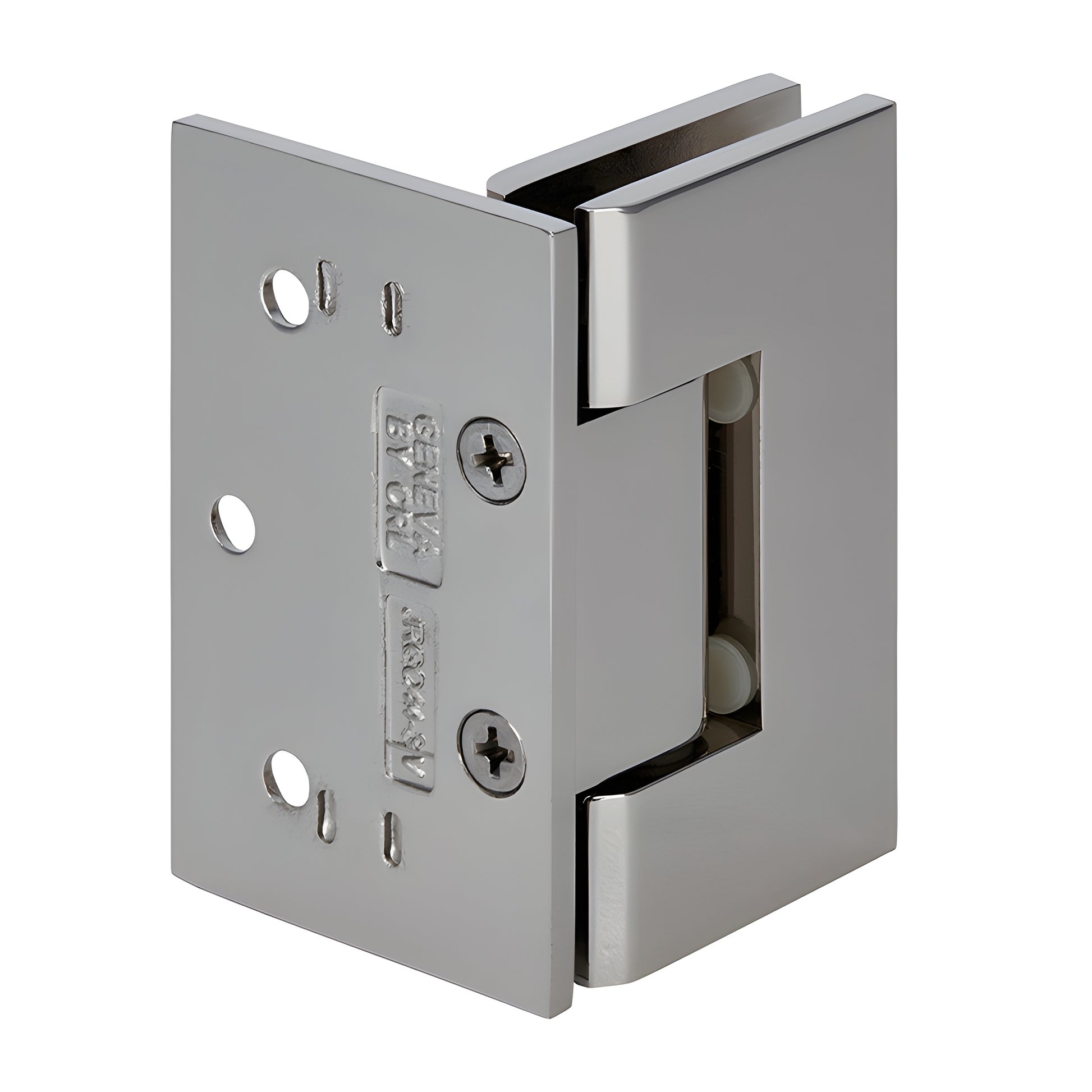

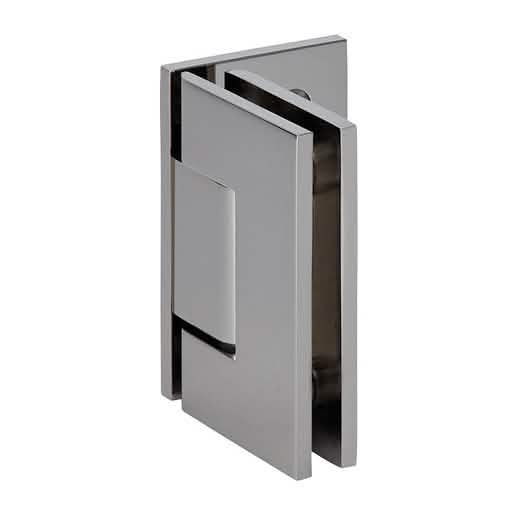

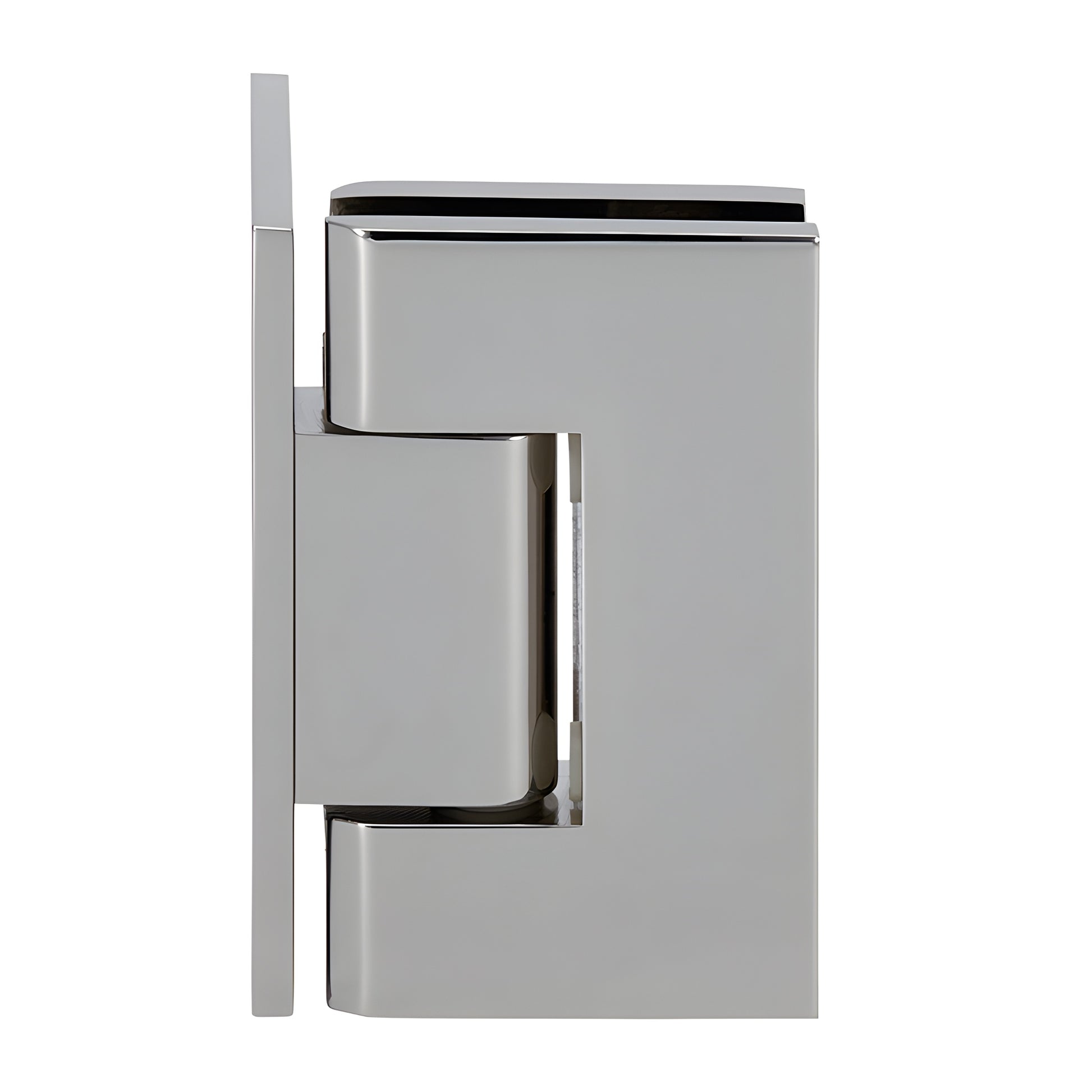

CRL Junior Geneva 044 Polished Nickel Wall-Mount Offset Hinge

• Wall Mount Offset Back Plate (allows clean sight line from shower exterior)
• Self-centering hinge with reversible 5° pivot pin
• Available in up to 12 durable finishes
• 3 Year Warranty
• For monolithic tempered glass (1/4" / 6 mm to 5/16" / 8 mm)

The same elegant European styling of the Geneva Series is available in a smaller, more versatile model: the Junior Geneva (SKU JRG044PN). This solid-brass glass shower hinge is designed for 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass and comes in wall-mount and glass-to-glass configurations (90°, 135°, 180°). Ideal as a brass glass shower hinge or stainless-look replacement, the Junior Geneva offers reliable performance for frameless shower doors and custom shower enclosures.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Rotate the pin to engage the 85° side for an additional 5° tighter door closure—useful for sealing into the shower opening.

CUSTOM PIVOT PIN: For off-angle installations, optional custom pivot pins are available (specify angle up to 45°) to accommodate walls that do not meet a door at 90°.

LOAD CAPACITY & DOOR WIDTH:

• Using two hinges with 1/4"–5/16" glass, supports up to 62 lbs (28 kg) and a maximum door width of 28" (711 mm).

• Using three hinges with 1/4"–5/16" glass, supports up to 92 lbs (42 kg) and a maximum door width of 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass

Special Features: Choice of Standard Model (0°) or 5° Pre-Set Model for tighter closure; all models include the reversible 5° pivot pin

Construction: Solid brass

Hinge Swings: 90° in and 90° out

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions
