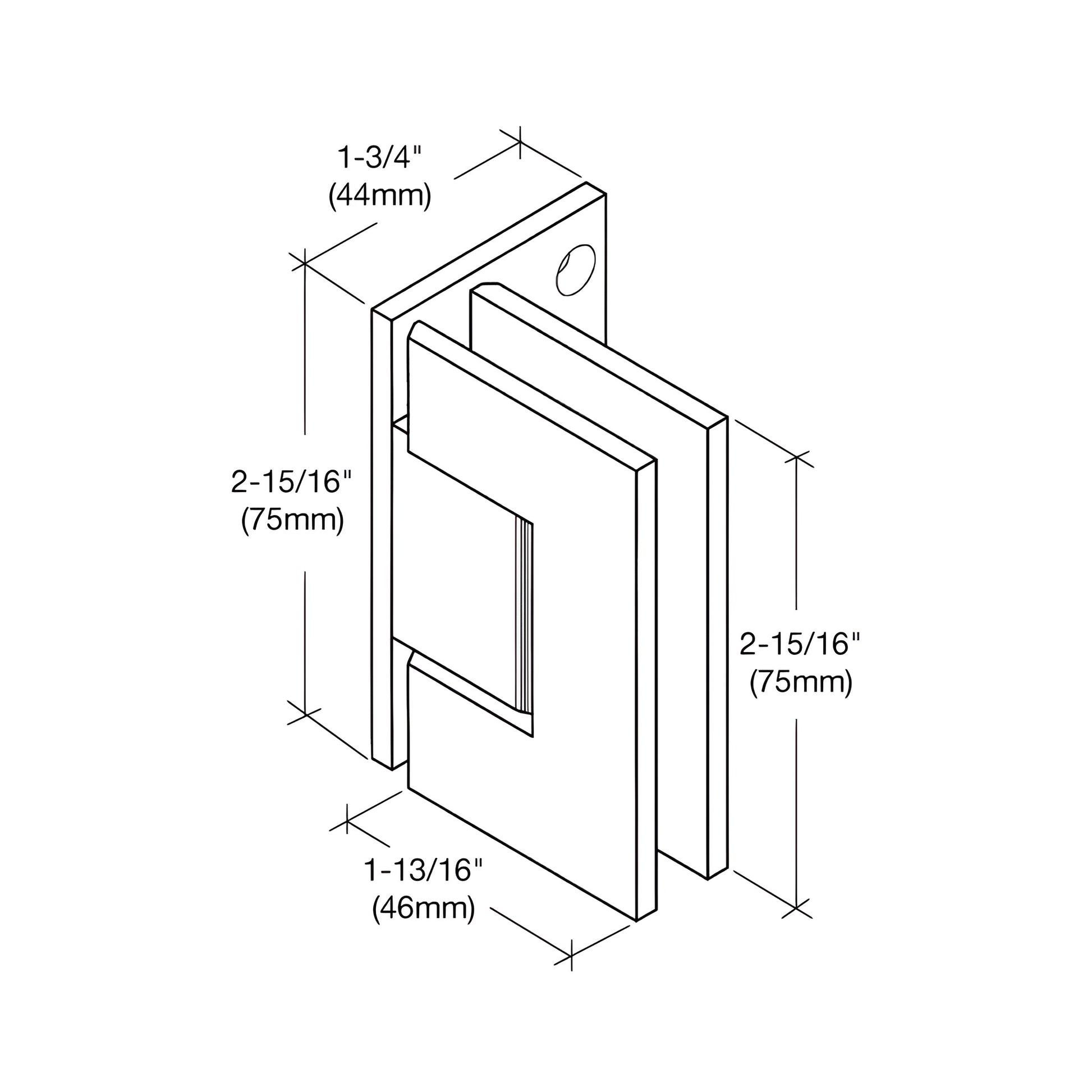

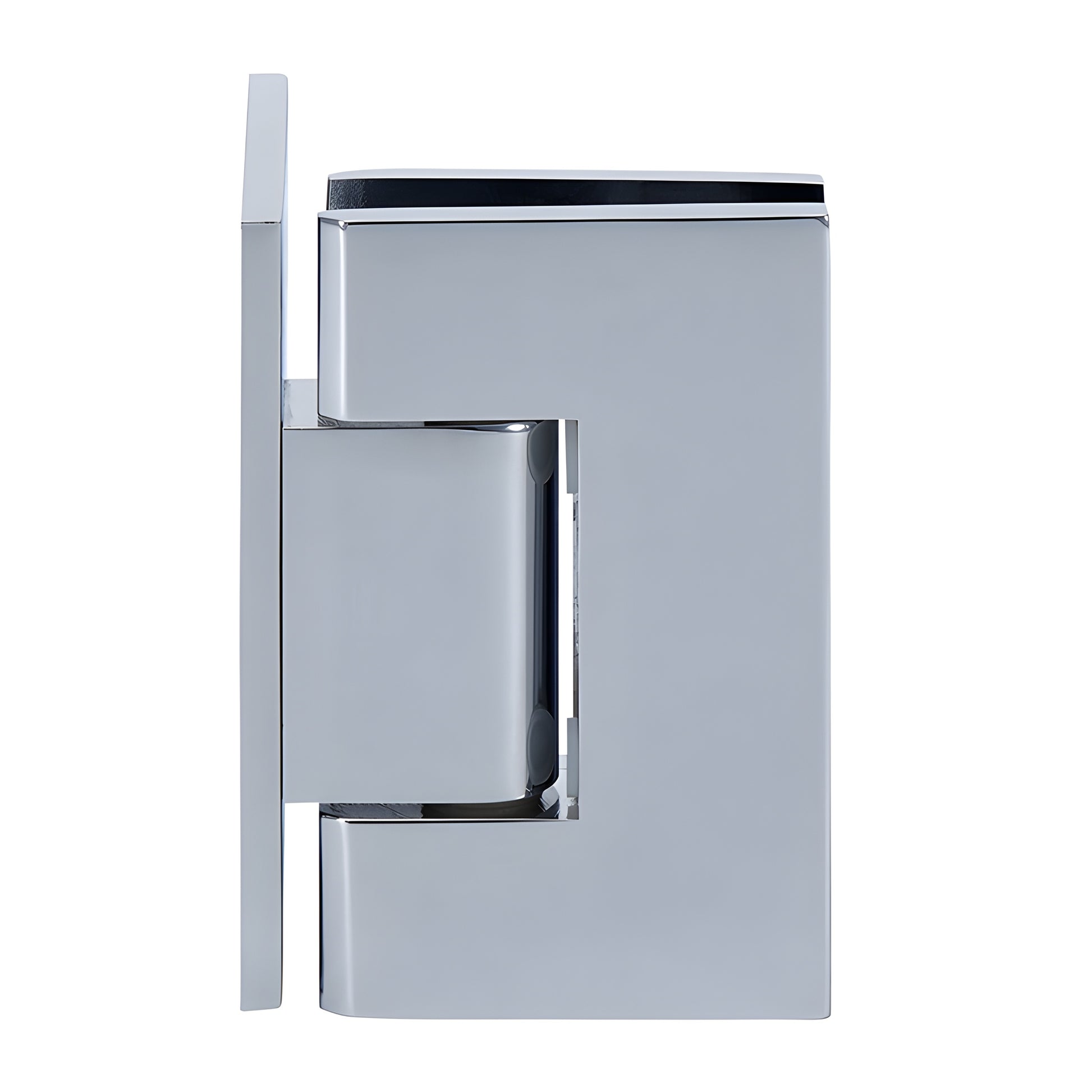

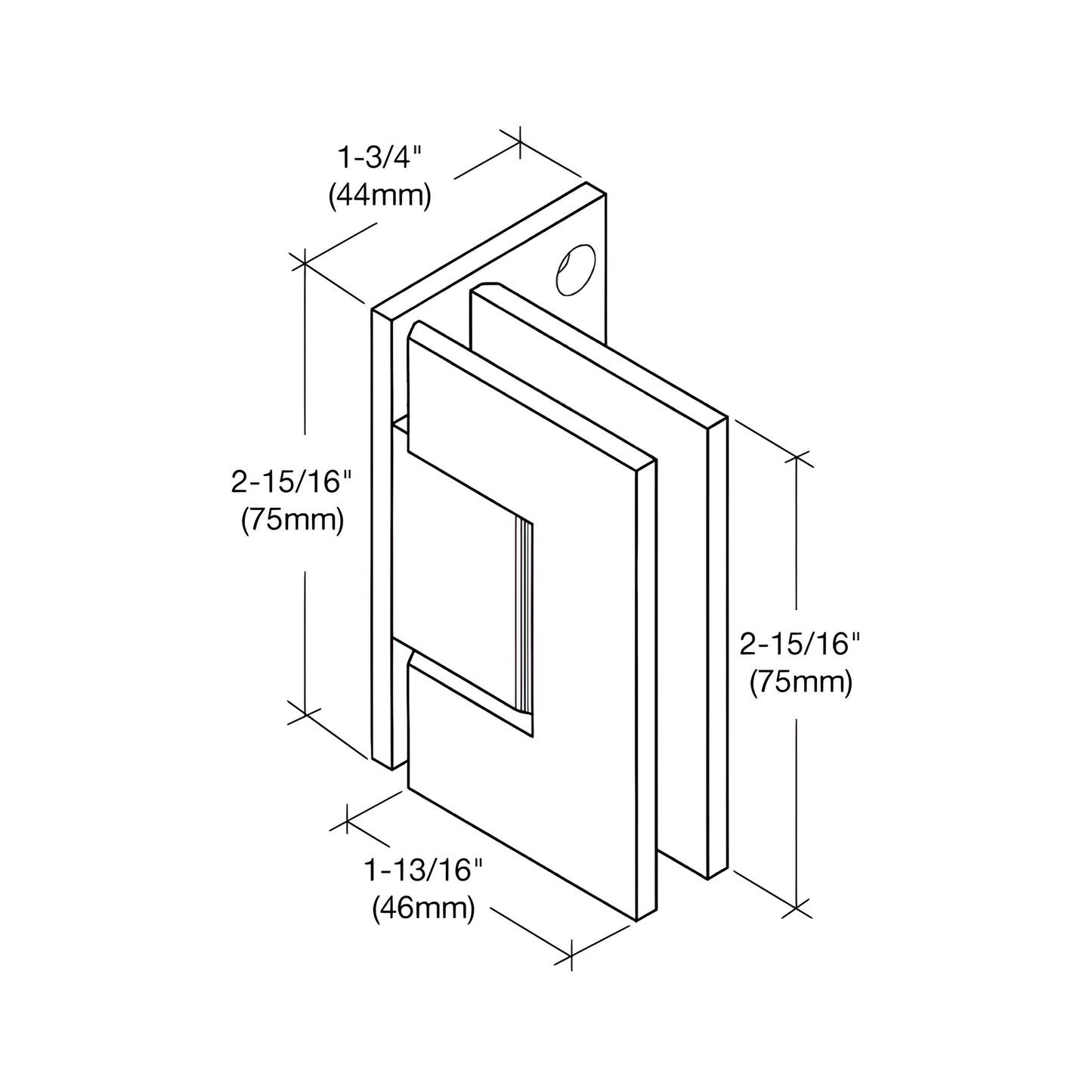

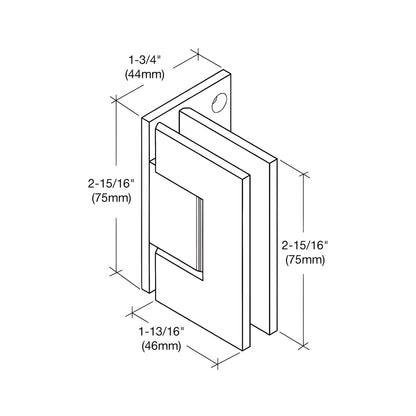

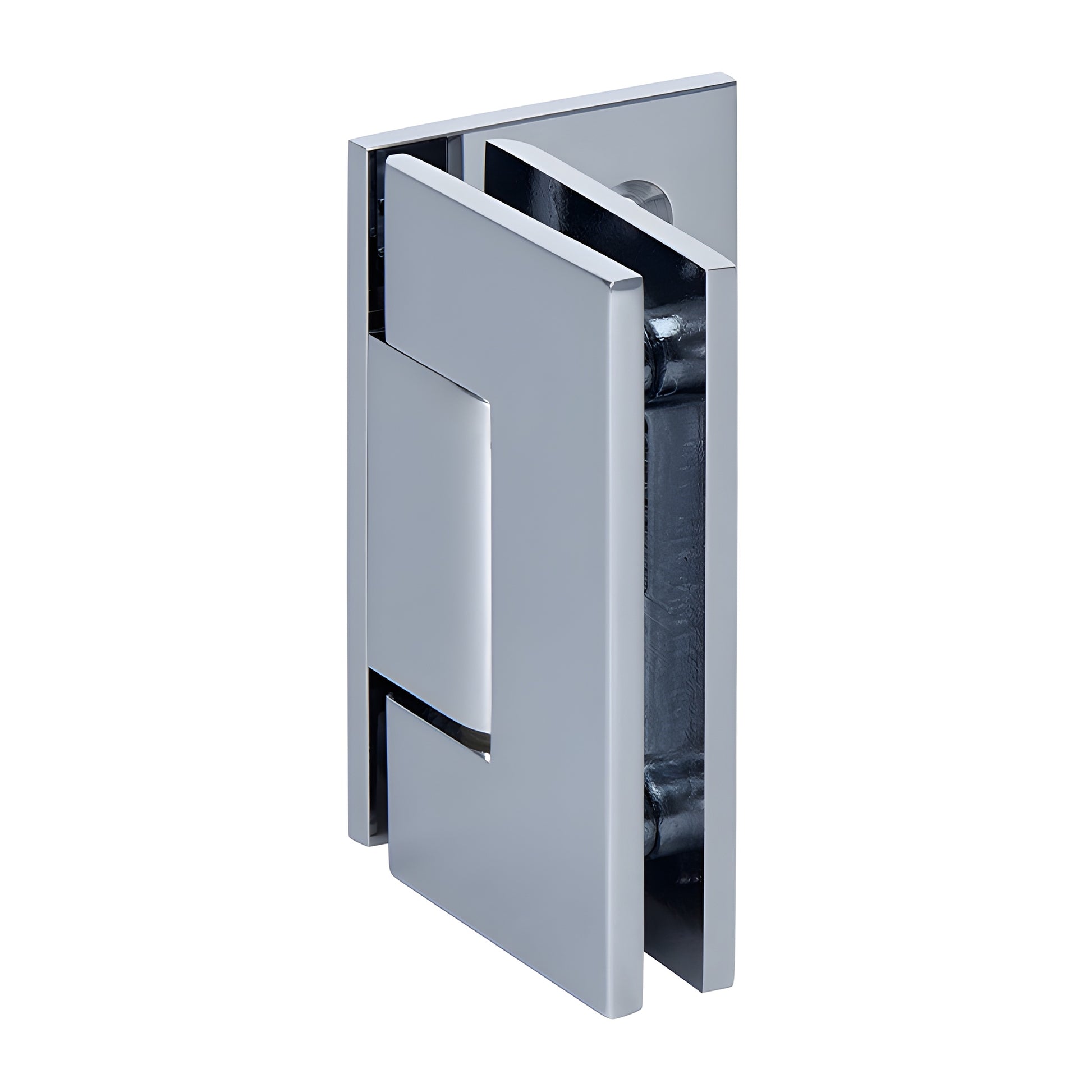

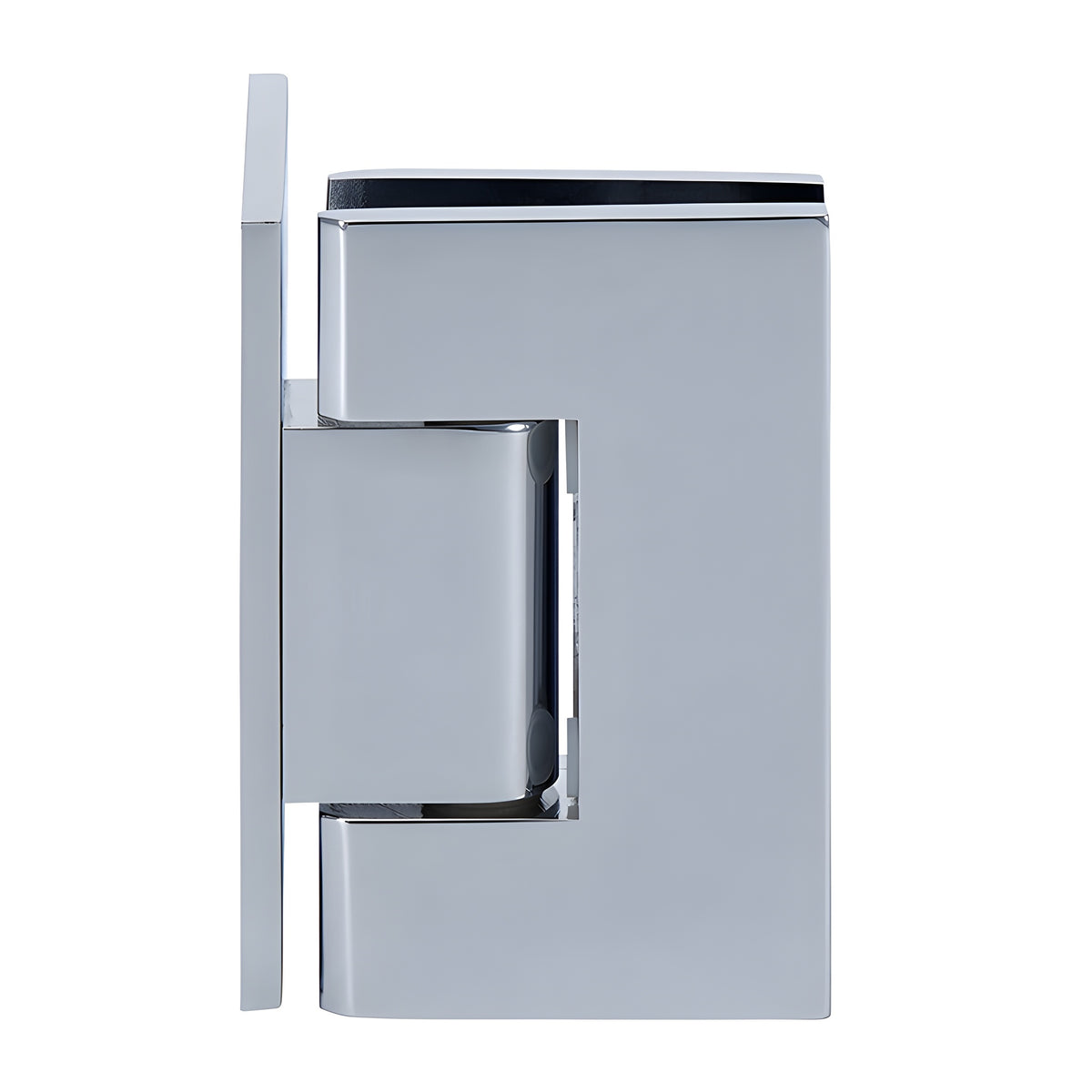

CRL Junior Geneva 044 Polished Chrome Wall-Mount Offset Hinge

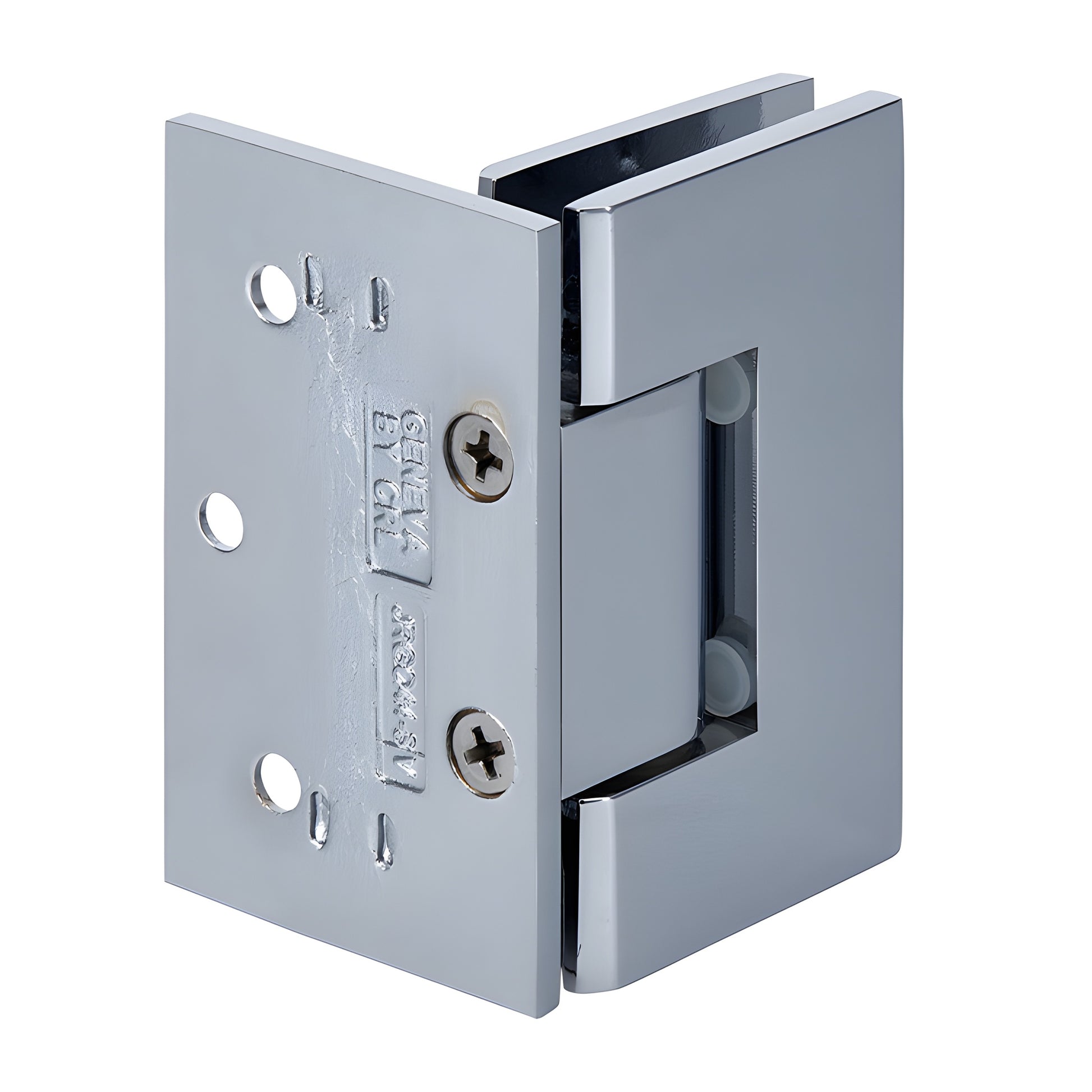

• Wall Mount Offset Back Plate (allows clean sight line from shower exterior)
• Self-centering with reversible 5° pivot pin for tighter closure
• Available in up to 12 stock finishes
• 3 year warranty
• Designed for monolithic tempered safety glass

The same elegant European styling of the Geneva Series is available in a compact model — the Junior Geneva (SKU JRG044CH) — for flexible shower door installations. Engineered for 1/4" (6 mm) to 5/16" (8 mm) tempered glass, the Junior Geneva is machined from solid brass and offered in wall-mount and glass-to-glass configurations (90°, 135°, 180°). Ideal long-tail search phrases: solid brass shower door hinge for 6mm glass, reversible 5-degree pivot shower hinge, compact European shower hinge for tempered glass.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with one side marked 90° and the other 85°, enabling a 5° tighter door closure into the shower. Rotate the pin (do not flip) to select the desired closing position.

CUSTOM PIVOT PIN: Custom pivot pins up to 45° are available for off-angle installations when the standard 5° adjustment is insufficient.

Load Capacity:
Using two hinges with 1/4"–5/16" (6–8 mm) glass: holds up to 62 lbs (28 kg), max door width 28" (711 mm).
Using three hinges with 1/4"–5/16" (6–8 mm) glass: holds up to 92 lbs (42 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass
Special Features: Option of factory-set standard model (0°) or 5° pre-set model for tighter closure; all models include reversible 5° pivot pin.
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other applications obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions may differ from other brands.
