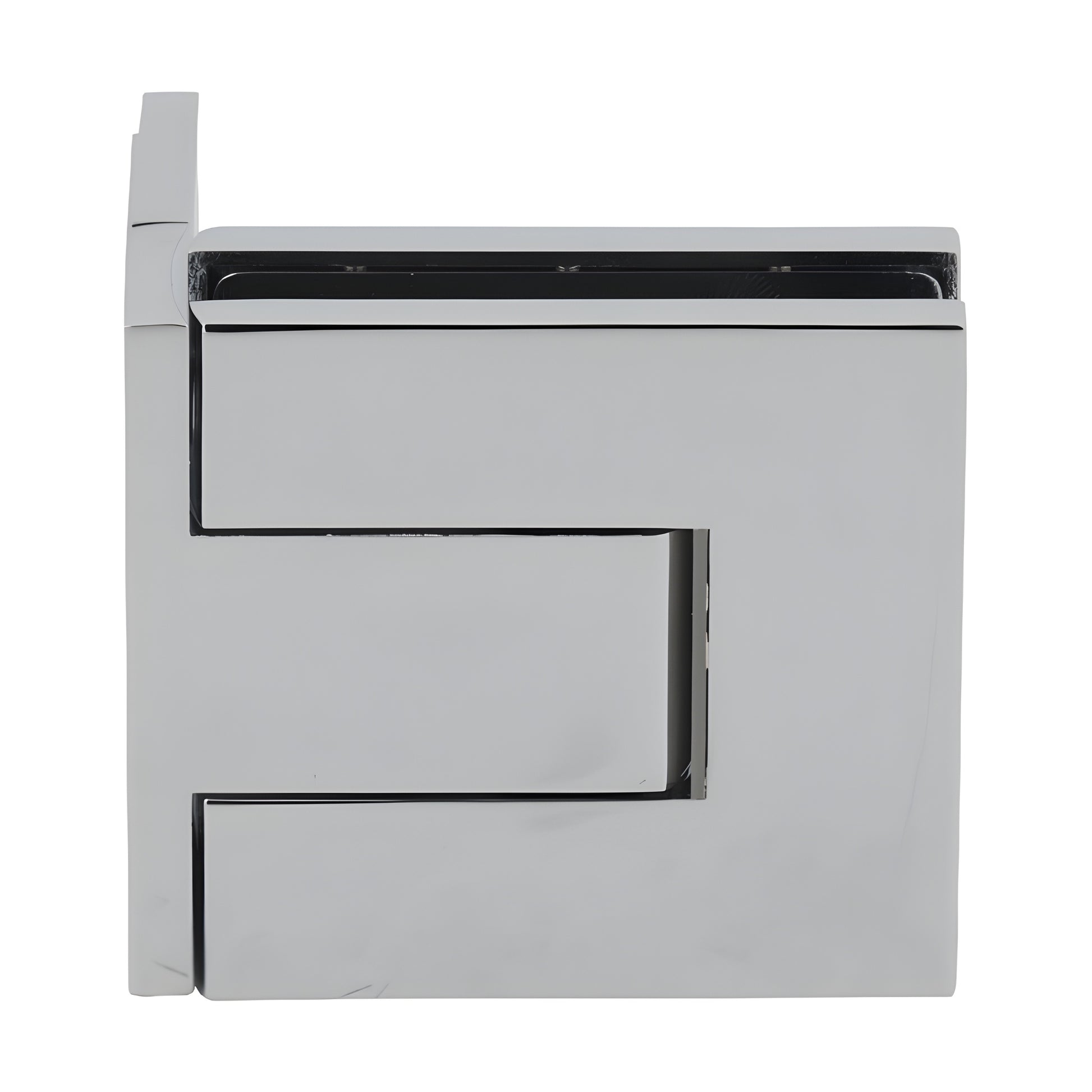

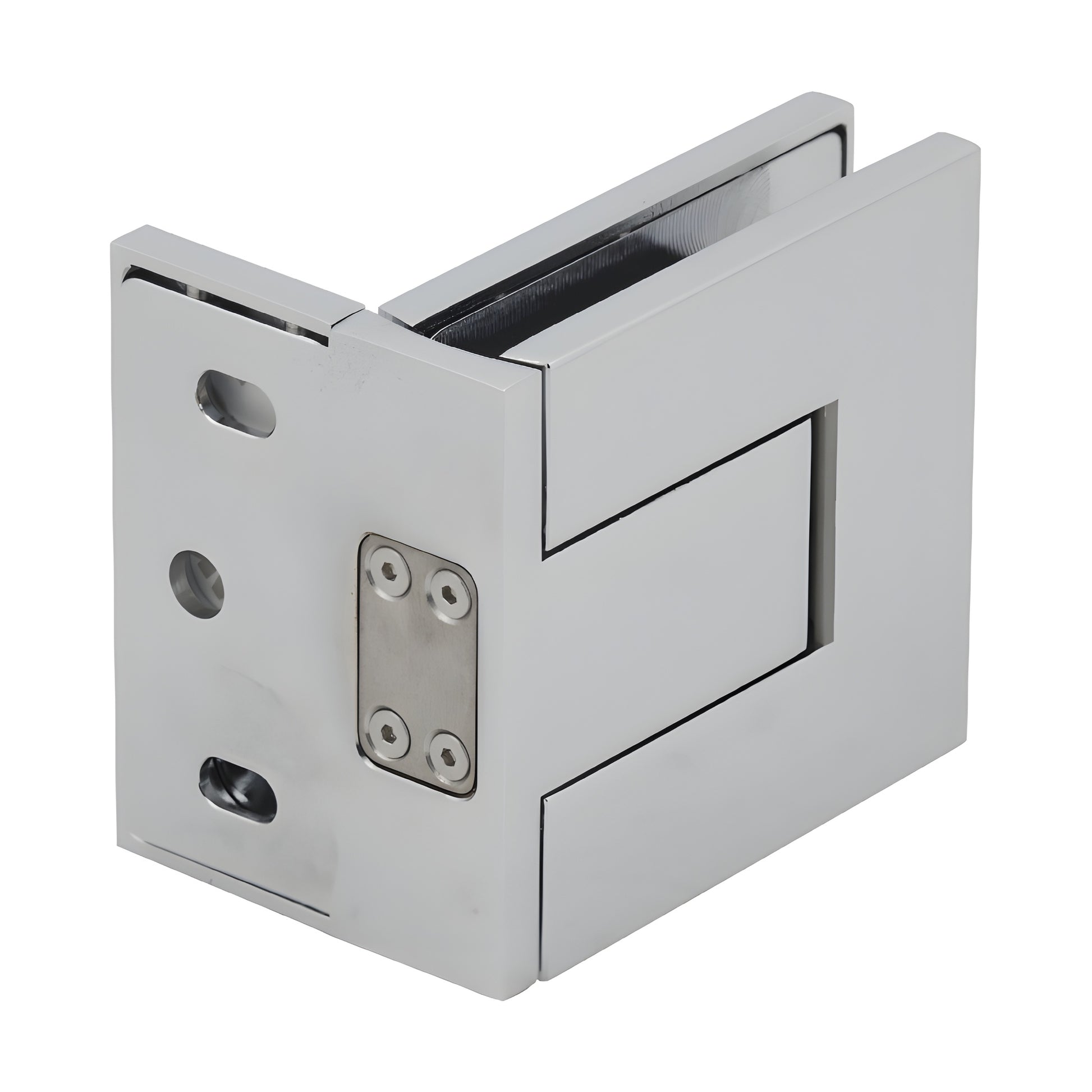

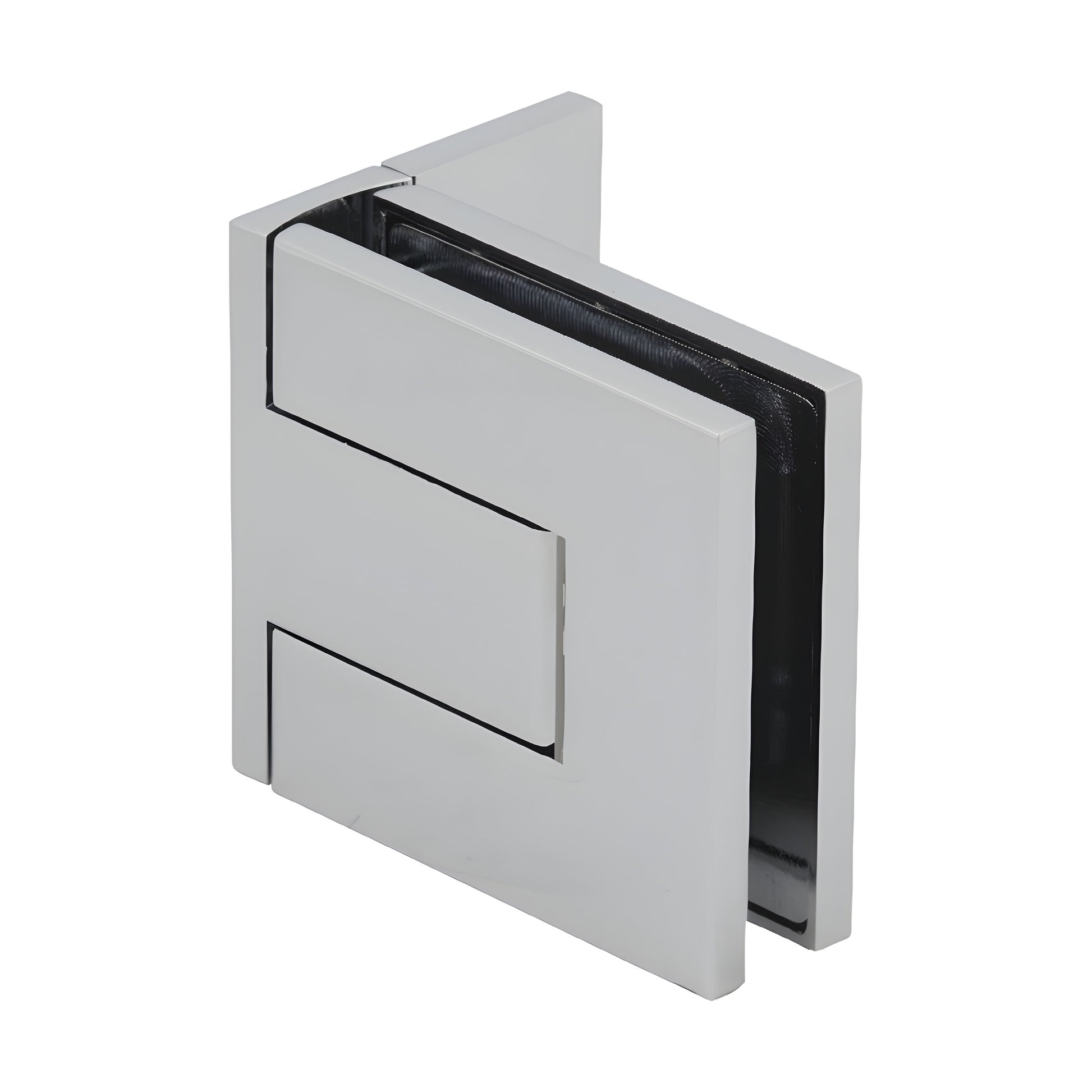

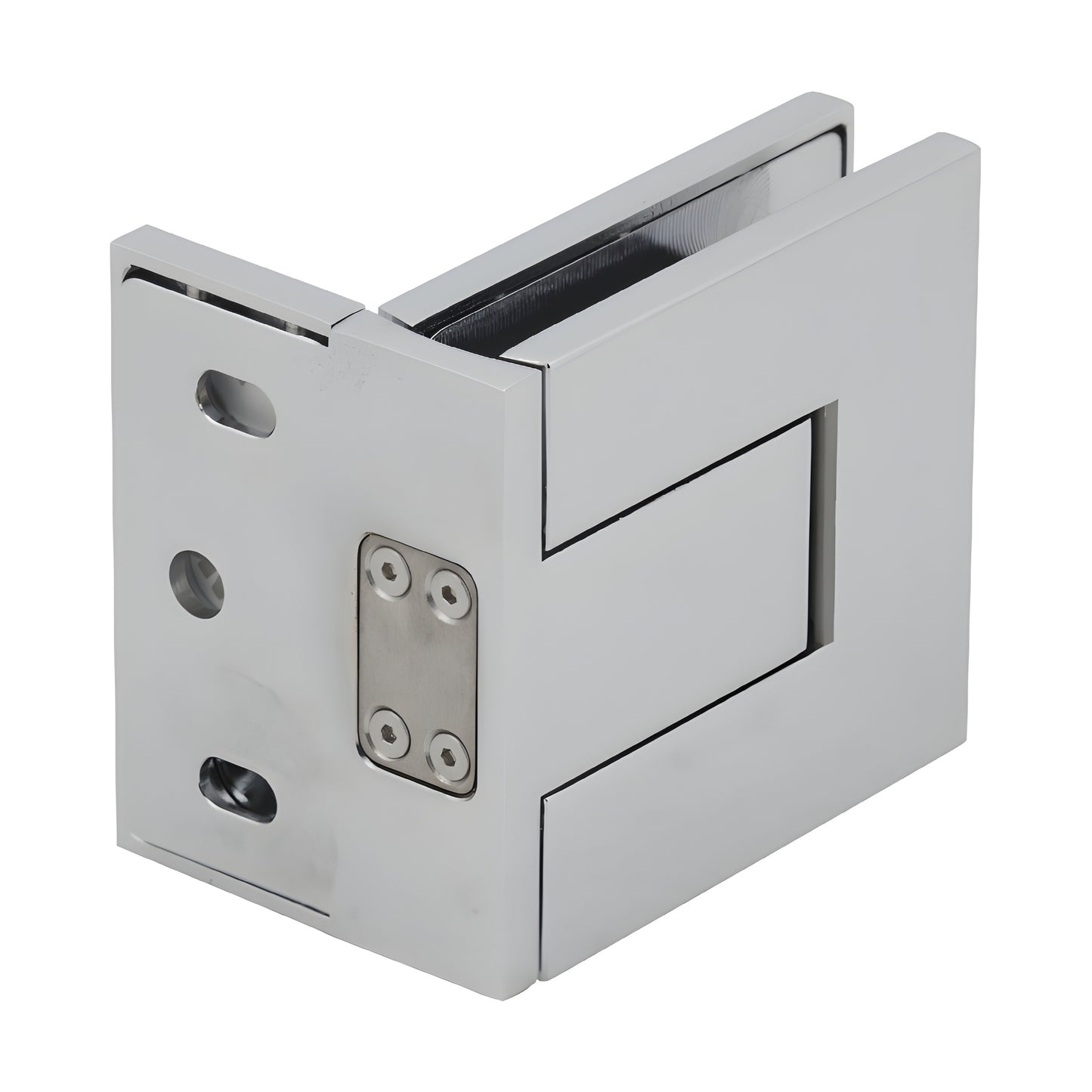

CRL Polished Chrome Palermo Adjustable Wall Mount Offset Back Plate Hinge
Item # PAL044CH
$178.54
CAD
Finish (3)
-
Brushed Nickel -
Polished Chrome -
Matte Black
Mounting Type (2)
- Wall Mount
- Glass To Glass
Overview
| SKU | PAL044CH |
|---|---|
| Sold As | 1 Each |
| Back Plate | Offset |
| Edge Profile | Square |
| Finish/Color | Polished Chrome |
| Glazing Thickness | 3/8 in. - 1/2 in. (10mm - 12mm) |

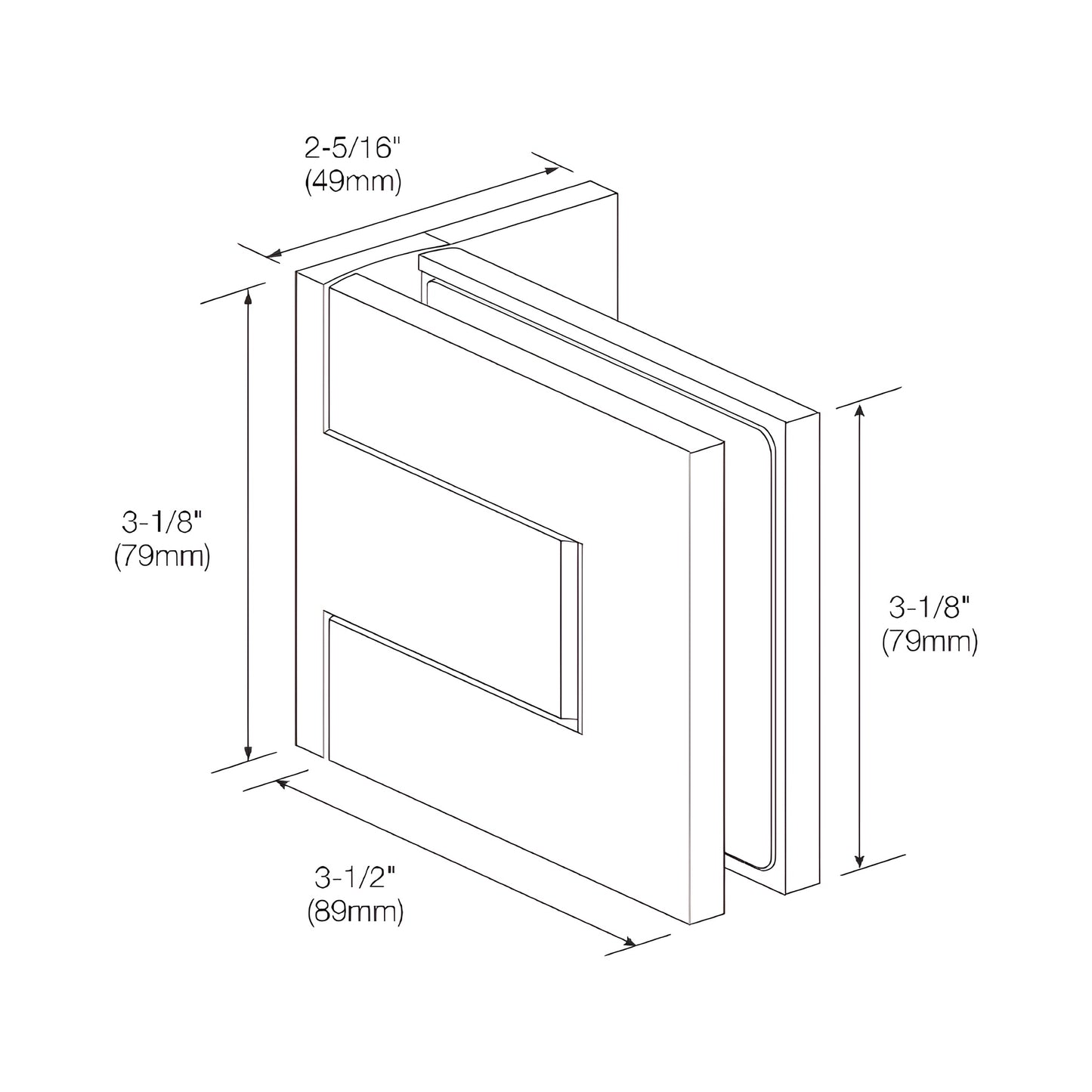

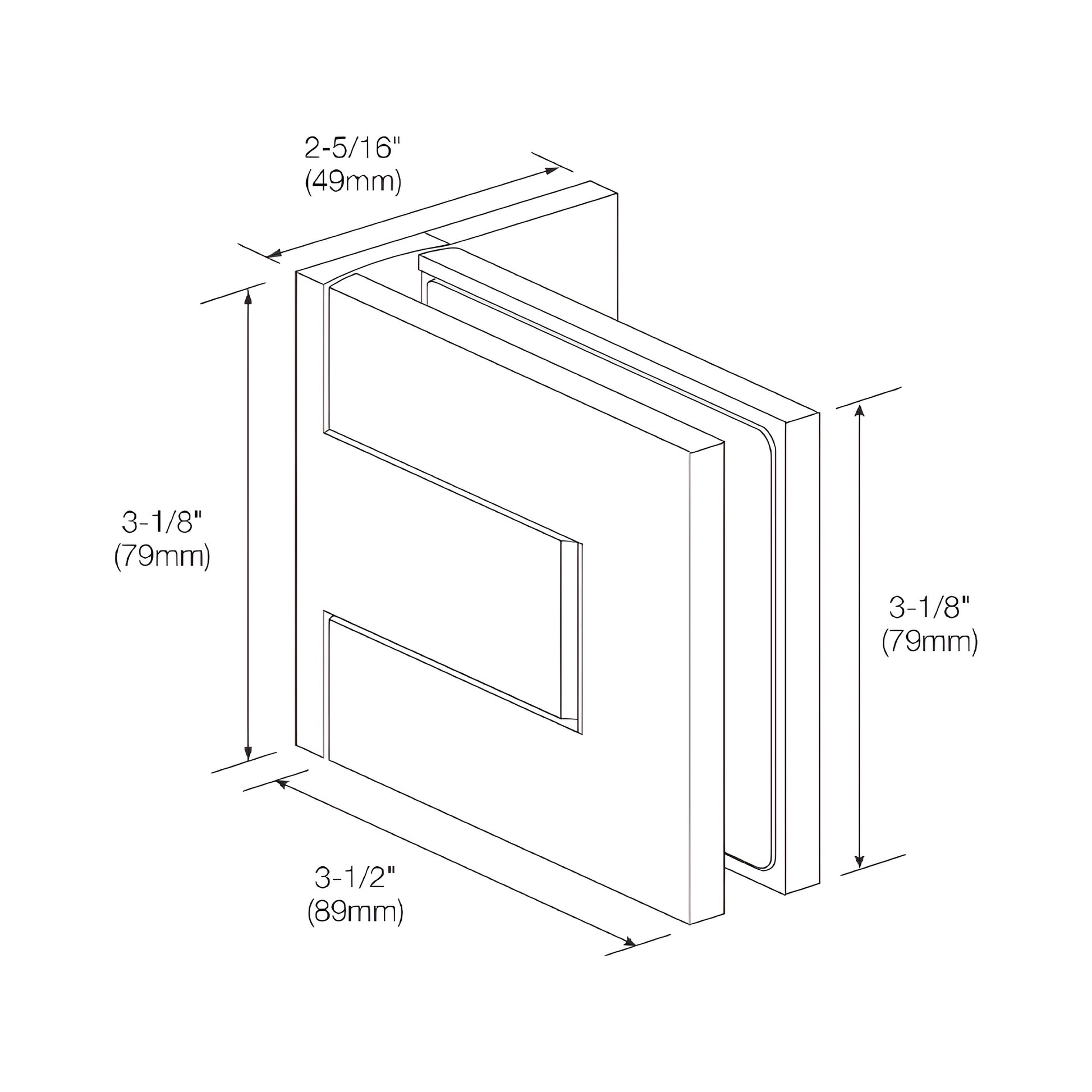

| Height | 3-1/8 in. (79 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight | 110 lbs. (49.9 kg) |
| Maximum Door Width | 39 in. (991 mm) |
| Mounting Type | Wall Mount |
| Width | 3-1/2 in. (89 mm) |
Description
- Sleek New Design
- Works with 3/8" and 1/2" (10 mm and 12 mm) glass
- Adjustable closing position with the door in place
- Handles up to a 39" (1 m) wide door using two hinges
- Apply medium-strength threadlocker on cover plate screws
The sleek Palermo Series Hinge is unlike any other hinge. The precision lines help shape the unique design of this hinge for 3/8" to 1/2" (10 mm to 12 mm) glass. All fasteners are concealed. The hinge has an adjustable closing position that is accessed when the door is hung. The hinges are self-centering within 30° of the closed position. Using two hinges, a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg.) can be achieved.
