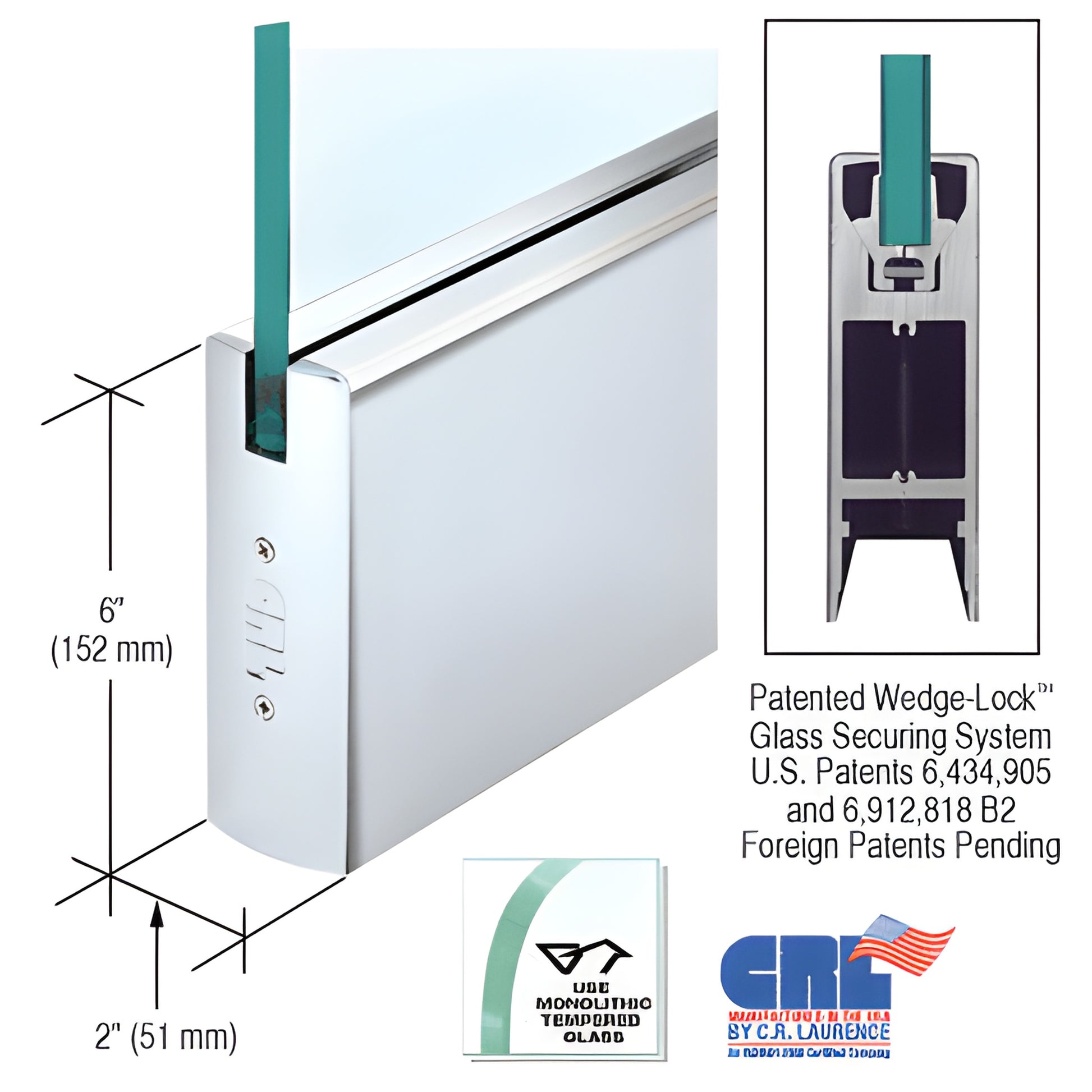

CRL Polished Stainless Door Rail 35-3/4" for 1/2" Glass No Lock

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System (high-force, fast-install design)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

An innovative glass door rail engineered for security and fast installation, the CRL Wedge-Lock® Door Rail System (SKU: DR6SPS12S) uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). The Wedge-Lock design applies downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions engage the door rail wedge to generate very high clamping force (more than 900 lbs. in our 9" corner rail), producing a reliable, long-lasting glass-to-rail attachment.

NOTE: Actual product height: 6" (152 mm)

The Wedge-Lock® Glass Securing System provides industry-leading installation speed—experienced installers can prepare a door in under ten minutes. Rails ship fully fabricated and ready to install with end caps pre-installed. After rail installation, simply attach the door arm or pivot (not included) to the adjustable door alignment slide that ships assembled in the rail.

The Adjustable Door Alignment System allows ±1/8" (3.2 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door. End-cap access reveals three socket head cap bolts: the center bolt secures the slide; the outer bolts adjust the slide in or out. The low-profile slide lets pivots be positioned off the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Why choose CRL Wedge-Lock® Door Rails (long-tail keyword: glass door rail system for 1/2 inch glass)?

• Accepts 3/8" or 1/2" (10 or 12 mm) glass
• Rigid single-component housing that resists shifting or loss of adjustment
• No internal component removal required before installation
• Durable glass securing pads designed for longevity in extreme environments
