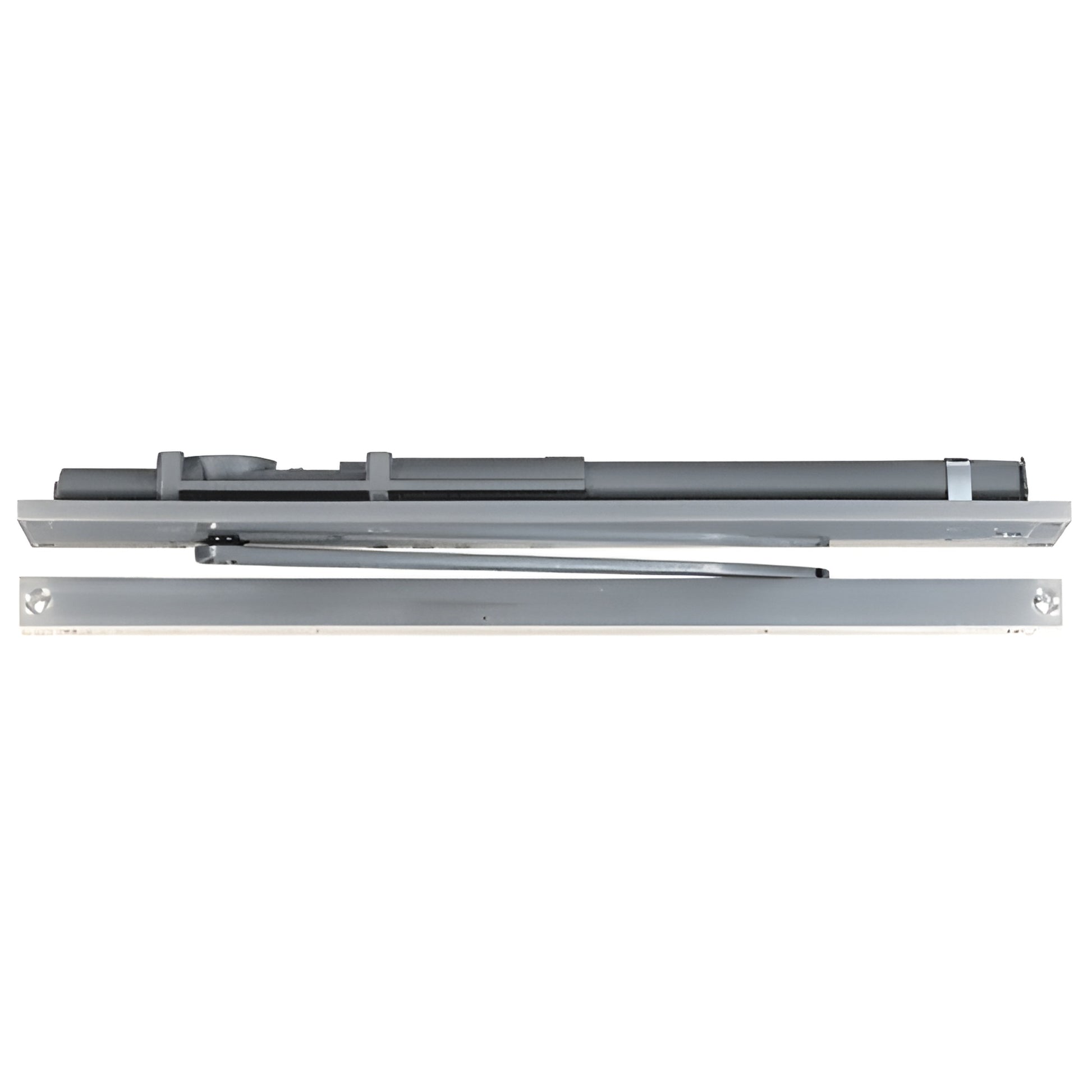

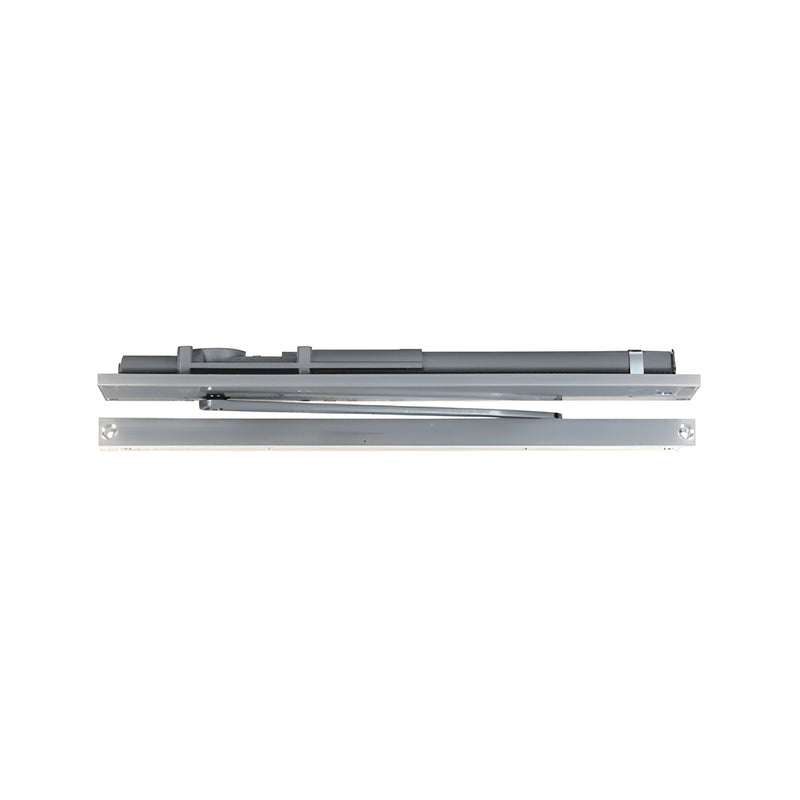

LCN Overhead Concealed Closer 1 ADA Left Hand No Hold Open, Aluminum
LCN Overhead Concealed Closer 1 ADA Left Hand No Hold Open, Aluminum
Regular price
$2,790.57 CAD
Regular price
Sale price
$2,790.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2031LAL
Shipping Weight: 15.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-5/8 in. (41.3 mm)
Body Length
20-5/8 in. (523.9 mm)
Body Width
3-23/32 in. (94.5 mm)
Case Quantity
2
Closer Type
Overhead Concealed
Cover Plate Length
21-7/8 in. (555.6 mm)
Cover Plate Width
4 in. (101.6 mm)
Door Height
96 in. (2438.4 mm)
Handing
Left Hand
Hold Open Option Available
Yes
Maximum Door Width - Exterior
36 in. (914.4 mm)
Maximum Door Width - Interior
36 in. (914.4 mm)
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-3/8 in. (34.9 mm)
Slide Track Length
22-1/2 in. (571.5 mm)
Spring Size
5
UL Listed
Yes
Overview
- Requires minimum 1-3/4" x 4" (44.5 x 102 mm) shallow transom opening
- Certified to ANSI A156.4, Grade 1 heavy-duty closer
- UL and cUL listed for self-closing doors (without hold-open)
- Fixed spring sizes available: interior doors up to 54" (1.37 m); exterior doors up to 42" (1.07 m)
The LCN 2030 Series Pacer® Overhead Concealed Closer is a heavy-duty, overhead concealed closer engineered for shallow transoms. Its single lever arm and roller assembly deliver smooth, quiet door control. Available in multiple finishes and track functions to meet architectural requirements, the closer is handed for right or left swing doors and offers fixed spring sizes that accommodate ADA reduced-force needs for specified door widths. UL and cUL listings and ANSI A156.4 Grade 1 certification ensure commercial-grade performance and code compliance.
Product Warning:
Reduced-force ADA closers adjusted to meet ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch the door. Verify application requirements before installation.
SKU: 2031LAL — Shop the LCN 2030 Series overhead concealed closer for commercial and ADA applications. Contact us to order or request installation details.
Specifications
Installation Instructions
