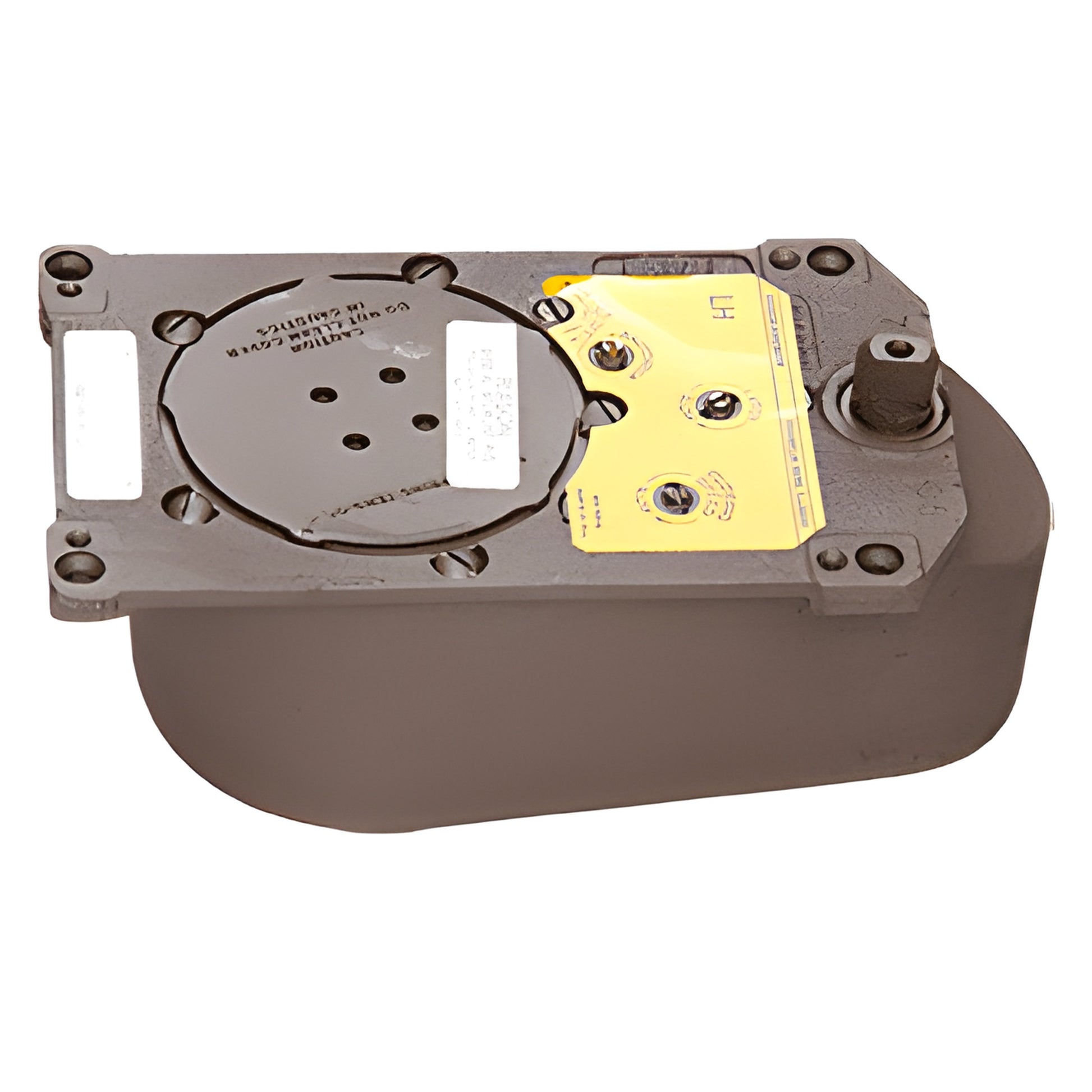

Rixson® 328 Center-Hung Floor Door Closer Body LH 90° Hold-Open
Rixson® 328 Center-Hung Floor Door Closer Body LH 90° Hold-Open
Regular price
$1,917.18 CAD
Regular price
Sale price
$1,917.18 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 32890SH0LHB0DY
Shipping Weight: 19.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 19.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 117.1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height
96 in. (2438.4 mm)
Door Opening
90 °
Handing
Left Hand
Hold Open
90
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
38 in. (965.2 mm)
Maximum Door Width - Interior
38 in. (965.2 mm)
Maximum Weight Center Hung
325 lbs. (147.4 kg)
Non Stocked Parts and Acessories Special Order
Yes
Patch Fitting Usage
Yes
Recommended Door Type
Patch Fittings
Selective Hold Open
Yes
Series
328
Similar
BTS75VBF90HO, J993HOD, J904HOD
Tapered Spindle Design
Yes
UL Listed
Yes
Overview
- Tapered spindle design intended for use with patch fittings
- For exterior or interior doors weighing up to 325 lbs. (147 kg) and 42" (1.07 m) wide
- Selective on/off hold open
This Rixson® Model 328 Center-Hung Floor Mounted Door Closer offers reliable mechanical control for heavy doors and is specifically engineered for use with the tapered spindle insert used in patch fittings. It supports exterior or interior doors up to 325 lbs. (147 kg) and 42" (1.07 m) wide, making it a durable choice for commercial and residential center-hung applications.
Standard features include selective on/off hold open, a built-in positive dead stop, and separate independent valves for closing, latch and back check adjustments—ideal for precise door control and long-tail search queries like "center-hung floor mounted door closer for patch fittings" and "door closer for 325 lb doors."
Optional accessories that may be needed: Additional finishes and accessories are available upon request for quotation.
SKU: 32890SH0LHB0DY
Need this closer for a specific patch fitting or finish? Contact us for a quote or to confirm compatibility and lead times.
