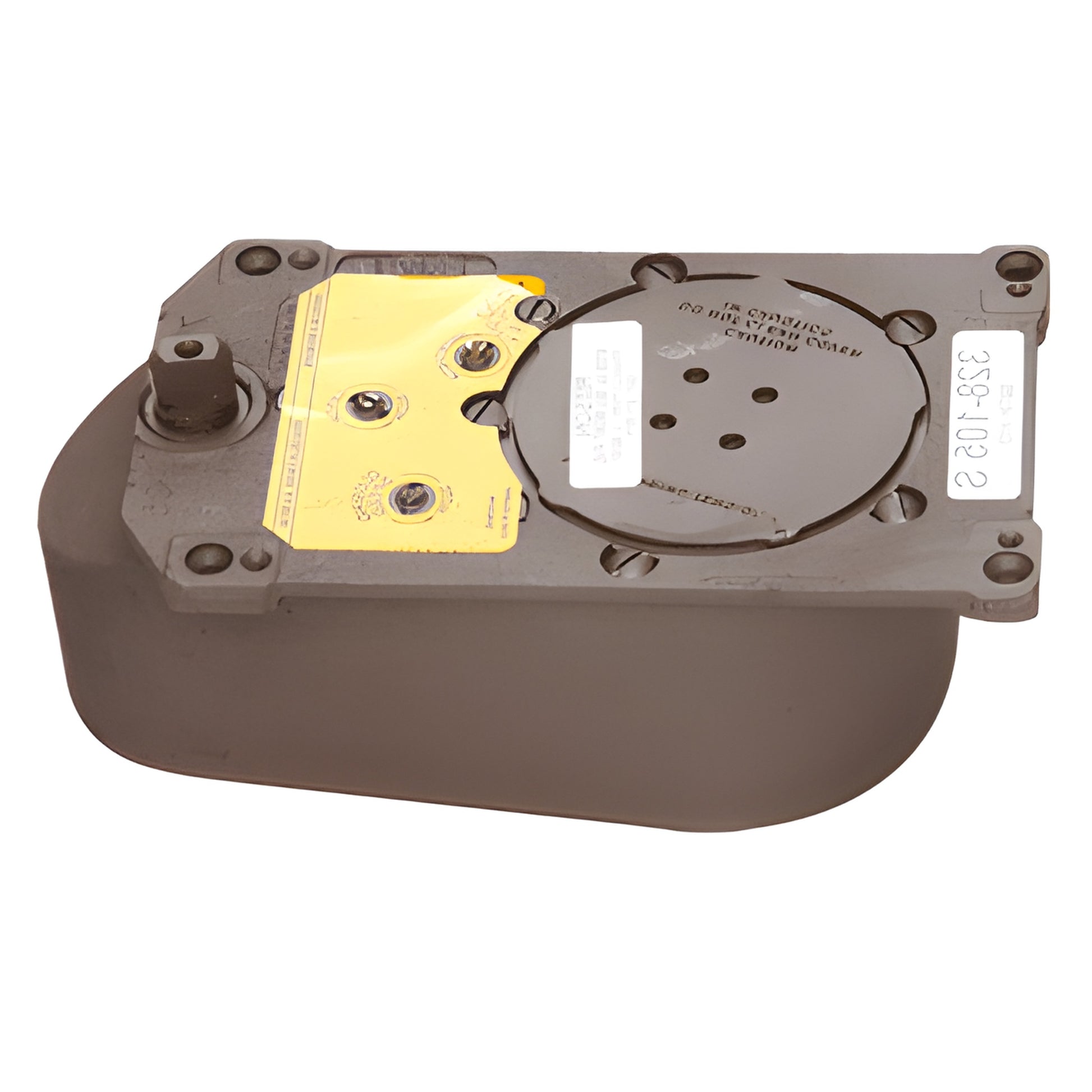

Rixson® 328 Series Center-Hung Right Hand 90º Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings

Handing (2)

Left Hand
Right Hand

Overview

SKU	32890SH0RHB0DY
Sold as	1 Each
Adjustable Hydraulic Backcheck	Yes
Body Height	4-1/16 in. (103.2 mm)
Body Length	11-1/8 in. (282.6 mm)
Body Width	5-7/8 in. (149.2 mm)
Brand	Rixson
Built In Positive Dead Stop	Yes
Certification	ANSI 117.1
Closer Body Only	Yes
Closer Type	Floor Closer
Door Height	96 in. (2438.4 mm)
Door Opening	90 °
Handing	Right Hand
Hold Open	90
Independent Closing and Latching Valves	Yes
Interior Or Exterior Doors	Yes
Maximum Door Width - Exterior	38 in. (965.2 mm)
Maximum Door Width - Interior	38 in. (965.2 mm)
Maximum Weight Center Hung	325 lbs. (147.4 kg)
Non Stocked Parts and Acessories Special Order	Yes
Patch Fitting Usage	Yes
Recommended Door Type	Patch Fittings
Selective Hold Open	Yes
Series	328
Similar	BTS75VBF90HO, J993HOD, J904HOD
Tapered Spindle Design	Yes
UL Listed	Yes

Description

Product Details

Tapered Spindle Design Intended for use with Patch Fittings
For Exterior or Interior Doors Weighing Up to 325 Lbs. (147 kg) and 42" (1.07 m) Wide
Selective On or Off Hold Open
253000 Floor Closer Cement Case
284720RH Closer Cover Additional finishes and accessories are available upon request for quotation.

This Rixson® Model 328 Center-Hung Floor Mounted Door Closer provides the best mechanical means of controlling a door. This model is specifically designed to be used with the tapered spindle insert used for patch fittings. This closer is capable of supporting exterior or interior doors weighing up to 325 lbs. (147 kg) and 42" (1.07 m) Wide.

Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and back check adjustments.

NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. If you need Rixson® products please contact our Technical Sales Department for assistance.
