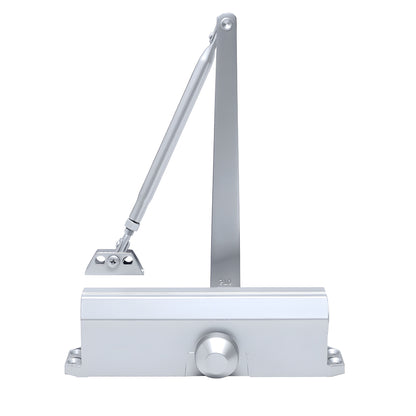

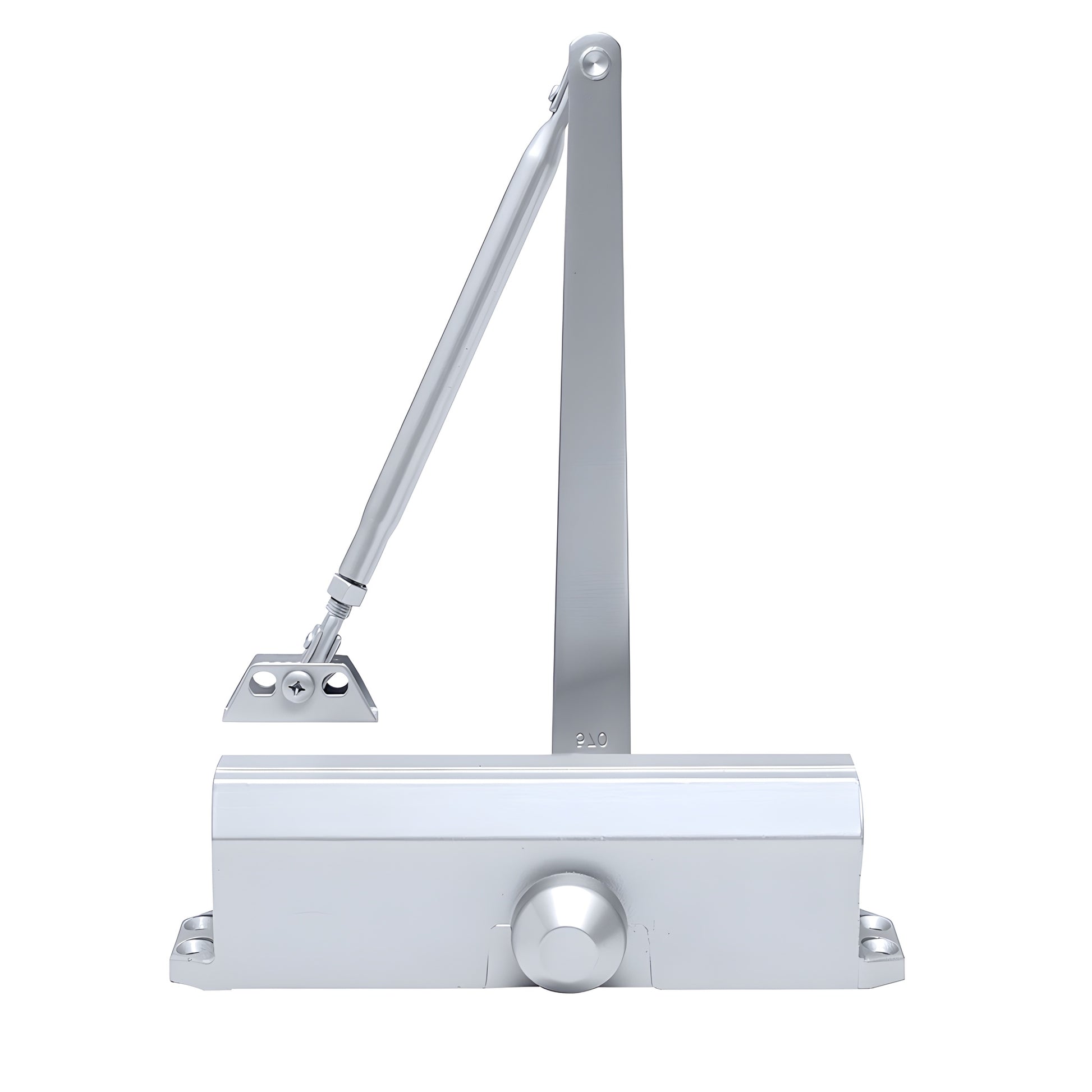

CRL Aluminum Surface-Mount Adjustable Spring Door Closer Size 2-5

• ANSI A156.4 - Grade 1 door closer
• Adjustable spring power, multi-size range 2 to 5

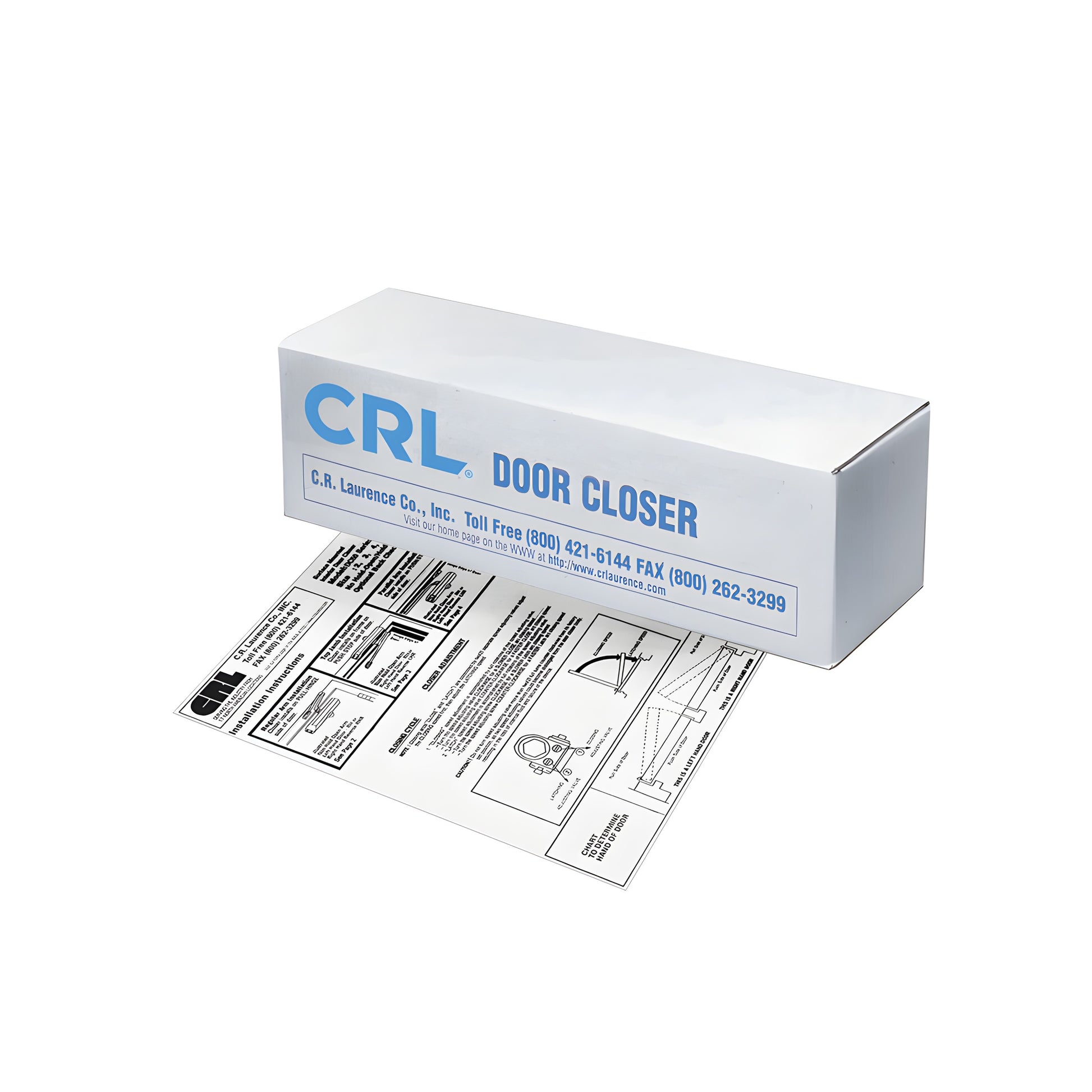

• Each PR40 Series closer ships with installation instructions
• Optional delayed action (ADA) model for handicap entrances and healthcare facilities
• UL Listed; 10-year warranty

When demanding specifications are required, consider our PR40 Series Surface Mounted Door Closers (SKU: PR42A). Engineered for high-traffic commercial doors in public buildings, airports, and shopping centers, this Grade 1 surface mounted door closer offers independently adjustable closing and latching speeds plus an adjustable backcheck to protect the door, frame, and closer from violent openings.

The optional delayed action feature provides extended open time to facilitate passage and help meet A.D.A. requirements in healthcare facilities, hospitals, nursing homes, and other public buildings (ADA-compliant delayed action door closer applications).

PR40 Series closers have a compact body and use a common 9-1/16" x 3/4" (230 x 19 mm) mounting hole template, making them ideal for both new construction and retrofit applications. Each closer includes parallel arm brackets and mounting hardware for regular, top jamb, or parallel arm installations. Optional accessories such as drop plates and hold-open arms are available for specialized installations.

Product Warning:

Closers adjusted to comply with A.D.A. specified opening forces may not provide sufficient spring power to control and close certain doors under varying site conditions or with larger door sizes. Verify performance on-site.

DC5CVR covers are compatible with PR42; note the DC5CVR is an attachment cover (not a replacement housing) and adheres to the closer with double-sided tape.

Order PR42A today or contact CRL Customer Service for installation support and pricing.
