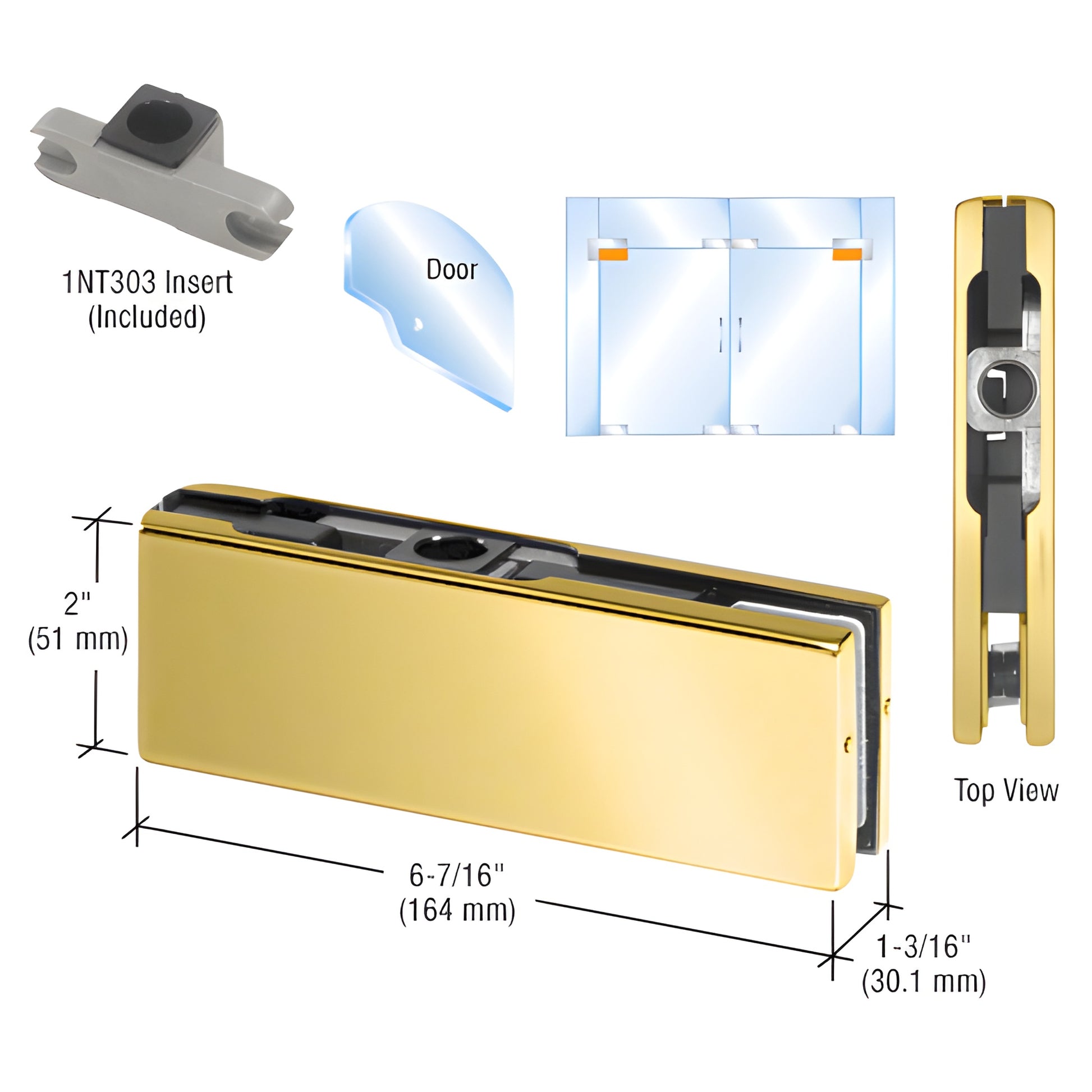

CRL Brass Top Door Patch Fitting with 1NT303 Insert
CRL Brass Top Door Patch Fitting with 1NT303 Insert
Regular price
$99.14 CAD
Regular price
Sale price
$99.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH20ABR
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Polished Brass |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height 2 in. | (51 mm) |
| Insert Type | 1NT303 |
| Length 6-7/16 in. | (164 mm) |
| Maximum Door Height 102 in. | (2591 mm) |
| Maximum Panel Weight 194 lbs. | (88 kg) |
| Maximum Width 42 in. | (1067 mm) |
| Pivot Setback | 2-3/4 |
| Type | Top |
| With | Insert Yes |
Overview
The CRL Top Gate Patch Fittings are expertly designed for 3/8" or 1/2" (10 or 12 mm) glass and can be used with or without locks.
Featuring a 2-3/4" (70 mm) pivot setback, these fittings require monolithic tempered glass and fit seamlessly into the upper corner of a gate's glass panel, complete with a brushed stainless steel finish, instructions, and a glass cut-out template.
For optimal performance, adhere to the guidelines of a maximum height of 102" (2.59 m), weight of 194 lbs.
(88 kg), and width of 42" (1.07 m); if exceeded, full door rails are recommended.
Note that these fittings are not compatible with PH42L, PH42R, PH43L, or PH43R Transom Patch Fittings and should not be used with laminated glass.
Featuring a 2-3/4" (70 mm) pivot setback, these fittings require monolithic tempered glass and fit seamlessly into the upper corner of a gate's glass panel, complete with a brushed stainless steel finish, instructions, and a glass cut-out template.
For optimal performance, adhere to the guidelines of a maximum height of 102" (2.59 m), weight of 194 lbs.
(88 kg), and width of 42" (1.07 m); if exceeded, full door rails are recommended.
Note that these fittings are not compatible with PH42L, PH42R, PH43L, or PH43R Transom Patch Fittings and should not be used with laminated glass.
Specifications
Templates
CAD Drawings - pdf
CAD Drawings - dwg
